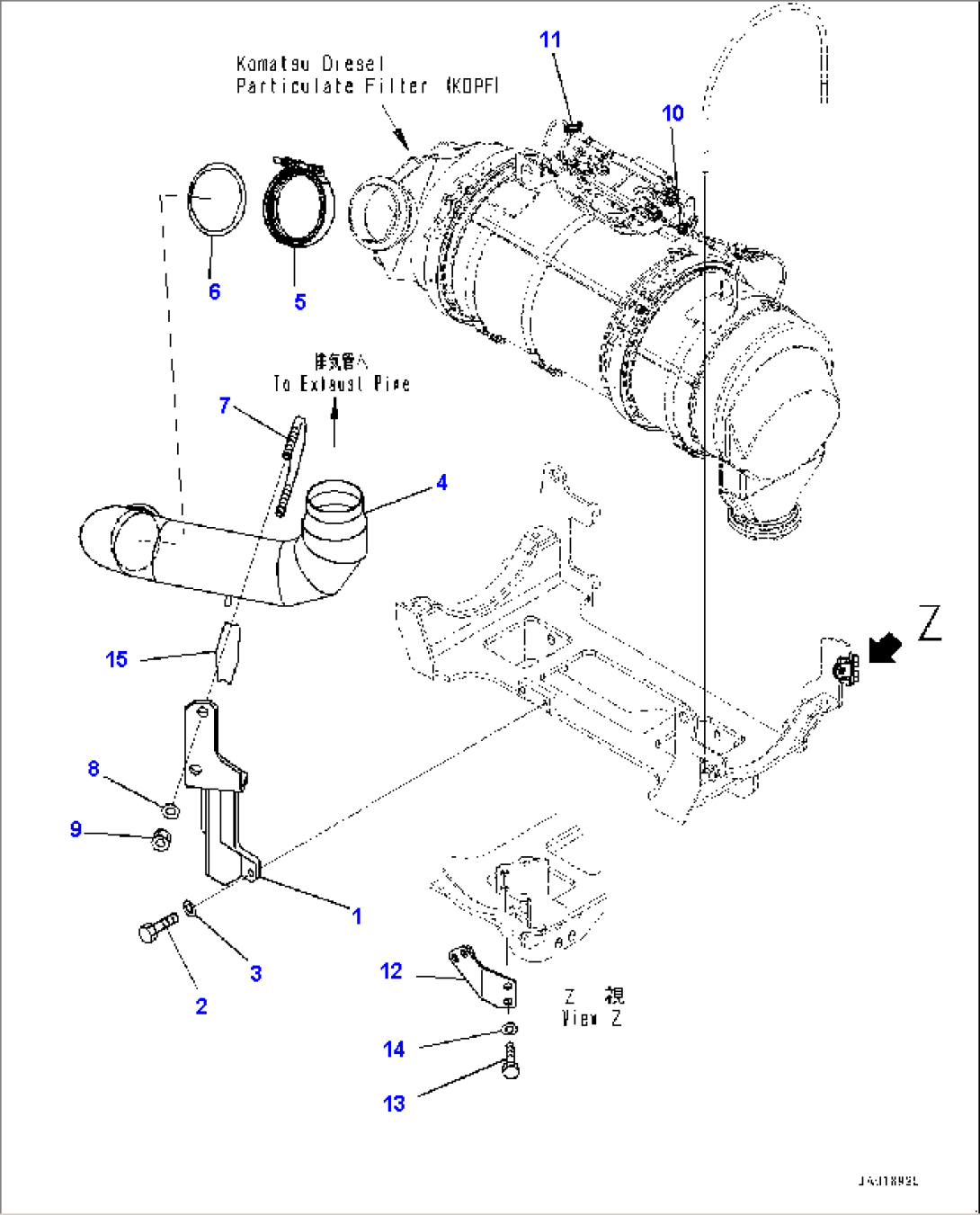

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-02-51131 | Bracket | 80094- | |
| 2 | 01010-81025 | Bolt | 80001- | |
| 3 | 01643-31032 | Washer | 80001- | |
| 4 | 419-02-51120 | Tube | 80001- | |
| 5 | 6520-91-1020 | Clamp | 80001- | |
| 6 | 6520-91-1030 | Gasket | 80001- | |
| 7 | 07283-31087 | Clip, Pipe | 80094- | |
| 8 | 01643-31232 | Washer | 80094- | |
| 9 | 01597-01211 | Nut | 80094- | |
| 10 | 6218-81-8470 | Band | 80001- | |
| 11 | 6218-81-8470 | Band | 80001- | |
| 12 | 418-01-51390 | Plate | 80942- | |
| 13 | 01010-81025 | Bolt | 80001- | |
| 14 | 01643-31032 | Washer | 80001- | |
| 15 | 421-02-51150 | Seat | 80094- |
