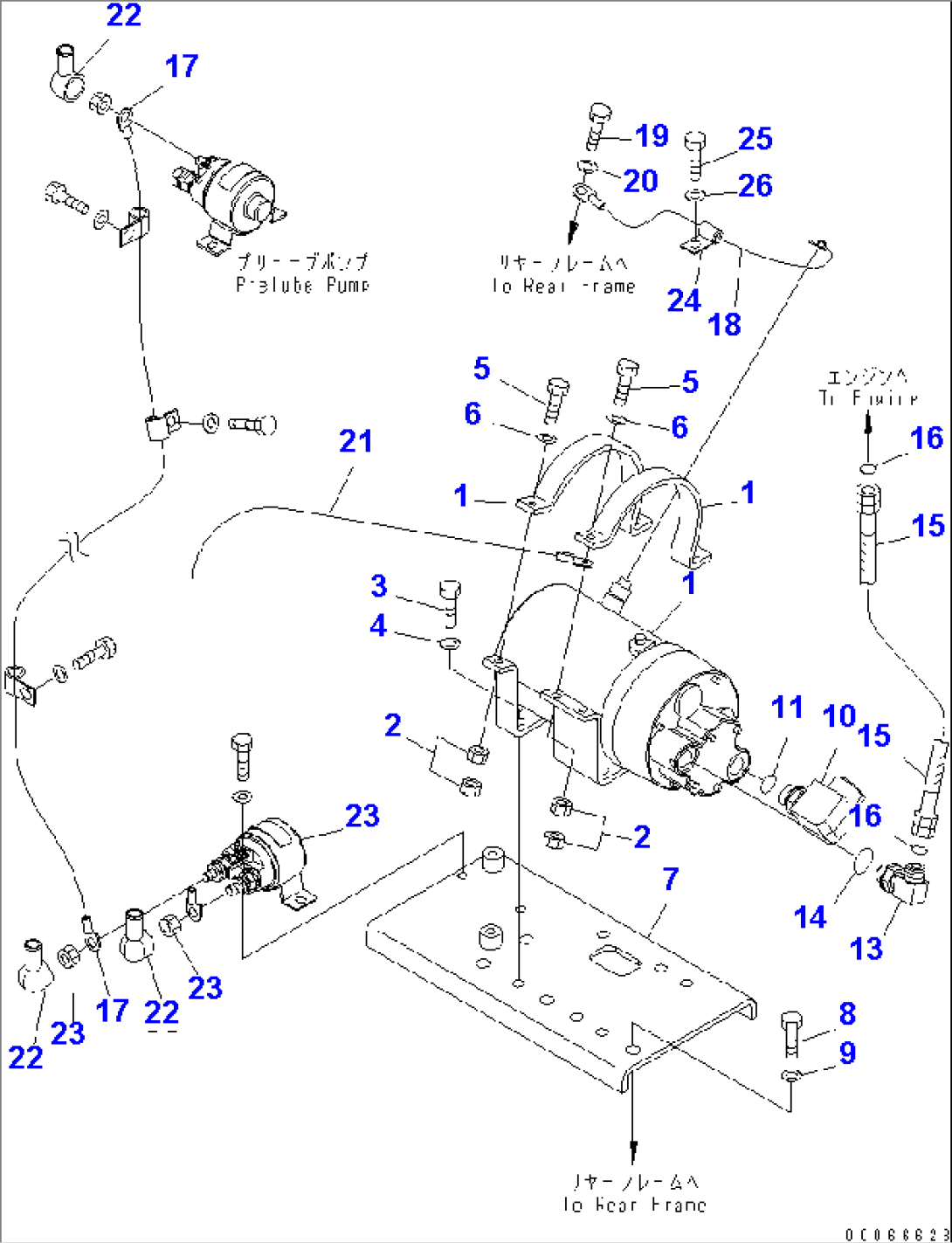

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-815-9510 | PRE-LUBE PUMP ASS'Y | 60001- | |
| 2 | 01580-10806 | NUT | 60001- | |
| 3 | 01010-81035 | BOLT | 60001- | |
| 4 | 01643-31032 | WASHER | 60001- | |
| 5 | 01010-80835 | BOLT | 60001- | |
| 6 | 01643-30823 | WASHER | 60001- | |
| 7 | 427-01-21531 | BRACKET | 60001- | |
| 8 | 01010-81230 | BOLT | 60001- | |
| 9 | 01643-31232 | WASHER | 60001- | |
| 10 | 198-01-61261 | ELBOW | 60001- | |
| 11 | 6216-74-6220 | O-RING | 60001- | |
| 13 | 56B-61-13740 | ELBOW | 60001- | |
| 14 | 6735-21-4160 | O-RING | 60002- | |
| 15 | 02762-00406 | HOSE | 60002- | |
| 16 | 02896-11012 | O-RING | 60001- | |
| 17 | 427-01-21520 | WIRING HARNESS | 60001- | |
| 18 | 427-01-21640 | WIRING HARNESS | 60001- | |
| 19 | 01010-81020 | BOLT | 60001- | |
| 20 | 01643-31032 | WASHER | 60001- | |
| 21 | 427-01-21550 | WIRING HARNESS | 60001- | |
| 22 | 08038-02027 | CAP | 60001- | |
| 23 | 600-815-7510 | SWITCH,HEATER | 60001- | |
| 24 | 04434-50810 | CLIP | 60001- | |
| 25 | 01010-80820 | BOLT | 60002- | |
| 26 | 01643-30823 | WASHER | 60002- |
