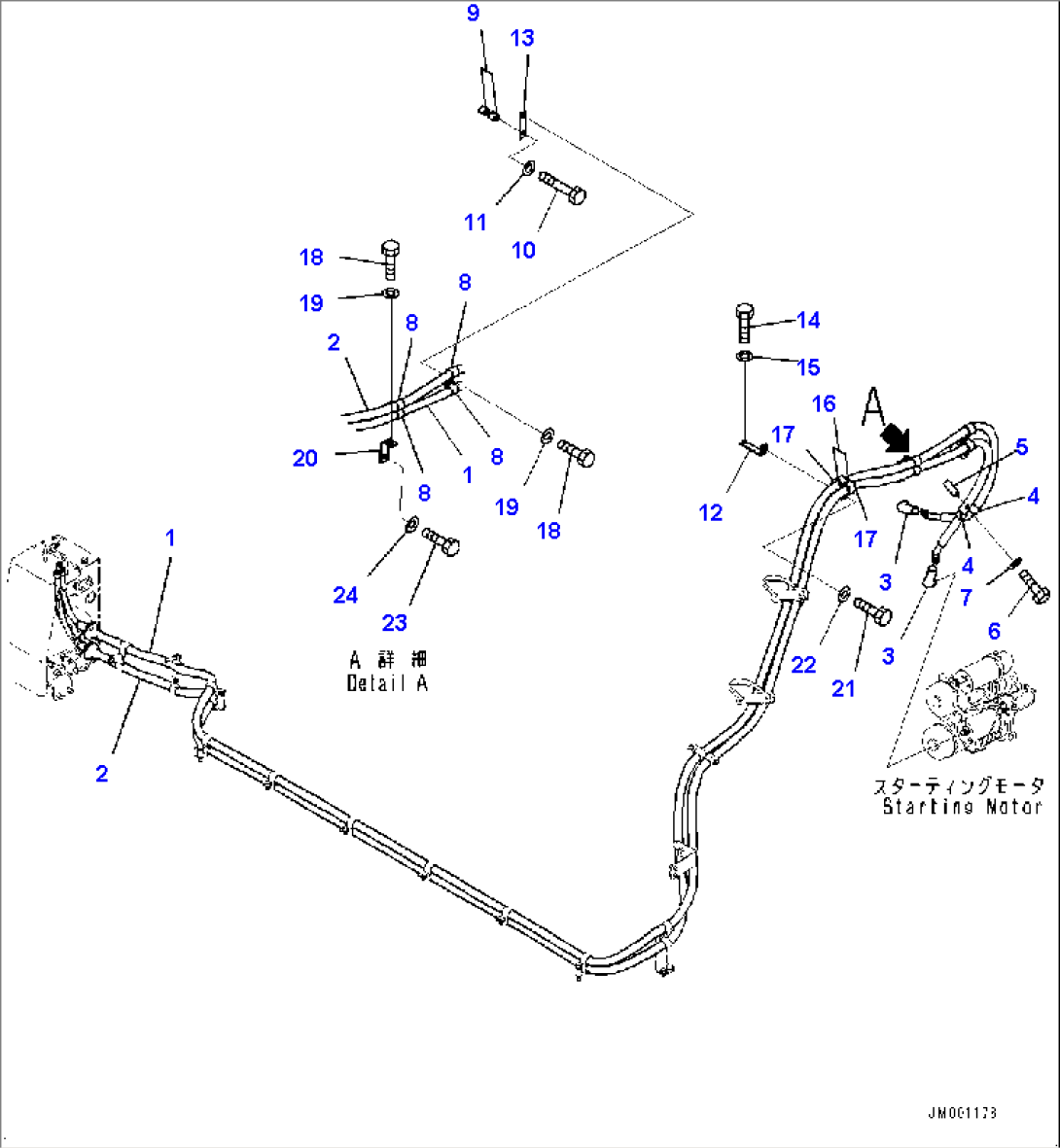

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-85411 | Cable | 9226- | |
| 1 | 561-06-85410 | Cable | 8832-9225 | |
| 2 | 561-06-85420 | Cable | 8832- | |
| 3 | 08038-00035 | Cap, Terminal | 8832- | |
| 4 | 04434-52711 | Clip | 8832- | |
| 5 | 6164-91-6290 | Spacer | 8832- | |
| 6 | 01010-81075 | Bolt | 8832- | |
| 7 | 01643-31032 | Washer | 8832- | |
| 8 | 04434-52712 | Clip | 8832- | |
| 9 | 6131-22-3750 | Boss | 8832- | |
| 10 | 01010-81070 | Bolt | 8832- | |
| 11 | 01643-31032 | Washer | 8832- | |
| 12 | 203-977-4120 | Bracket | 8832- | |
| 13 | 561-95-83360 | Bracket | 8832- | |
| 14 | 01010-81035 | Bolt | 8832- | |
| 15 | 01643-31032 | Washer | 8832- | |
| 16 | 04434-53411 | Clip | 8832- | |
| 17 | 07095-20627 | Cushion | 8832- | |
| 18 | 01010-81025 | Bolt | 8832- | |
| 19 | 01643-31032 | Washer | 8832- | |
| 20 | 20Y-54-12710 | Bracket | 8832- | |
| 21 | 01010-81225 | Bolt | 9230- | |
| 21 | 01010-81025 | Bolt | 8832-9229 | |
| 22 | 01643-31232 | Washer | 9230- | |
| 22 | 01643-31032 | Washer | 8832-9229 | |
| 23 | 01010-81220 | Bolt | 8832- | |
| 24 | 01643-31232 | Washer | 8832- |
