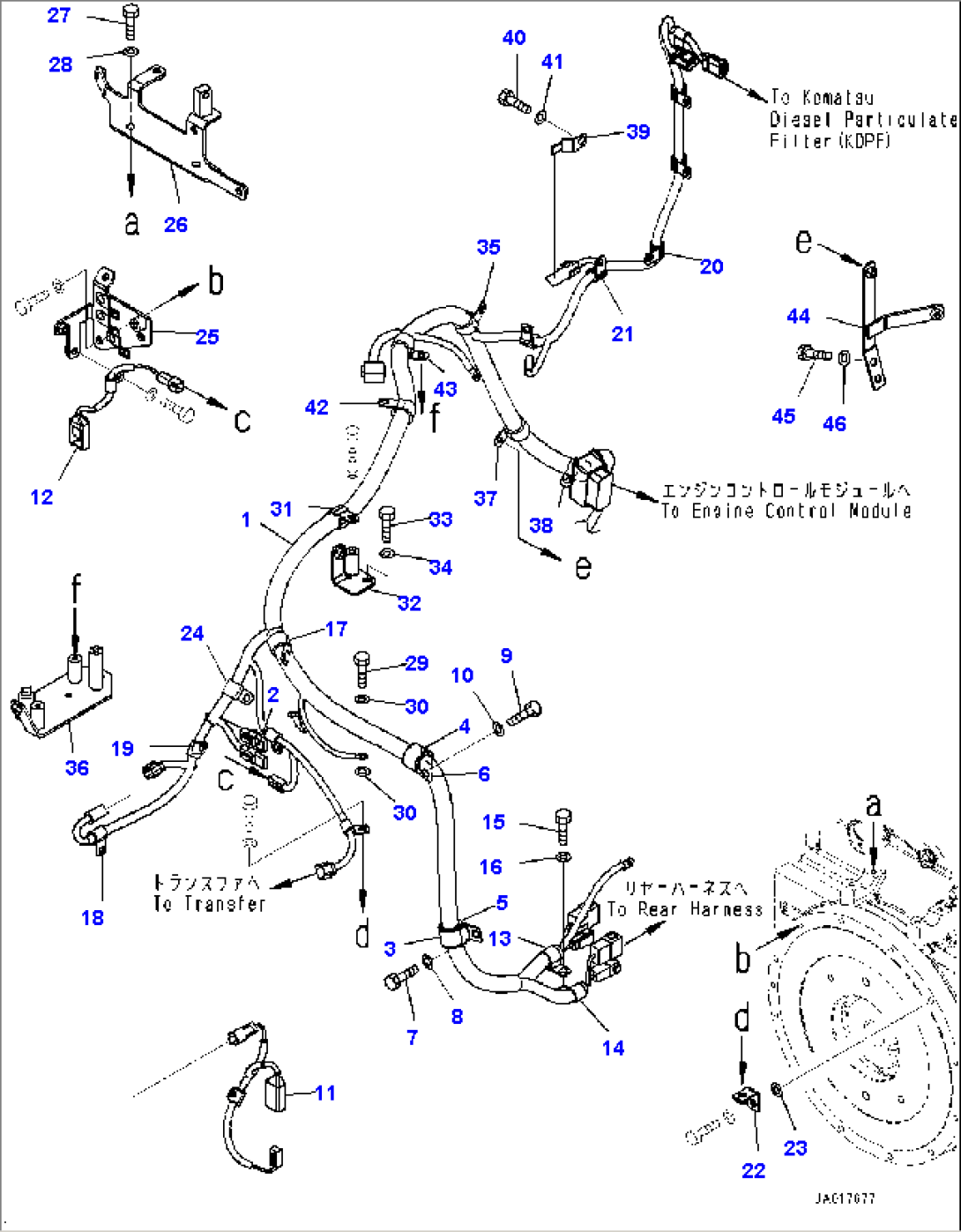

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-06-53111 | Wiring Harness | 80465- | |
| 1 | 419-06-53110 | Wiring Harness | 80001-80464 | |
| 2 | 21J-06-13661 | Diode | 80001- | |
| 3 | 04434-53412 | Clip | 80001- | |
| 4 | 04434-53412 | Clip | 80001- | |
| 5 | 07095-20627 | Cushion | 80001- | |
| 6 | 07095-20627 | Cushion | 80001- | |
| 7 | 01010-81020 | Bolt | 80001- | |
| 8 | 01643-31032 | Washer | 80001- | |
| 9 | 01010-81020 | Bolt | 80001- | |
| 10 | 01643-31032 | Washer | 80001- | |
| 11 | 419-06-52340 | Wiring Harness | 80001- | |
| 12 | 419-06-52330 | Wiring Harness | 80001- | |
| 13 | 04434-52312 | Clip | 80001- | |
| 14 | 04434-51912 | Clip | 80001- | |
| 15 | 01010-81025 | Bolt | 80001- | |
| 16 | 01643-31032 | Washer | 80001- | |
| 17 | 600-051-2260 | Clip | 80001- | |
| 18 | 600-051-2140 | Clip | 80001- | |
| 19 | 600-051-2140 | Clip | 80001- | |
| 20 | 600-051-2140 | Clip | 80001- | |
| 21 | 600-051-2140 | Clip | 80001- | |
| 22 | 42A-16-11210 | Plate | 80001- | |
| 23 | 01643-31032 | Washer | 80001- | |
| 24 | 600-051-2180 | Clip | 80001- | |
| 25 | 419-06-51320 | Bracket | 80001- | |
| 26 | 418-06-52510 | Bracket | 80001- | |
| 27 | 01010-80820 | Bolt | 80001- | |
| 28 | 01643-30823 | Washer | 80001- | |
| 29 | 01010-80820 | Bolt | 80001- | |
| 30 | 01643-50823 | Washer | 80001- | |
| 31 | 600-051-2260 | Clip | 80001- | |
| 32 | 419-06-52540 | Bracket | 80001- | |
| 33 | 01010-81235 | Bolt | 80001- | |
| 34 | 01643-31232 | Washer | 80001- | |
| 35 | 600-051-2260 | Clip | 80001- | |
| 36 | 419-06-52571 | Bracket | 80001- | |
| 37 | 600-051-2260 | Clip | 80001- | |
| 38 | 600-051-2260 | Clip | 80001- | |
| 39 | 08193-20012 | Clip | 80001- | |
| 40 | 01010-81020 | Bolt | 80001- | |
| 41 | 01643-31032 | Washer | 80001- | |
| 42 | 600-051-2260 | Clip | 80001- | |
| 43 | 600-051-2260 | Clip | 80001- | |
| 44 | 419-06-58560 | Bracket | 80001- | |
| 45 | 01010-81030 | Bolt | 80001- | |
| 46 | 01643-31032 | Washer | 80001- |
