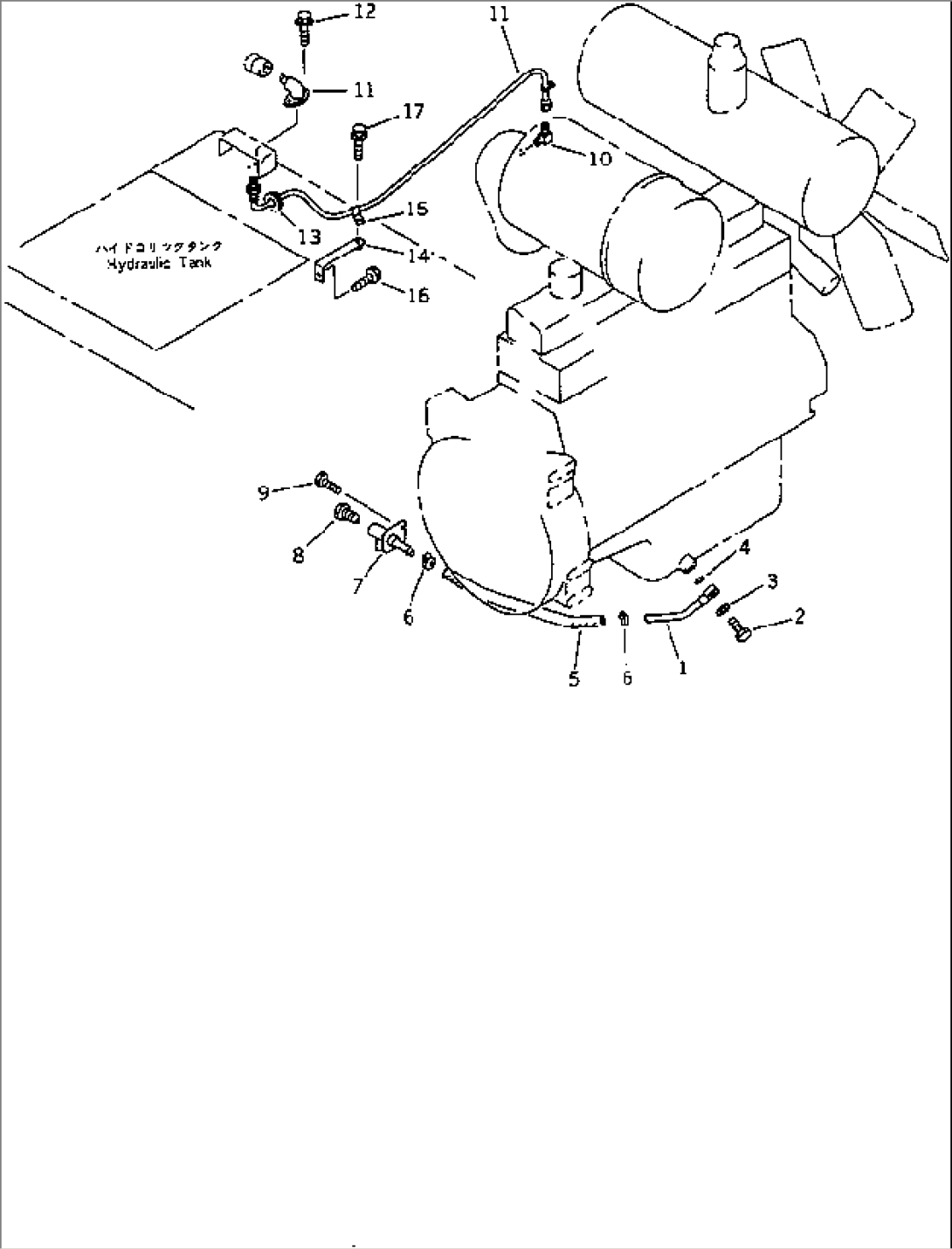

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-01-11231 | TUBE | 10001- | |
| 2 | 424-01-11250 | JOINT | 10001- | |
| 3 | 07005-02416 | GASKET | 10001- | |
| 4 | 07002-02434 | O-RING | 10001- | |
| 5 | 424-01-11140 | HOSE | 10001- | |
| 6 | 07281-00359 | CLAMP | 10001- | |
| 7 | 424-01-11120 | TUBE | 10001- | |
| 8 | 424-01-11110 | PLUG | 10001- | |
| 9 | 01010-51030 | BOLT | 10001- | |
| 10 | 08671-50721 | ELBOW | 20001- | |
| 11 | 08671-01080 | HOSE | 20001- | |
| 12 | 01435-00614 | BOLT | 20001- | |
| 13 | 08037-02512 | GROMMET | 20001- | |
| 14 | 427-04-11130 | PLATE | 20001- | |
| 15 | 08036-01414 | CLIP | 20001- | |
| 16 | 01435-01220 | BOLT | 20001- | |
| 17 | 01435-01020 | BOLT | 20001- |
