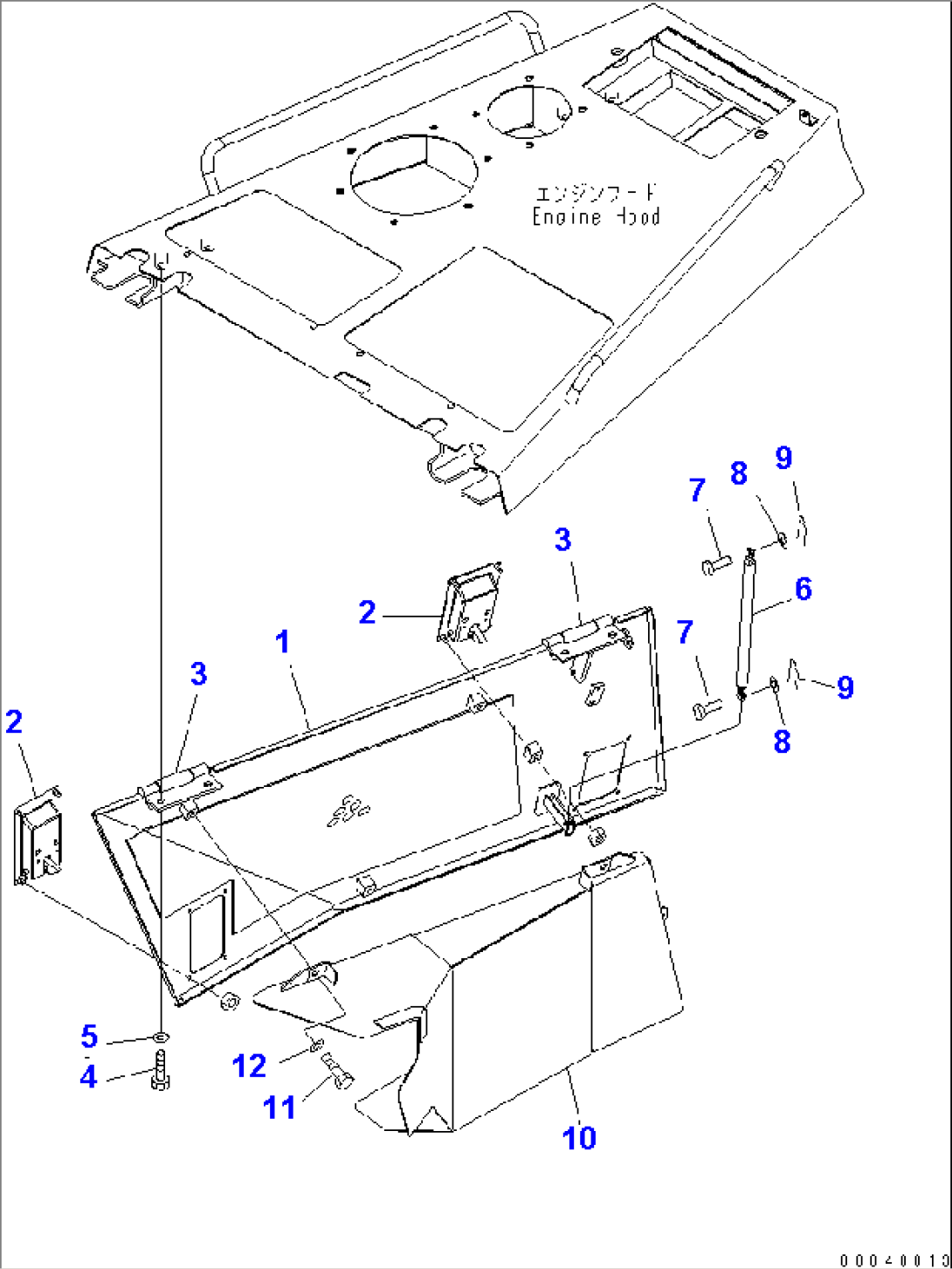

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-54-77490 | COVER (R.H) | 11001- | |
| 2 | 198-54-55990 | LOCK ASS'Y | 11001- | |
| 3 | 198-54-72510 | HINGE | 11001- | |
| 4 | 01010-81230 | BOLT | 11001- | |
| 5 | 01643-31232 | WASHER | 11001- | |
| 6 | 14X-54-12780 | DAMPER | 11001- | |
| 7 | 04205-10828 | PIN | 11001- | |
| 8 | 01641-20812 | WASHER | 11001- | |
| 9 | 04052-10833 | PIN | 11001- | |
| 10 | 154-54-77442 | DUCT | 11010- | |
| 10 | 154-54-77441 | DUCT(R.H) | 11001-11009 | |
| 11 | 01010-81230 | BOLT | 11001- | |
| 12 | 01643-31232 | WASHER | 11001- |
