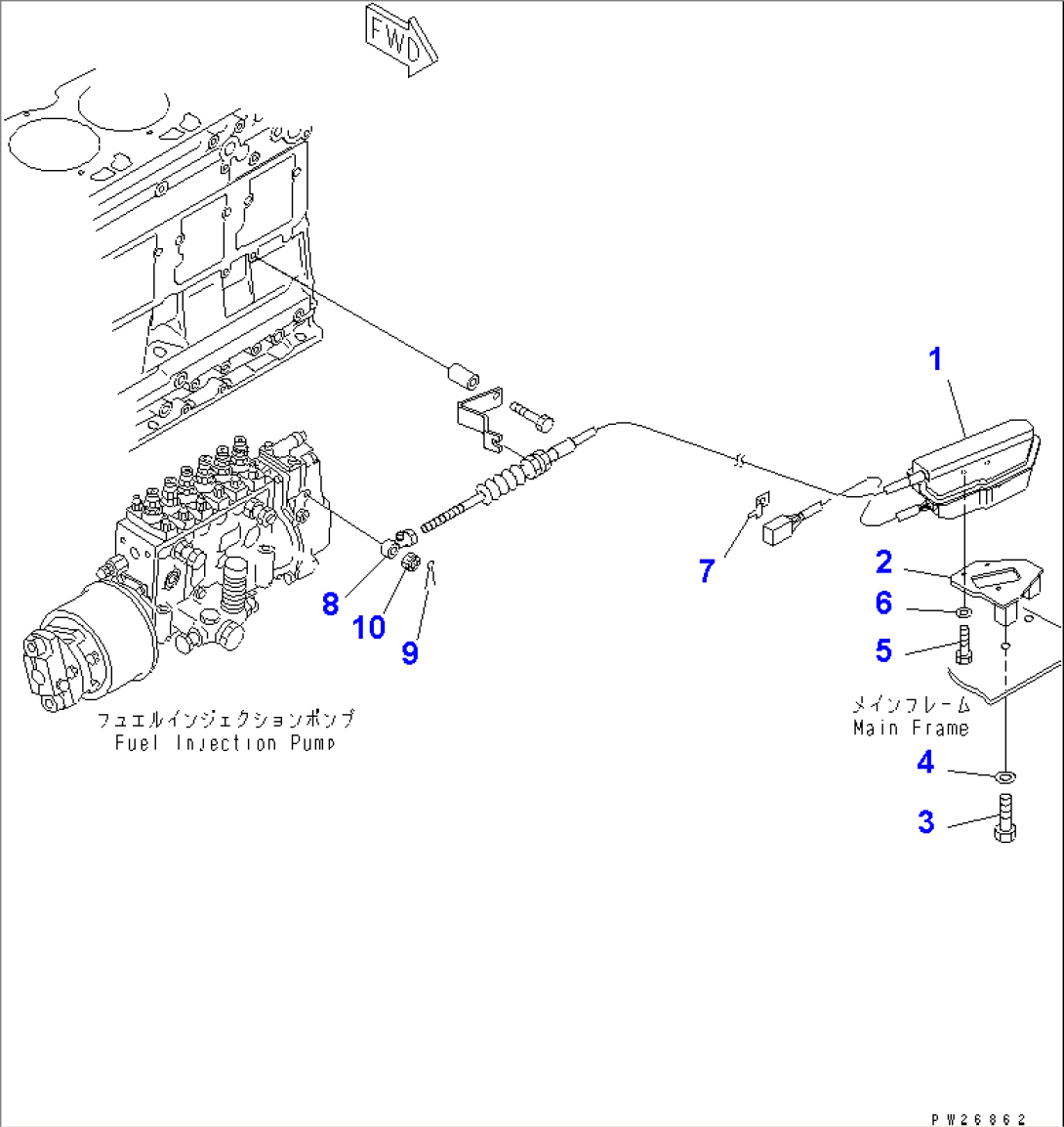

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 600-815-7660 | MOTOR ASS'Y | 1002- | |
| 2 | 8248-43-1410 | BRACKET | 1002- | |
| 3 | 01010-81230 | BOLT | 1002- | |
| 4 | 01643-31232 | WASHER | 1002- | |
| 5 | 01010-80620 | BOLT | 1002- | |
| 6 | 01643-30623 | WASHER | 1002- | |
| 7 | 08053-00912 | CLIP | 1002- | |
| 8 | 04250-40639 | END | 1002- | |
| 9 | 04050-11212 | PIN | 1002- | |
| 10 | 01590-30607 | NUT | 1002- |
