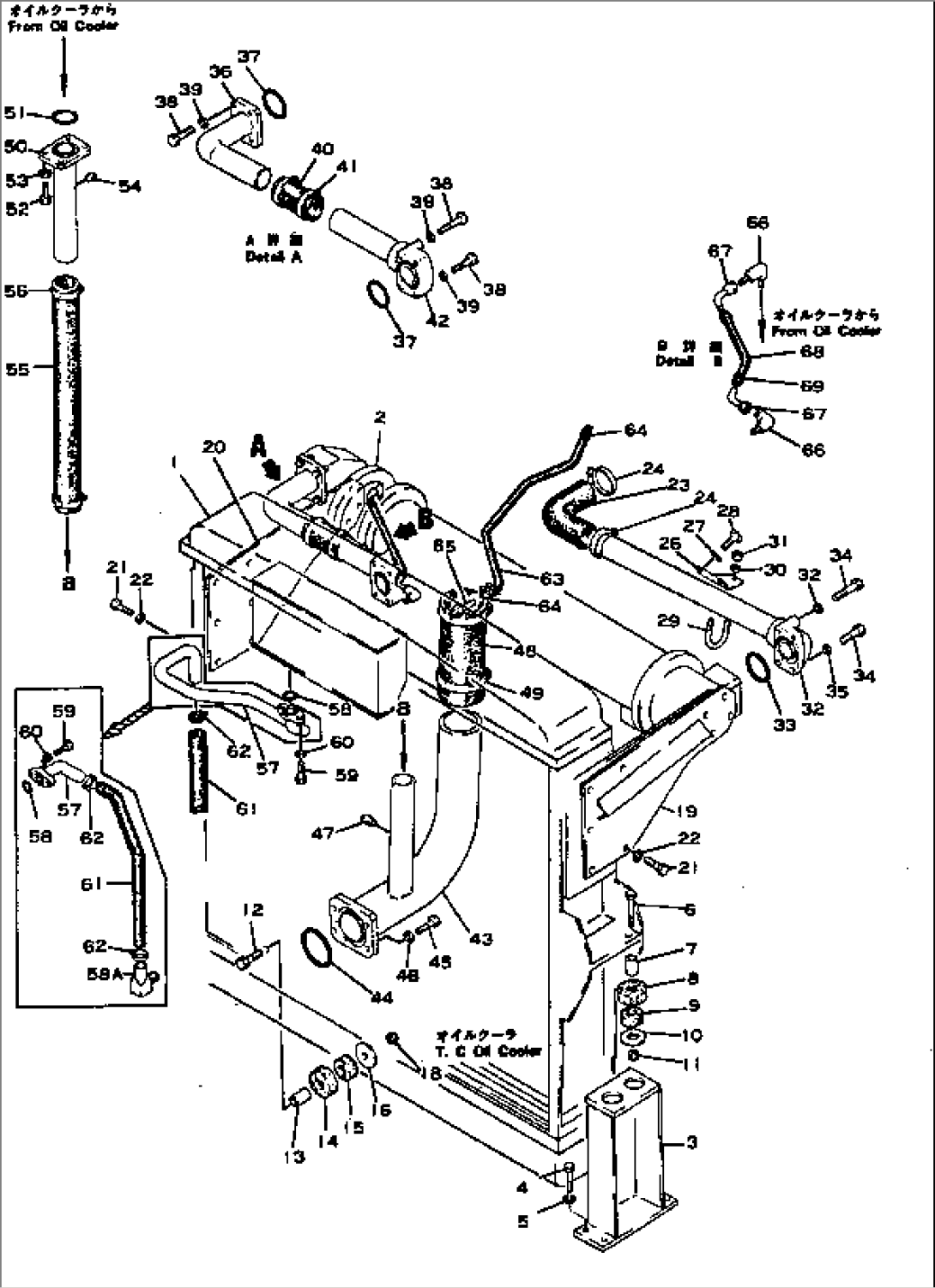

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-13-11006 | RADIATOR ASS'Y | 1645-2000 | |
| 1 | \0\566-03-11005 | RADIATOR ASS'Y | 1381-1644 | |
| 1 | \0\566-03-11004 | RADIATOR ASS'Y | 1157-1380 | |
| 2 | 566-03-13004 | OIL COOLER ASS'Y | 1005-@ | |
| 2 | \0\566-03-13003 | OIL COOLER ASS'Y | 1005-1380 | |
| 3 | 566-03-11312 | SUPPORT | 1157-2000 | |
| 4 | 01010-51445 | BOLT | 1005-@ | |
| 5 | 01602-21442 | WASHER | 1005-@ | |
| 6 | 01010-51695 | BOLT | 1157-2000 | |
| 7 | 565-54-12830 | COLLAR | 1157-2000 | |
| 8 | 565-54-12820 | CUSHION | 1157-2000 | |
| 9 | 565-54-12810 | CUSHION | 1157-2000 | |
| 10 | 565-54-12841 | WASHER | 1157-@ | |
| 11 | 01598-01617 | NUT | 1157-2000 | |
| 12 | 01010-51695 | BOLT | 1157-@ | |
| 13 | 565-54-12830 | COLLAR | 1157-2000 | |
| 14 | 565-54-12820 | CUSHION | 1157-2000 | |
| 15 | 565-54-12810 | CUSHION | 1157-2000 | |
| 16 | 565-54-12841 | WASHER | 1157-@ | |
| 18 | 01598-01617 | NUT | 1157-2000 | |
| 19 | 566-03-13214 | STAY,L.H. | 1157-2000 | |
| 20 | 566-03-13224 | STAY,R.H. | 1157-2000 | |
| 21 | 01010-51225 | BOLT | 1005-@ | |
| 22 | 01602-21236 | WASHER | 1005-@ | |
| 23 | 566-03-12391 | HOSE | 1157-2000 | |
| 24 | 07281-10809 | CLAMP | 1185-@ | |
| 24 | \0\07281-00809 | CLAMP | 1185-1409 | |
| 26 | 566-03-12341 | PLATE | 1005-@ | |
| 27 | 01602-21236 | WASHER | 1005-@ | |
| 28 | 01010-51225 | BOLT | 1005-@ | |
| 29 | 07283-16155 | CLIP | 1005-@ | |
| 29 | \0\07283-06155 | CLIP | 1005-2000 | |
| 30 | 01643-31032 | WASHER | 1005-@ | |
| 31 | 01599-01011 | NUT | 1005-@ | |
| 32 | 566-03-12422 | TUBE | 1157-@ | |
| 33 | 07000-02070 | O-RING | 1157-@ | |
| 34 | 01010-51260 | BOLT | 1157-@ | |
| 34A | 01010-51275 | BOLT | 1157-@ | |
| 35 | 01602-21236 | WASHER | 1005-@ | |
| 36 | 566-03-12432 | TUBE | 1157-2000 | |
| 37 | 07000-02075 | O-RING | 1005-@ | |
| 38 | 01010-51235 | BOLT | 1005-2000 | |
| 39 | 01602-21236 | WASHER | 1005-@ | |
| 40 | 566-03-12370 | HOSE | 1005-2000 | |
| 41 | 07281-10809 | CLAMP | 1410-2000 | |
| 41 | \0\07281-00809 | CLAMP | 1185-1409 | |
| 42 | 566-03-12442 | TUBE | 1157-2000 | |
| 43 | 566-03-12461 | TUBE | 1157-2000 | |
| 44 | 07000-02100 | O-RING | 1005-@ | |
| 45 | 01010-51440 | BOLT | 1005-@ | |
| 46 | 01602-21442 | WASHER | 1005-@ | |
| 47 | 07042-00108 | PLUG | 1005-@ | |
| 48 | 566-03-12361 | HOSE | 1410-2000 | |
| 48 | \0\566-03-12360 | HOSE | 1157-1409 | |
| 49 | 07281-11279 | CLAMP | 1410-2000 | |
| 49 | \0\07281-01279 | CLAMP | 1157-1409 | |
| 50 | 566-03-12330 | TUBE | 1005-@ | |
| 51 | 07000-02075 | O-RING | 1005-@ | |
| 52 | 01010-51235 | BOLT | 1005-@ | |
| 53 | 01602-21236 | WASHER | 1005-@ | |
| 54 | 07042-00415 | PLUG | 1005-@ | |
| 55 | 566-03-12380 | HOSE | 1005-2000 | |
| 56 | 07281-10809 | CLAMP | 1410-@ | |
| 56 | \0\07281-00809 | CLAMP | 1157-1409 | |
| 57 | 566-03-12512 | TUBE | 1157-@ | |
| 58 | 07000-03028 | O-RING | 1005-@ | |
| 58A | 568-03-22270 | ELBOW | 1157-2000 | |
| 59 | 01010-51030 | BOLT | 1005-@ | |
| 60 | 01602-21030 | WASHER | 1005-@ | |
| 61 | 566-03-12680 | HOSE | 1157-@ | |
| 62 | 07281-10489 | CLAMP | 1410-@ | |
| 62 | \0\07281-00489 | CLAMP | 1157-1409 | |
| 63 | 07260-00995 | HOSE | 1157-@ | |
| 64 | 07281-10197 | CLAMP | 1157-@ | |
| 64 | \0\07280-02023 | CLAMP | 1005-1156 | |
| 65 | 195-03-11530 | NIPPLE | 1005-@ | |
| 66 | 07217-51013 | ELBOW | 1005-2000 | |
| 67 | 566-03-12520 | TUBE | 1005-2000 | |
| 68 | 07260-00950 | HOSE | 1157-2000 | |
| 69 | 07281-10197 | CLAMP | 1157-@ | |
| 69 | \0\07280-02023 | CLAMP | 1005-1156 |
