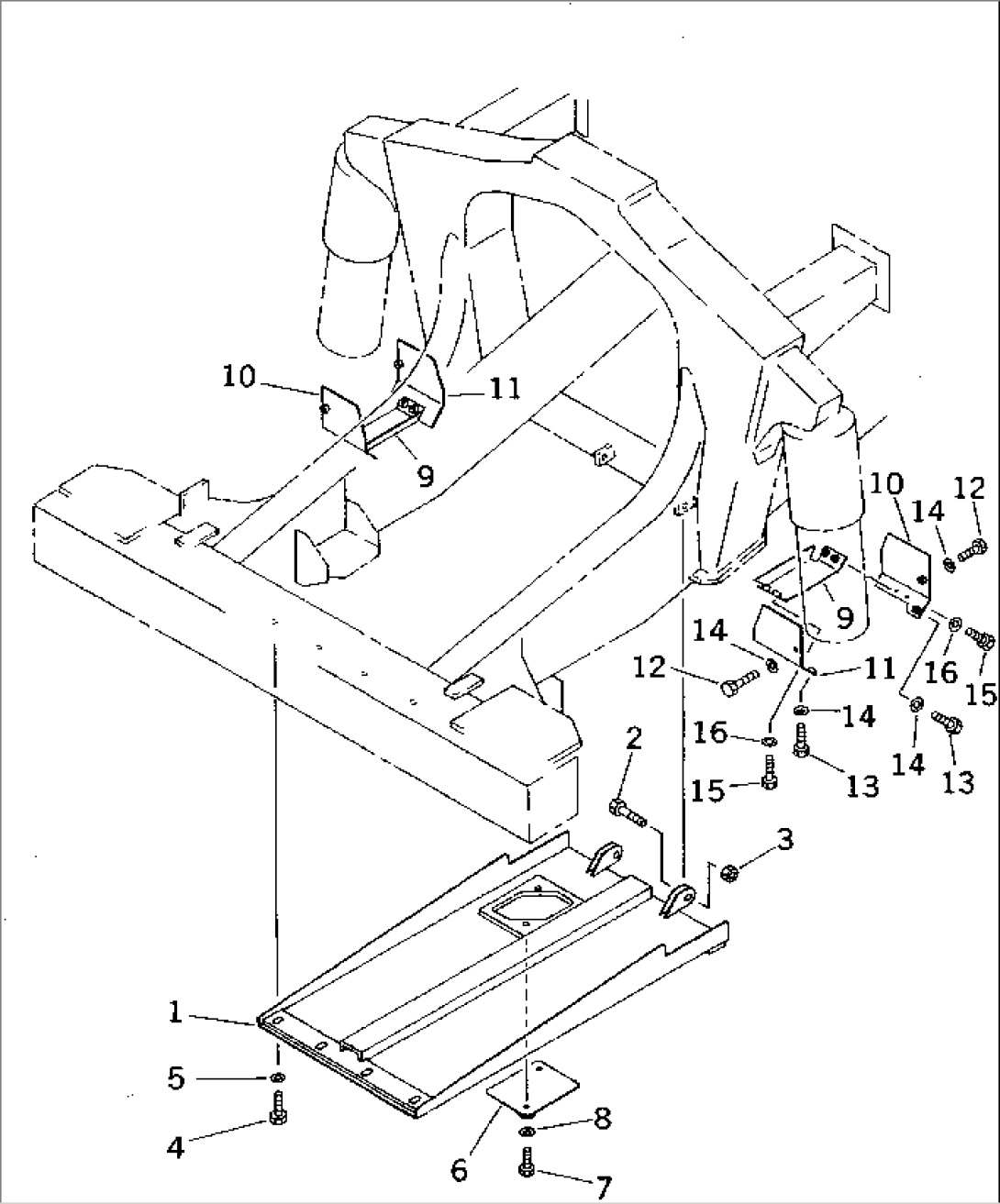

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-88-6D311 | GUARD | 5001-5999 | |
| 2 | 01010-82470 | BOLT | .-5999 | |
| 2 | \0\01010-52470 | BOLT | 5001-. | |
| 3 | 01598-12425 | NUT | 5001-5999 | |
| 4 | 01010-82050 | BOLT | .-@ | |
| 4 | \0\01010-52050 | BOLT | 5001-. | |
| 5 | 01643-32060 | WASHER | 5001-@ | |
| 6 | 566-88-6D330 | COVER | 5001-@ | |
| 7 | 01010-81640 | BOLT | .-@ | |
| 7 | \0\01010-51630 | BOLT | 5001-. | |
| 8 | 01643-31645 | WASHER | 5001-@ | |
| 9 | 566-88-6D820 | COVER | 5001-@ | |
| 10 | 566-88-6D830 | BRACKET | 5001-@ | |
| 11 | 566-88-6D840 | BRACKET | 5001-@ | |
| 12 | 01010-81465 | BOLT | .-@ | |
| 12 | \0\01010-51465 | BOLT | 5001-. | |
| 13 | 01010-81445 | BOLT | .-@ | |
| 13 | \0\01010-51445 | BOLT | 5001-. | |
| 14 | 01643-31445 | WASHER | 5001-@ | |
| 15 | 01010-81230 | BOLT | .-@ | |
| 15 | \0\01010-51230 | BOLT | 5001-. | |
| 16 | 01643-31232 | WASHER | 5001-@ |
