| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22F-01-31620 | HOSE | 16501- | |
| 2 | 07281-00709 | CLAMP | 16501- | |
| 3 | 22F-01-31611 | CHAMBER | 16501- | |
| 4 | 01010-80820 | BOLT | 16501- | |
| 5 | 01643-30823 | WASHER | 16501- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc35mr 3 s/n 15001 16594 (canopy spec.) (for north america)
- Engine related parts
- Engine unit (air cleaner related parts) (single element)(#16501 )
Поиск по каталогу

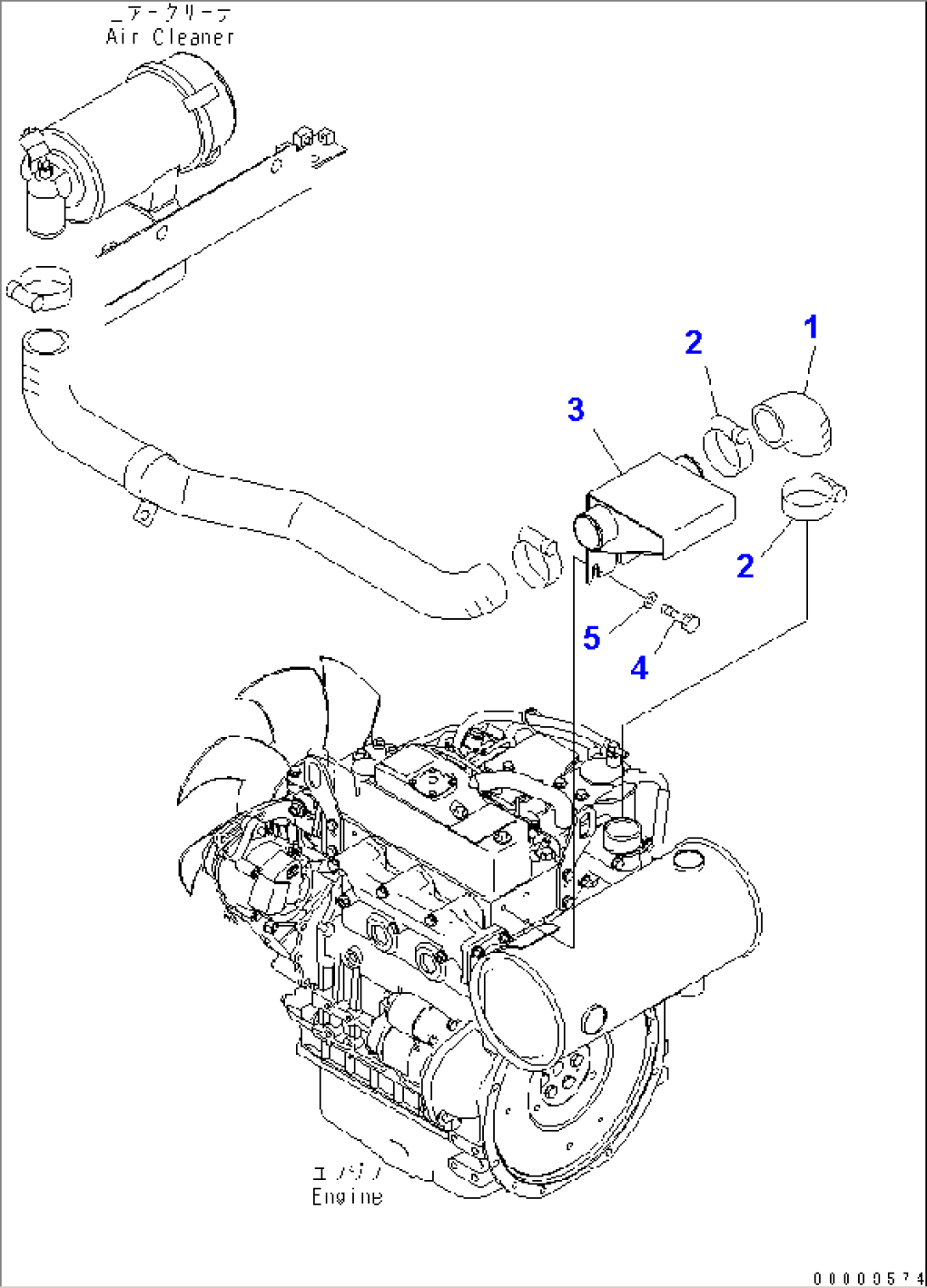

ENGINE UNIT (AIR CLEANER RELATED PARTS) (SINGLE ELEMENT)(#16501-)
