| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-01-41122 | BRACKET, R.H. | F30003- | |
| 2 | 01010-81025 | BOLT | F30003- | |
| 3 | 01643-31032 | WASHER | F30003- | |
| 4 | 22M-01-31111 | BRACKET, L.H. | F30003- | |
| 5 | 01010-81025 | BOLT | F30003- | |
| 6 | 01643-31032 | WASHER | F30003- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc55mr 3 s/n f30003 up
- Engine related parts
- Engine unit, with air conditioner, mounting
Поиск по каталогу

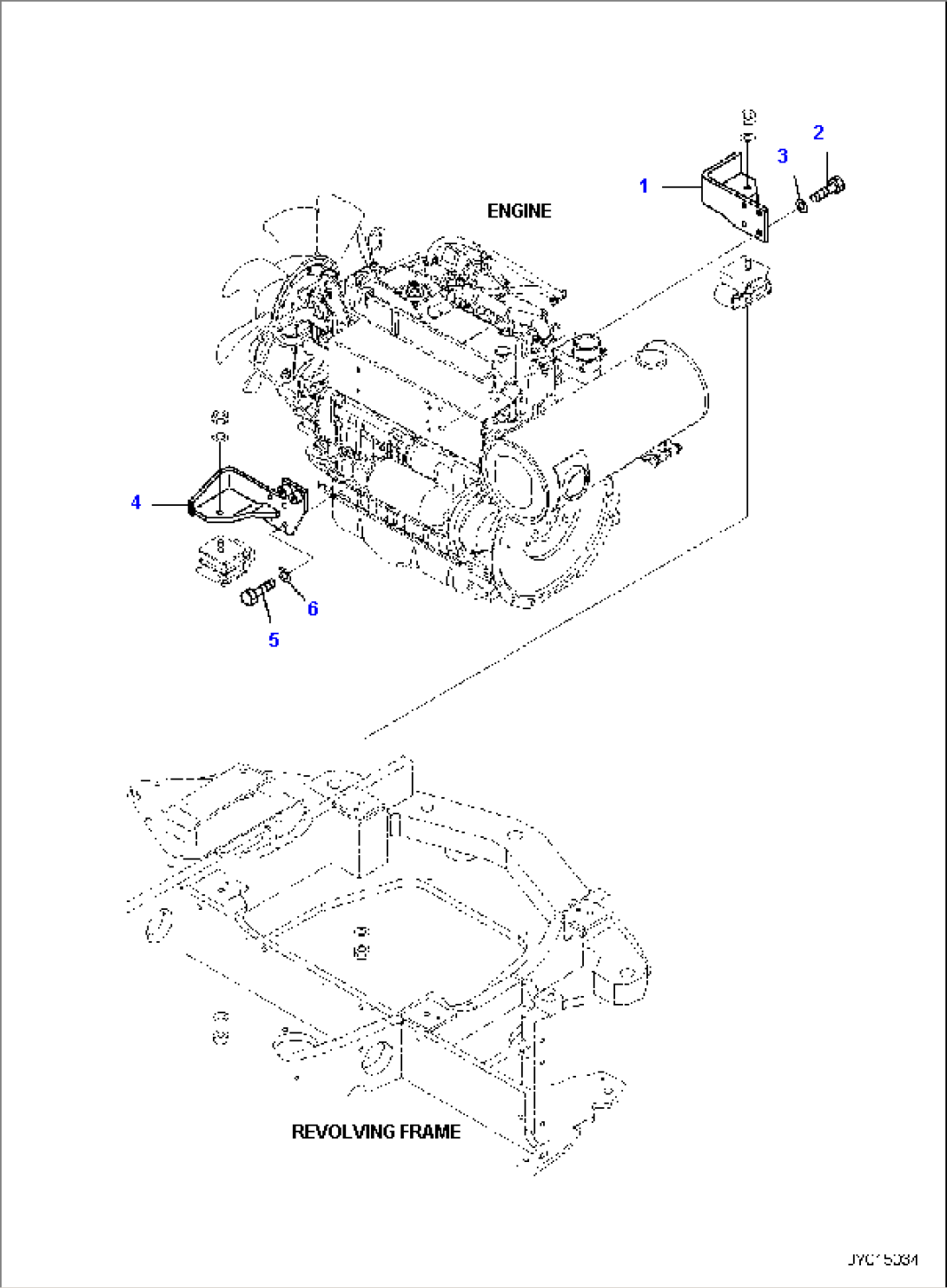

ENGINE UNIT, WITH AIR CONDITIONER, MOUNTING
