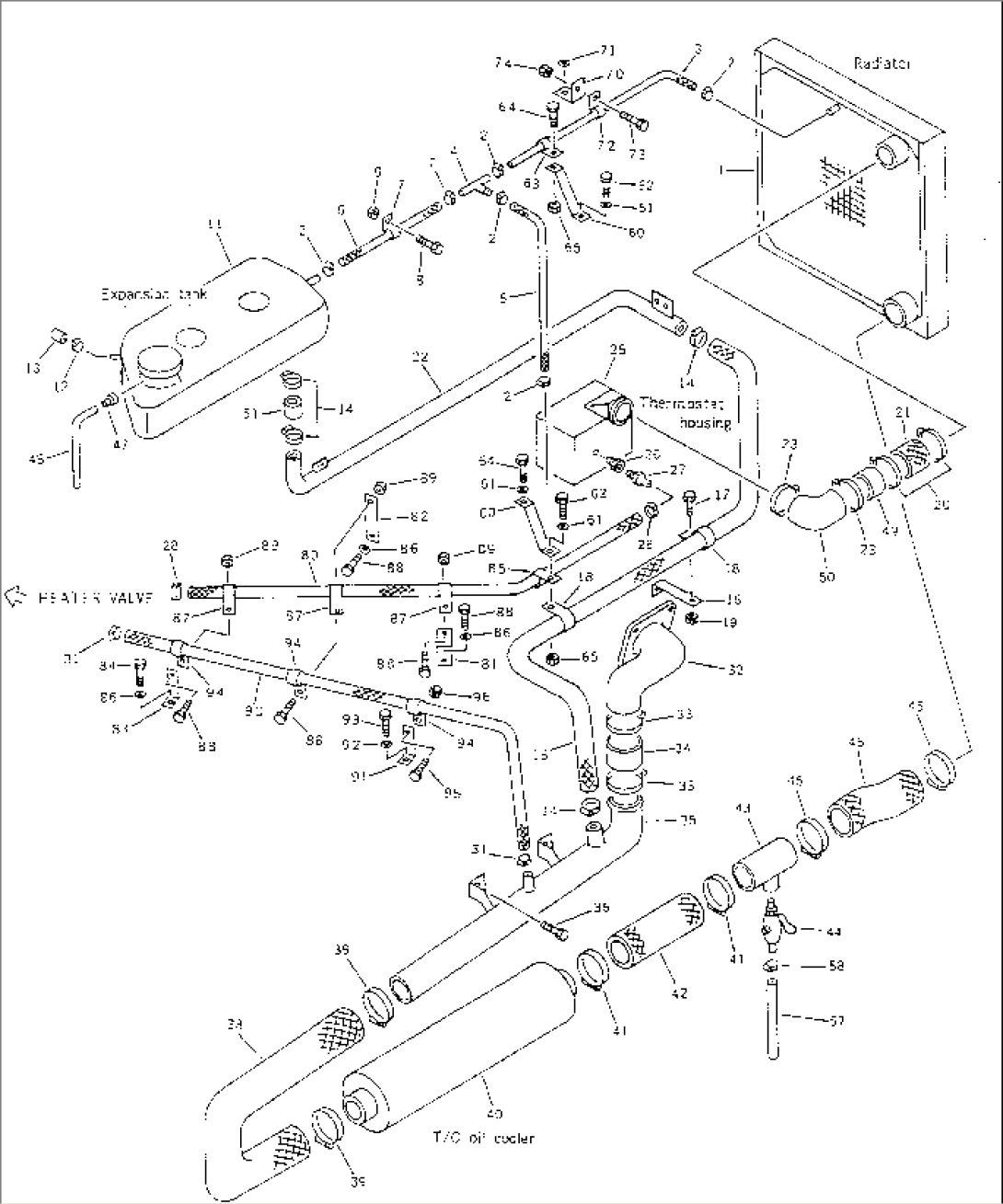

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (BW251234) | RADIATOR ASS'Y | 303001- | |
| 2 | BW065023 | CLAMP | 303001- | |
| 3 | BW046295 | HOSE | 303001- | |
| 4 | BW251125 | TUBE | 303001- | |
| 5 | BW046297 | HOSE | 303001- | |
| 6 | BW033645 | HOSE | 303001- | |
| 7 | BW065006 | CLAMP | 303001- | |
| 8 | BW061456 | BOLT,(M6X14) | 303001- | |
| 9 | BW063036 | NUT | 303001- | |
| 11 | (BW351373) | TANK,EXPANSION | 303012- | |
| 11 | (BW051589) | TANK,EXPANSION | 303001-303011 | |
| 12 | BW065023 | CLAMP | 303001- | |
| 13 | BW051599 | PLUG | 303001- | |
| 14 | BW065029 | CLAMP | 303001- | |
| 15 | BW046296 | HOSE | 303001- | |
| 16 | BW045167 | BRACKET | 303001- | |
| 17 | BW061456 | BOLT,(M6X14) | 303001- | |
| 18 | BW065012 | CLAMP | 303001- | |
| 19 | BW063036 | NUT | 303001- | |
| 20 | BW065034 | CLAMP | 303001- | |
| 21 | BW034910 | HOSE | 303001- | |
| 22 | BW022204 | TUBE | 303001- | |
| 23 | BW065034 | CLAMP | 303001- | |
| 25 | \6\ | HOUSING,THERMOSTAT (SEE ENG. FIG.0171) | 303001- | |
| 26 | BW054180 | ADJUSTER | 303001- | |
| 27 | BW041336 | NIPPLE | 303001- | |
| 28 | BW065025 | CLAMP | 303001- | |
| 31 | BW065025 | CLAMP | 303001- | |
| 32 | \6\ | CONNECTOR,(SEE ENG. FIG.0501) | 303001- | |
| 33 | BW065035 | CLAMP | 303001- | |
| 34 | BW033756 | HOSE | 303001- | |
| 35 | BW022750 | TUBE | 303001- | |
| 36 | BW061484 | BOLT,(M10X16) | 303001- | |
| 38 | BW251233 | HOSE | 303001- | |
| 39 | BW065034 | CLAMP | 303001- | |
| 40 | (BW252155) | OIL COOLER | 303001- | |
| 41 | BW065034 | CLAMP | 303001- | |
| 42 | BW251344 | HOSE | 303002- | |
| 42 | BW151715 | HOSE | 303001-303001 | |
| 43 | BW022749 | TUBE | 303001- | |
| 44 | BW051102 | COCK,DRAIN | 303001- | |
| 45 | BW065034 | CLAMP | 303001- | |
| 46 | BW251344 | HOSE | 303001- | |
| 47 | BW051595 | PLUG | 303001- | |
| 48 | BW046268 | HOSE | 303001-303011 | |
| 49 | BW045056 | HOSE | 303001- | |
| 50 | BW151717 | BEND,RUBBER | 303001- | |
| 51 | BW033706 | PIPE | 303001- | |
| 57 | BW046280 | HOSE | 303001- | |
| 58 | BW065025 | CLAMP | 303001- | |
| 60 | BW045752 | BRACKET | 303001- | |
| 61 | BW063348 | WASHER | 303001- | |
| 62 | BW061485 | BOLT,(M10X20) | 303001- | |
| 63 | BW065006 | CLAMP | 303001- | |
| 64 | BW061456 | BOLT,(M6X14) | 303001- | |
| 65 | BW063036 | NUT | 303001- | |
| 70 | BW033536 | BRACKET | 303001- | |
| 71 | BW063348 | WASHER | 303001- | |
| 72 | BW065006 | CLAMP | 303001- | |
| 73 | BW061456 | BOLT,(M6X14) | 303001- | |
| 74 | BW063036 | NUT | 303001- | |
| 80 | BW046695 | HOSE | 303001- | |
| 81 | BW033536 | BRACKET | 303001- | |
| 82 | BW045514 | BRACKET | 303001- | |
| 83 | BW045167 | BRACKET | 303001- | |
| 84 | BW061485 | BOLT,(M10X20) | 303001- | |
| 85 | BW065008 | CLAMP | 303001- | |
| 86 | BW063348 | WASHER | 303001- | |
| 87 | BW065008 | CLAMP | 303001- | |
| 88 | BW061456 | BOLT,(M6X14) | 303001- | |
| 89 | BW063036 | NUT | 303001- | |
| 90 | BW046298 | HOSE | 303001- | |
| 91 | BW045167 | BRACKET | 303001- | |
| 92 | BW063348 | WASHER | 303001- | |
| 93 | BW061484 | BOLT,(M10X16) | 303001- | |
| 94 | BW065008 | CLAMP | 303001- | |
| 95 | BW061456 | BOLT,(M6X14) | 303001- | |
| 96 | BW063036 | NUT | 303001- |
