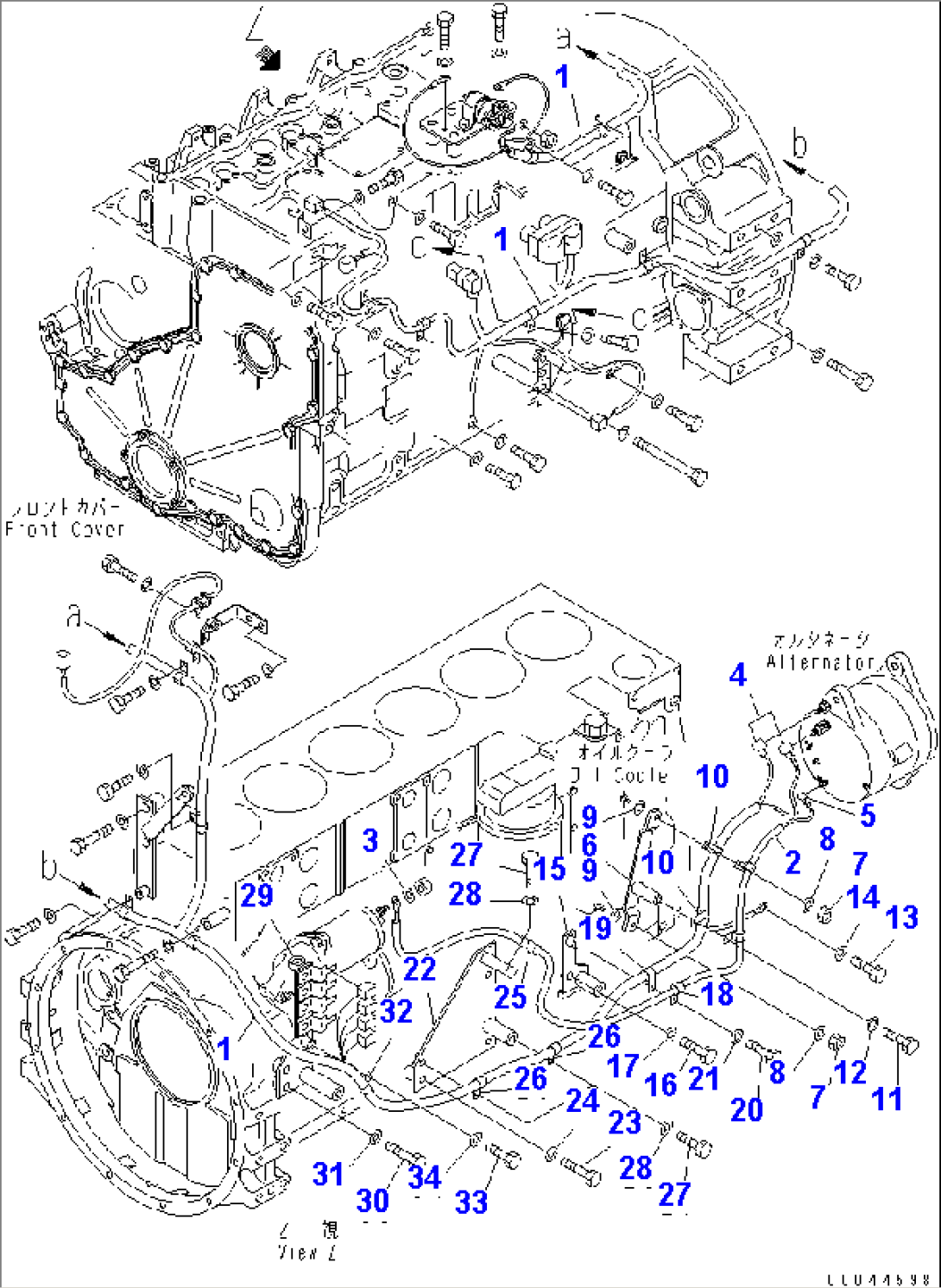

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-06-35121 | WIRING HARNESS | 69001- | |
| 1 | 21J-06-13661 | DIODE | 69001- | |
| 2 | 14X-06-35260 | CABLE | 69001- | |
| 2 | 14X-06-35660 | CABLE,(FOR 90A ALTERNATOR) | 69001- | |
| 3 | 01643-31032 | WASHER | 69001- | |
| 4 | 08038-02027 | CAP | 69001- | |
| 5 | 08038-00519 | CAP | 69001- | |
| 6 | 14X-06-35491 | BRACKET | 69001- | |
| 7 | 01580-10605 | NUT | 69001- | |
| 8 | 01640-20610 | WASHER | 69001- | |
| 9 | 01640-20716 | WASHER | 69001- | |
| 10 | 600-051-2140 | CLIP | 69001- | |
| 11 | 01010-80820 | BOLT | 69001- | |
| 12 | 01643-30823 | WASHER | 69001- | |
| 13 | 01010-80816 | BOLT | 69001- | |
| 14 | 01643-30823 | WASHER | 69001- | |
| 15 | 14X-06-35480 | BRACKET | 69001- | |
| 16 | 01010-80825 | BOLT | 69001- | |
| 17 | 01643-30823 | WASHER | 69001- | |
| 18 | 600-051-2100 | CLIP | 69001- | |
| 19 | 600-051-2140 | CLIP | 69001- | |
| 20 | 01010-80816 | BOLT | 69001- | |
| 21 | 01643-30823 | WASHER | 69001- | |
| 22 | 14X-06-35471 | BRACKET | 69729- | |
| 22 | 14X-06-35470 | BRACKET | 69001-69728 | |
| 23 | 01010-80845 | BOLT | 69001- | |
| 24 | 01643-30823 | WASHER | 69001- | |
| 25 | 600-051-2140 | CLIP | 69001- | |
| 26 | 600-051-2100 | CLIP | 69001- | |
| 27 | 01010-80816 | BOLT | 69001- | |
| 28 | 01643-30823 | WASHER | 69001- | |
| 29 | 14X-06-35311 | BRACKET | 69001- | |
| 30 | 01010-81035 | BOLT | 69001- | |
| 31 | 01643-31032 | WASHER | 69001- | |
| 32 | 600-051-2100 | CLIP | 69001- | |
| 33 | 01010-80816 | BOLT | 69001- | |
| 34 | 01643-30823 | WASHER | 69001- |
