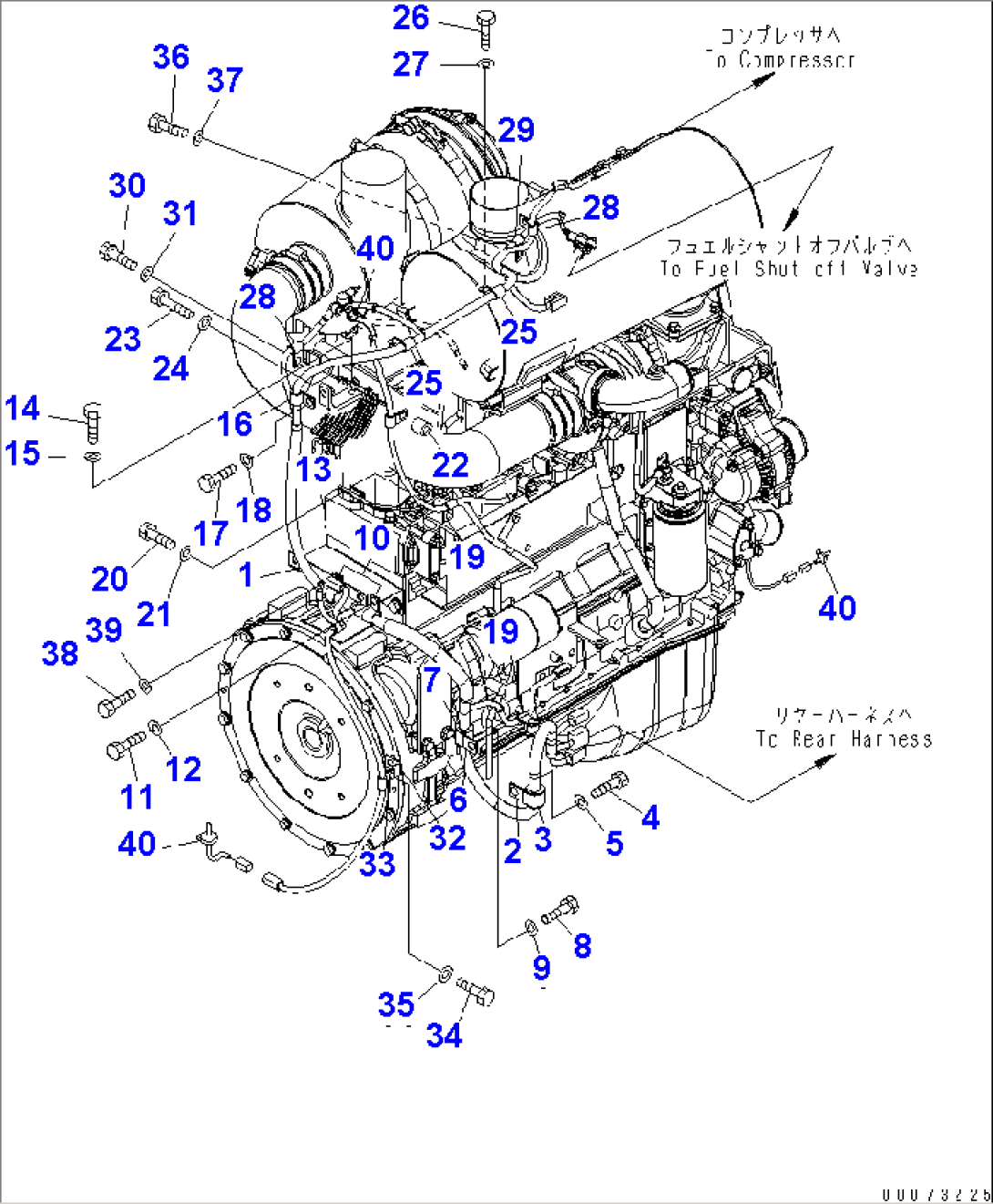

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-32356 | WIRING HARNESS | A89001- | |
| 2 | 04434-52712 | CLIP | A89001- | |
| 3 | 07095-20420 | CUSHION | A89001- | |
| 4 | 01010-81020 | BOLT | A89001- | |
| 5 | 01643-31032 | WASHER | A89001- | |
| 6 | 04434-52712 | CLIP | A89001- | |
| 7 | 07095-20420 | CUSHION | A89001- | |
| 8 | 01010-81020 | BOLT | A89001- | |
| 9 | 01643-31032 | WASHER | A89001- | |
| 10 | 04434-51912 | CLIP | A89001- | |
| 11 | 01010-81020 | BOLT | A89001- | |
| 12 | 01643-31032 | WASHER | A89001- | |
| 13 | 426-07-11130 | PLATE | A89001- | |
| 14 | 01011-81215 | BOLT | A89001- | |
| 15 | 01643-31232 | WASHER | A89001- | |
| 16 | 04434-51412 | CLIP | A89001- | |
| 17 | 01010-81020 | BOLT | A89001- | |
| 18 | 01643-31032 | WASHER | A89001- | |
| 19 | 04434-51012 | CLIP | A89001- | |
| 20 | 01010-81020 | BOLT | A89001- | |
| 21 | 01643-31032 | WASHER | A89001- | |
| 22 | 195-33-11220 | SPACER | A89001- | |
| 23 | 01010-81245 | BOLT | A89001- | |
| 24 | 01643-31232 | WASHER | A89001- | |
| 25 | 04434-51412 | CLIP | A89001- | |
| 26 | 01010-81020 | BOLT | A89001- | |
| 27 | 01643-31032 | WASHER | A89001- | |
| 28 | 04434-51012 | CLIP | A89001- | |
| 29 | 04434-51412 | CLIP | A89001- | |
| 30 | 01010-81020 | BOLT | A89001- | |
| 31 | 01643-31032 | WASHER | A89001- | |
| 32 | 42A-942-1270 | PLATE | A89001- | |
| 33 | 04434-51012 | CLIP | A89001- | |
| 34 | 01010-81020 | BOLT | A89001- | |
| 35 | 01643-31032 | WASHER | A89001- | |
| 36 | 01010-81020 | BOLT | A89001- | |
| 37 | 01643-31032 | WASHER | A89001- | |
| 38 | 01010-81016 | BOLT | A89001- | |
| 39 | 01643-31032 | WASHER | A89001- | |
| 40 | 08034-40521 | BAND | A89001- |
