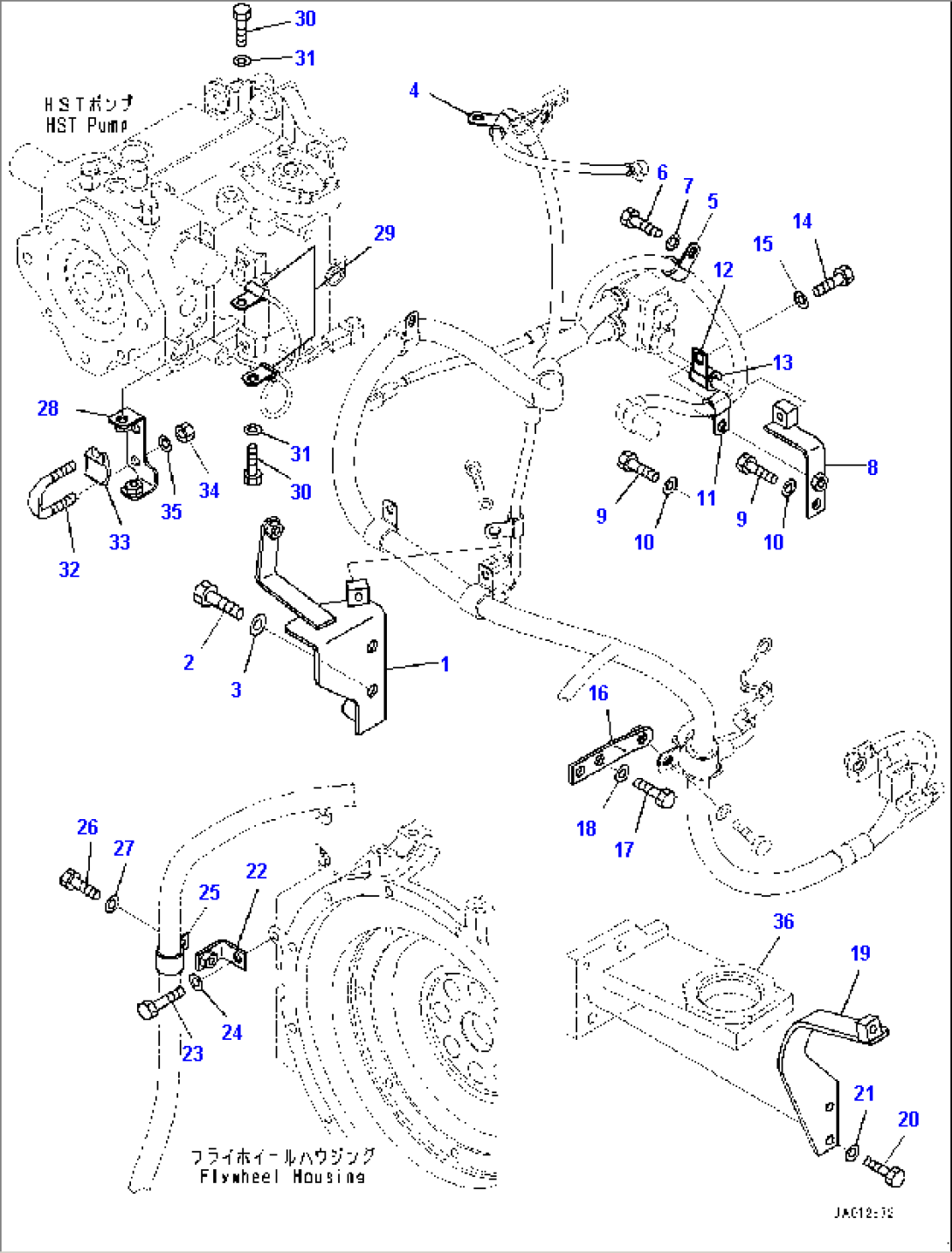

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-42530 | Bracket | B20001- | |
| 2 | 01010-81235 | Bolt | B20001- | |
| 3 | 01643-31232 | Washer | B20001- | |
| 4 | 600-051-2100 | Clip | B20001- | |
| 5 | 600-051-2140 | Clip | B20001- | |
| 6 | 01010-81020 | Bolt | B20001- | |
| 7 | 01643-31032 | Washer | B20001- | |
| 8 | 417-06-42520 | Bracket | B20001- | |
| 9 | 01010-81020 | Bolt | B20001- | |
| 10 | 01643-31032 | Washer | B20001- | |
| 11 | 600-051-2140 | Clip | B20001- | |
| 12 | 04434-51612 | Clip | B20001- | |
| 13 | 07095-20211 | Cushion | B20001- | |
| 14 | 01010-81020 | Bolt | B20001- | |
| 15 | 01643-31032 | Washer | B20001- | |
| 16 | 417-06-42430 | Bracket | B20001- | |
| 17 | 01010-81020 | Bolt | B20001- | |
| 18 | 01643-31032 | Washer | B20001- | |
| 19 | 417-06-42420 | Bracket | B20001- | |
| 20 | 01010-81020 | Bolt | B20001- | |
| 21 | 01643-31032 | Washer | B20001- | |
| 22 | 42A-16-11210 | Plate | B20001- | |
| 23 | 01010-81040 | Bolt | B20001- | |
| 24 | 01643-31032 | Washer | B20001- | |
| 25 | 04434-52312 | Clip | B20001- | |
| 26 | 01010-81020 | Bolt | B20001- | |
| 27 | 01643-31032 | Washer | B20001- | |
| 28 | 417-06-41121 | Bracket | B20001- | |
| 29 | 600-051-2050 | Clip | B20001- | |
| 30 | 01010-81020 | Bolt | B20001- | |
| 31 | 01643-31032 | Washer | B20001- | |
| 32 | 07283-33442 | Clip, Pipe | B20001- | |
| 33 | 07283-53444 | Seat | B20001- | |
| 34 | 01597-01009 | Nut | B20001- | |
| 35 | 01643-31032 | Washer | B20001- | |
| 36 | (417-01-41150) | Bracket | - |
