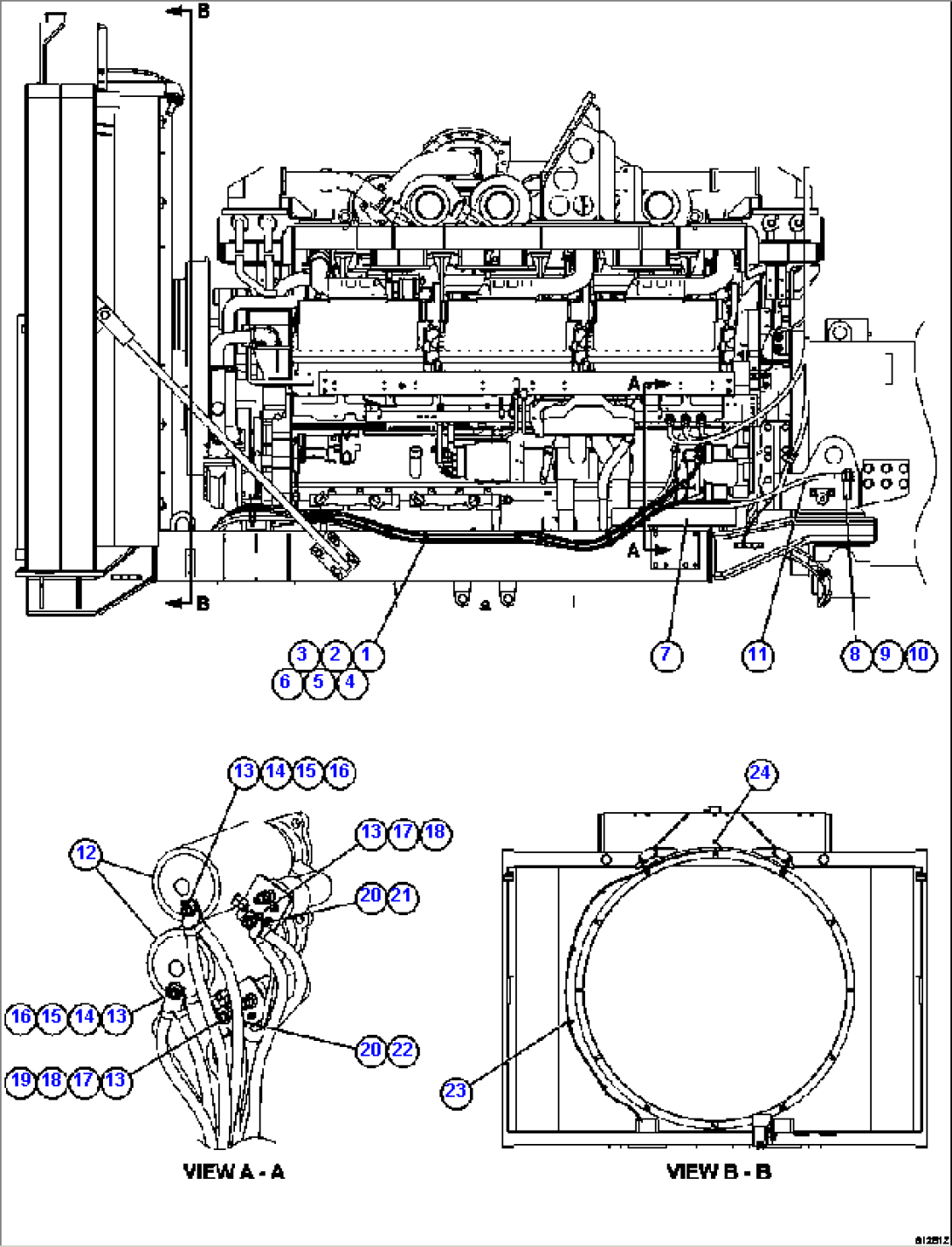

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EL1939 | ROD, THREADED | | |
| 2 | EJ3891 | CLAMP ASSEMBLY | | |
| 3 | MM0462 | FLAT WASHER - M12 | | |
| 4 | WB1302 | CLAMP, CUSHIONED - 5/16" | | |
| 5 | MM0459 | FLAT WASHER - M6 | | |
| 6 | MM0176 | NUT - M6 X 1.00 | | |
| 7 | EJ5615 | SHIELD | | |
| 8 | EH9890 | SHEET, BENT | | |
| 9 | MM0025 | CAPSCREW - M6 X 1.00 X 20 | | |
| 10 | MM0469 | LOCKWASHER - M6 | | |
| 11 | EM6153 | HARNESS, EXTERNAL ENGINE | | |
| 12 | XA3660 | MOTOR, CRANKING | | |
| 12 | 09842-A0481 | DECAL, JUMP START WARNING | | |
| 13 | 08038-00035 | CAP, TERMINAL | | |
| 14 | CH4075 | CABLE - BLACK (TO GROUND) | | |
| 15 | CH5415 | CABLE - RED (TO BATTERY BOX) | | |
| 16 | CH4503 | CABLE - BLACK (TOP STARTER TO BOTTOM STARTER) | | |
| 17 | CH5701 | CABLE - BLACK (TO BATTERY BOX) | | |
| 18 | CH4605 | CABLE - RED (TOP STARTER TO BOTTOM STARTER) | | |
| 19 | EM6151 | LINK, FUSABLE | | |
| 19 | PC2252 | FUSE - 150 AMP | | |
| 20 | 08038-04030 | CAP, TERMINAL | | |
| 21 | CH4172 | CABLE - RED (TO BATTERY BOX) | | |
| 22 | CH4173 | CABLE - RED (TO BATTERY BOX) | | |
| 23 | WB3097 | CLAMP, CUSHIONED - 1/2" | | |
| 24 | XA3603 | SWITCH, COOLANT LEVEL | | |
