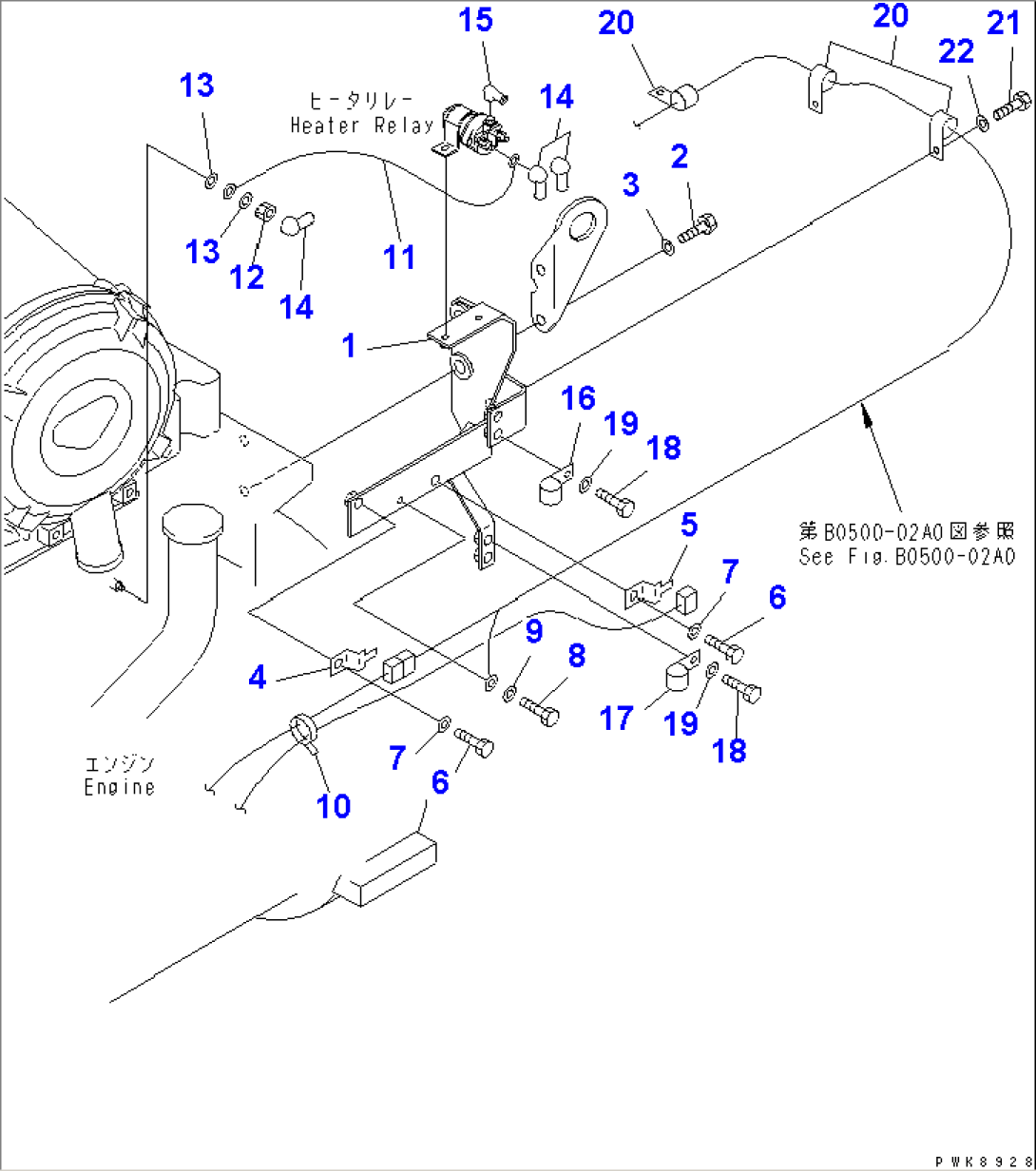

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-06-61191 | BRACKET | 1001- | |
| 2 | 01010-81230 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 4 | 134-06-61310 | CLIP | 1001- | |
| 5 | 08053-01510 | CLIP | 1001- | |
| 6 | 01010-81020 | BOLT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 01010-80612 | BOLT | 1001- | |
| 9 | 01643-30623 | WASHER | 1001- | |
| 10 | 08034-20414 | BAND | 1001- | |
| 11 | 134-01-61170 | WIRE | 1001- | |
| 12 | 01580-10605 | NUT | 1001- | |
| 13 | 01640-20610 | WASHER | 1001- | |
| 14 | 08038-00519 | CAP | 1239- | |
| 14 | 08038-00525 | CAP | 1001-1238 | |
| 15 | 08038-00519 | CAP | 1001- | |
| 16 | 04434-51410 | CLIP | 1001- | |
| 17 | 04434-51010 | CLIP | 1001- | |
| 18 | 01010-81016 | BOLT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| 20 | 04434-51910 | CLIP | 1001- | |
| 21 | 01010-81020 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- |
