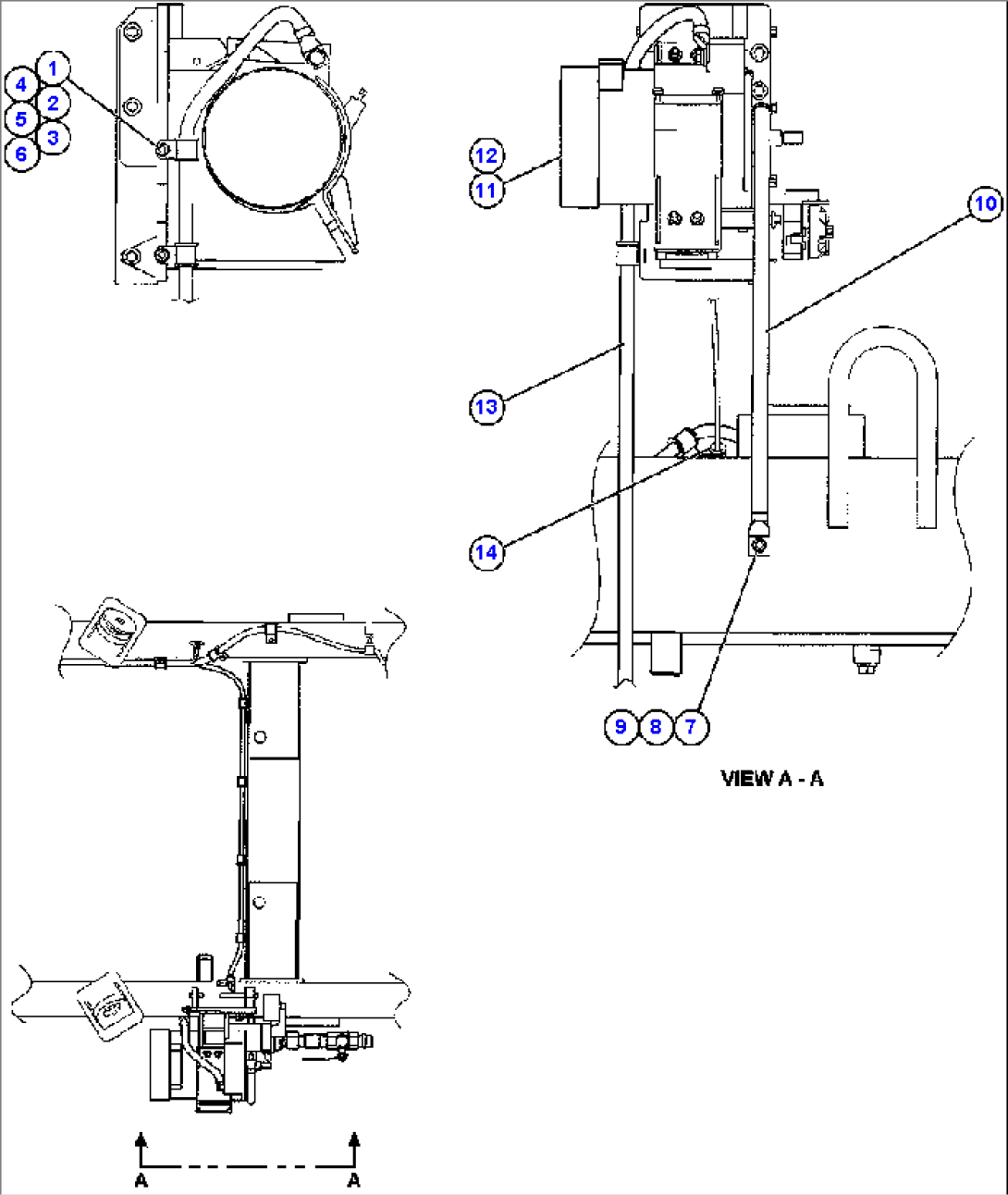

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0471 | LOCKWASHER - M10 | ||
| 2 | MM0648 | STUD, WELD - M10 X 1.50 X 25 | ||
| 3 | MM0713 | FLATWASHER, HARDENED - M10 ZINC | ||
| 4 | MM0178 | NUT, HEX - M10 X 1.5 | ||
| 5 | 443452711 | CLIP | ||
| 6 | 709530420 | CUSHION HOSE | ||
| 7 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" G5 ZINC | ||
| 8 | TR4436 | FLATWASHER - 3/8" | ||
| 9 | TC1231 | LOCKWASHER - 3/8" | ||
| 10 | CH4027 | CABLE | ||
| 11 | XA2085 | ALTERNATOR, BATTERY CHARGING (SEE INDEX) | ||
| 12 | XA0117 | BELT, ALTERNATOR DRIVE | ||
| 13 | CH3850 | CABLE | ||
| 14 | PB9710 | SENSOR, COOLANT TEMPERATURE |
