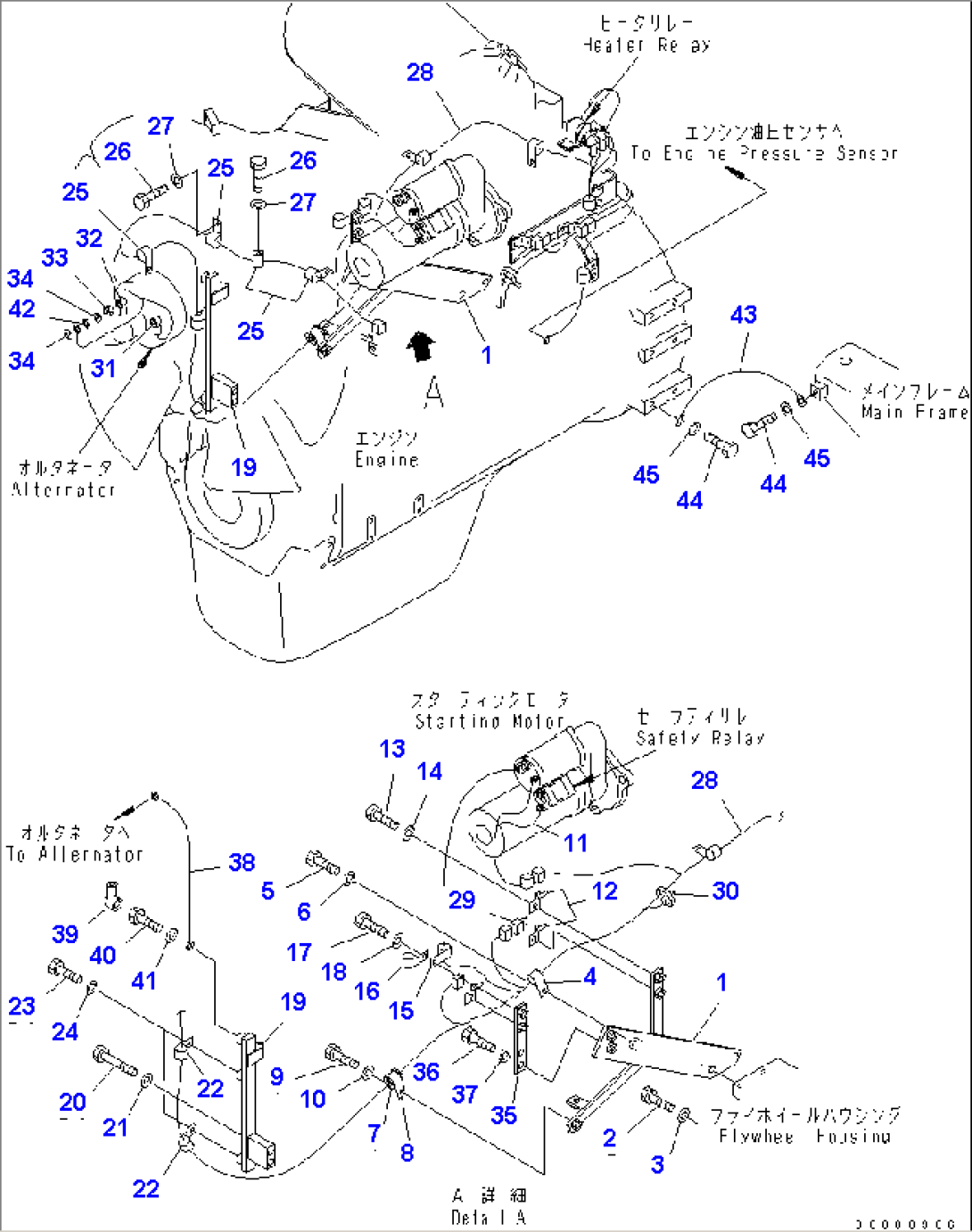

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-01-71610 | BRACKET | B3001- | |
| 2 | 01010-81230 | BOLT | B3001- | |
| 3 | 01643-31232 | WASHER | B3001- | |
| 4 | 04434-52710 | CLIP | B3001- | |
| 5 | 01010-81020 | BOLT | B3001- | |
| 6 | 01643-31032 | WASHER | B3001- | |
| 7 | 07095-20318 | CUSHION | B3001- | |
| 8 | 04434-52510 | CLIP | B3001- | |
| 9 | 01010-81020 | BOLT | B3001- | |
| 10 | 01643-31032 | WASHER | B3001- | |
| 11 | 134-06-61420 | WIRING HANESS | B3001- | |
| 12 | 08053-01510 | CLIP | B3001- | |
| 13 | 01010-81020 | BOLT | B3001- | |
| 14 | 01643-31032 | WASHER | B3001- | |
| 15 | 04434-51410 | CLIP | B3001- | |
| 16 | 04434-50610 | CLIP | B3001- | |
| 17 | 01010-81020 | BOLT | B3001- | |
| 18 | 01643-31032 | WASHER | B3001- | |
| 19 | 134-06-71290 | BRACKET | B3001- | |
| 20 | 01010-81085 | BOLT | B3001- | |
| 21 | 01643-31032 | WASHER | B3001- | |
| 22 | 04434-51410 | CLIP | B3001- | |
| 23 | 01010-81020 | BOLT | B3001- | |
| 24 | 01643-31032 | WASHER | B3001- | |
| 25 | 04434-51010 | CLIP | B3001- | |
| 26 | 01010-81020 | BOLT | B3001- | |
| 27 | 01643-31032 | WASHER | B3001- | |
| 28 | 134-06-71122 | WIRING HARNESS | B3001- | |
| 29 | 22U-06-11270 | FUSIBLE LINK¤ 65A | B3001- | |
| 30 | 08020-00000 | DIODE | B3001- | |
| 31 | 08038-00519 | CAP | B3001- | |
| 32 | 08038-02027 | CAP | B3001- | |
| 33 | 01580-10806 | NUT | B3001- | |
| 34 | 01640-20816 | WASHER | B3001- | |
| 35 | 134-01-61620 | PLATE | B3001- | |
| 36 | 01010-81025 | BOLT | B3001- | |
| 37 | 01643-31032 | WASHER | B3001- | |
| 38 | 134-06-71280 | CABLE | B3001- | |
| 39 | 08038-02027 | CAP | B3001- | |
| 40 | 01010-81020 | BOLT | B3001- | |
| 41 | 01643-31032 | WASHER | B3001- | |
| 42 | 01640-20610 | WASHER | B3001- | |
| 43 | 08028-46040 | CABLE | B3001- | |
| 44 | 01010-81220 | BOLT | B3001- | |
| 45 | 01643-31232 | WASHER | B3001- |
