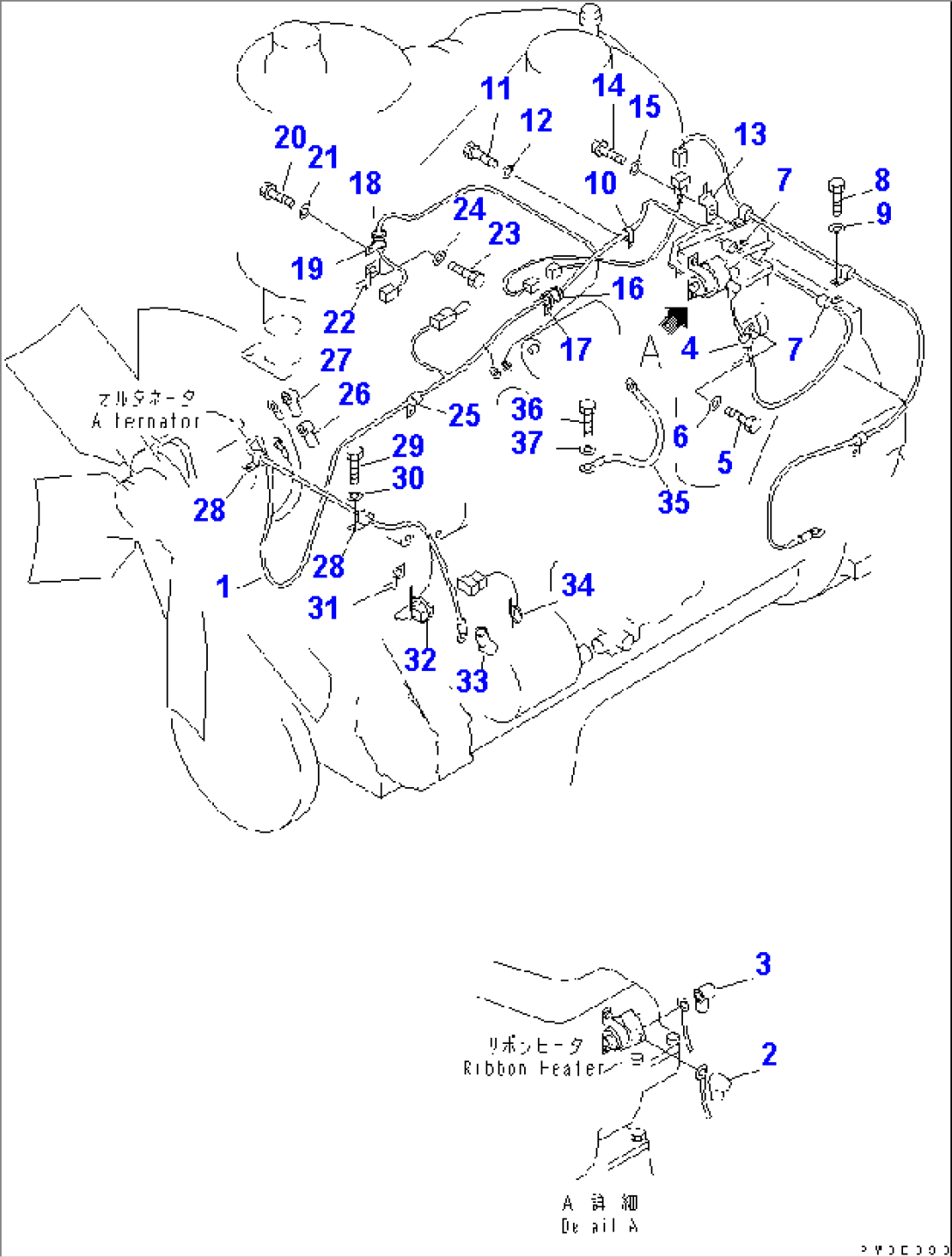

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-06-24742 | WIRING HARNESS | 4001- | |
| 22U-06-11270 | FUSIBLE LINK¤ 65A | 4001- | ||
| 2 | 08038-00525 | CAP | 4001- | |
| 3 | 08038-00519 | CAP | 4001- | |
| 4 | 04434-51710 | CLIP | 4001- | |
| 5 | 01010-81020 | BOLT | 4001- | |
| 6 | 01643-31032 | WASHER | 4001- | |
| 7 | 04434-51710 | CLIP | 4001- | |
| 8 | 01010-81016 | BOLT | 4001- | |
| 9 | 01643-31032 | WASHER | 4001- | |
| 10 | 04434-51710 | CLIP | 4001- | |
| 11 | 01010-81016 | BOLT | 4001- | |
| 12 | 01643-31032 | WASHER | 4001- | |
| 13 | 08193-20010 | CLIP | 4001- | |
| 14 | 01010-81016 | BOLT | 4001- | |
| 15 | 01643-31032 | WASHER | 4001- | |
| 16 | 07095-20318 | CUSHION | 4001- | |
| 17 | 04434-52511 | CLIP | 4001- | |
| 18 | 07095-20318 | CUSHION | 4001- | |
| 19 | 04434-52511 | CLIP | 4001- | |
| 20 | 01010-81016 | BOLT | 4001- | |
| 21 | 01643-31032 | WASHER | 4001- | |
| 22 | 08053-00910 | CLIP | 4001- | |
| 23 | 01010-81016 | BOLT | 4001- | |
| 24 | 01643-31032 | WASHER | 4001- | |
| 25 | 04434-51410 | CLIP | 4001- | |
| 26 | 08038-00519 | CAP | 4001- | |
| 27 | 08038-00525 | CAP | 4001- | |
| 28 | 04434-51010 | CLIP | 4001- | |
| 29 | 01010-81016 | BOLT | 4001- | |
| 30 | 01643-31032 | WASHER | 4001- | |
| 31 | 08193-20010 | CLIP | 4001- | |
| 32 | 08034-00519 | BAND | 4001- | |
| 33 | 08038-00519 | CAP | 4001- | |
| 34 | 08034-30521 | BAND | 4001- | |
| 35 | 08028-44050 | CABLE | 3034- | |
| 36 | 01010-81016 | BOLT | 3034- | |
| 37 | 01643-31032 | WASHER | 3034- |
