| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22L-06-21280 | CABLE | F30001- | |
| 2 | 04434-51010 | CLAMP | F30001- | |
| 3 | 01010-81016 | BOLT | F30001- | |
| 4 | 01643-31032 | WASHER | F30001- | |
| 5 | 08038-10519 | COVER | F30001- | |
| 6 | 01580-10605 | NUT | F30001- | |
| 7 | 01640-20610 | WASHER | F30001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc30mr 3 s/n f30001 up
- Engine unit
- Engine, with air conditioner, wiring harness
Поиск по каталогу

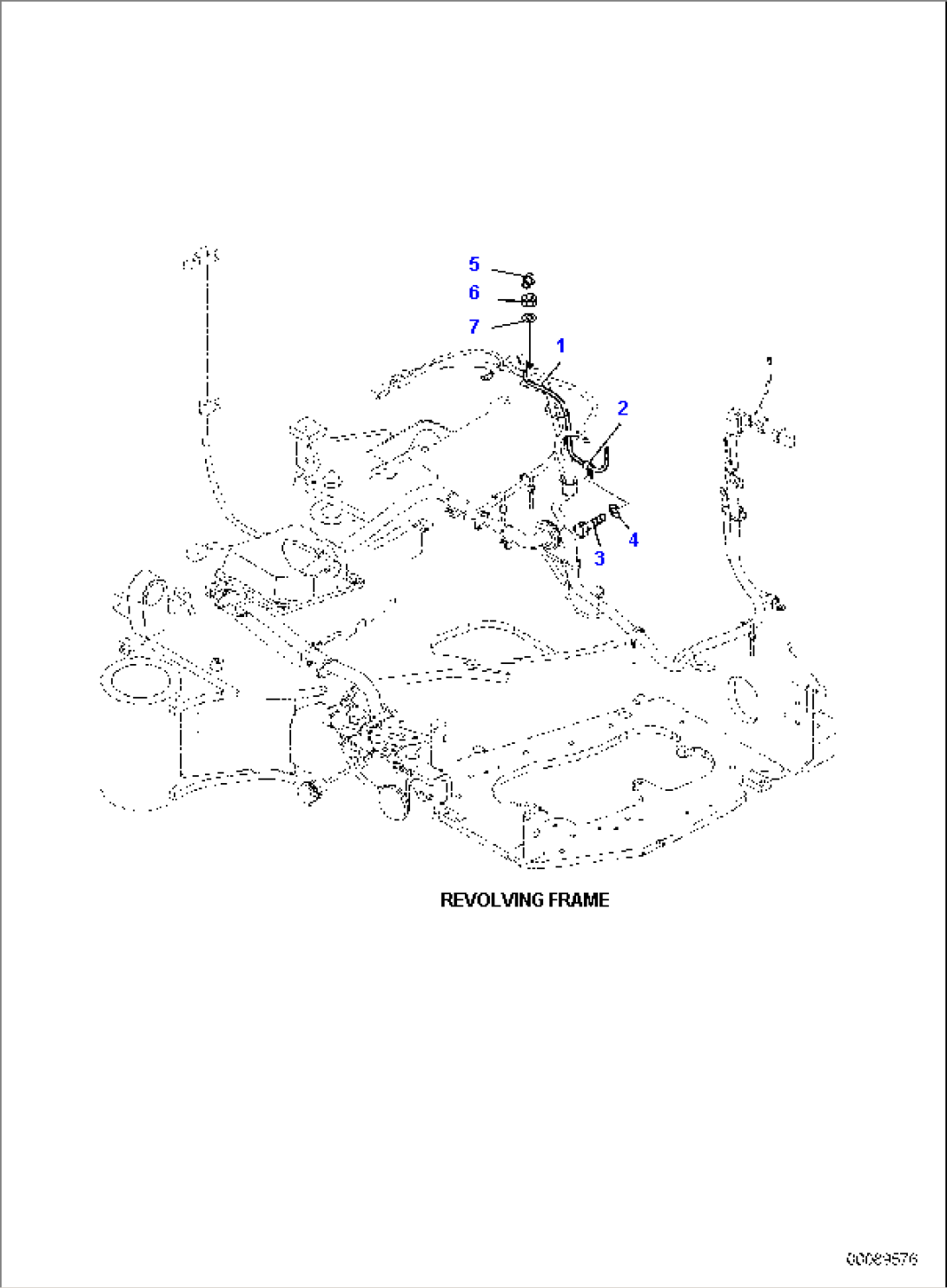

ENGINE, WITH AIR CONDITIONER, WIRING HARNESS
