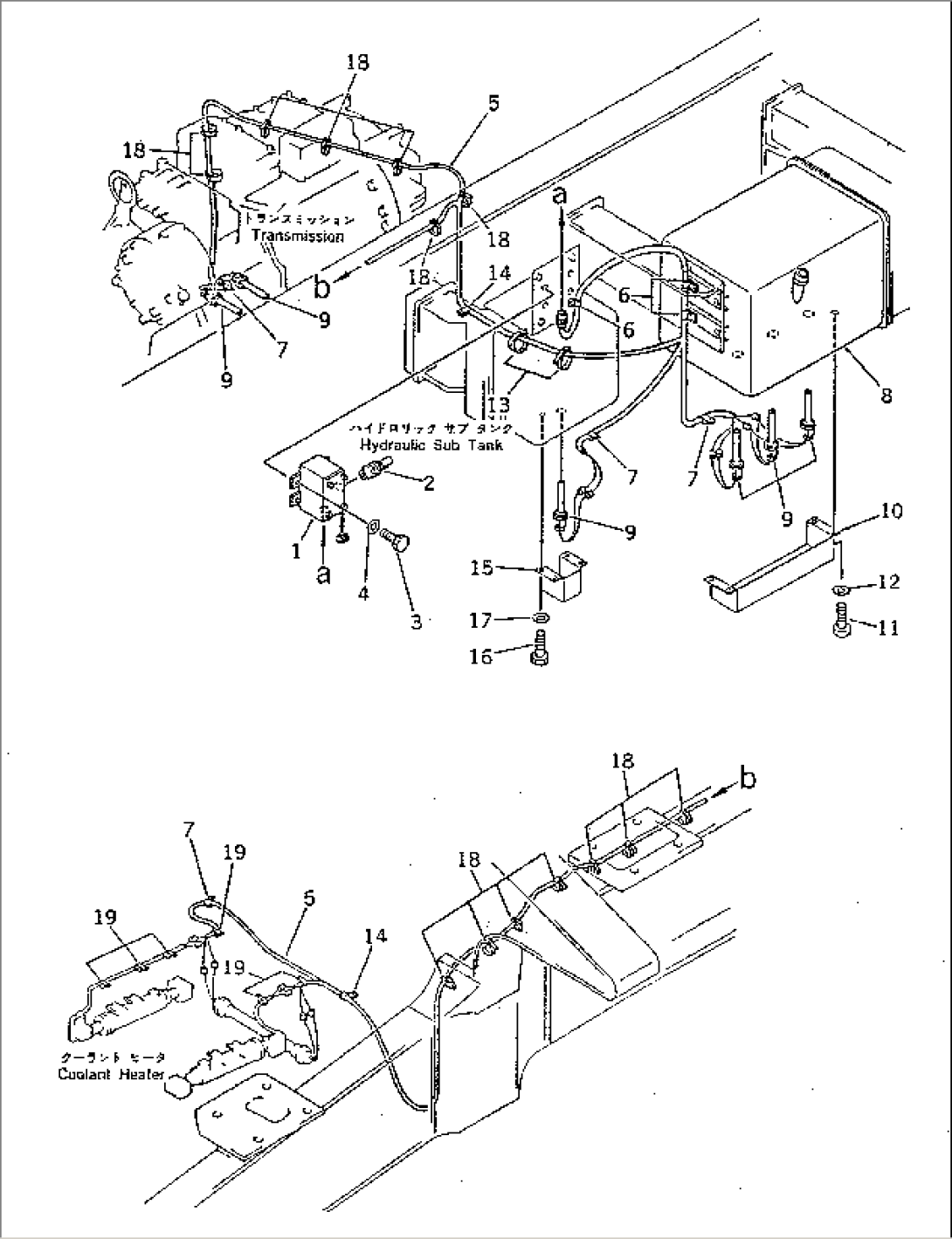

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-06-13600 | BOX ASS'Y | 1109- | |
| 2 | 175-06-37871 | PLUG | 1109- | |
| 3 | 01010-51020 | BOLT | 1109- | |
| 4 | 01643-31032 | WASHER | 1109- | |
| 5 | 568-84-19540 | HARNESS | 1109- | |
| 6 | 08035-01514 | CLIP | 1109- | |
| 7 | 08036-31214 | CLIP | 1109- | |
| 8 | 568-84-19510 | TANK | 1109- | |
| 9 | 6631-84-2911 | HEATER | 1109- | |
| 10 | 568-84-19520 | COVER | 1109- | |
| 11 | 01010-51020 | BOLT | 1109- | |
| 12 | 01643-31032 | WASHER | 1109- | |
| 13 | 08034-00834 | BAND | 1109- | |
| 14 | 08036-21414 | CLIP | 1109- | |
| 15 | 568-84-19530 | COVER | 1109- | |
| 16 | 01010-51020 | BOLT | 1109- | |
| 17 | 01643-31032 | WASHER | 1109- | |
| 18 | 08034-00519 | BAND | 1109- | |
| 19 | 08036-31210 | CLIP | 1109- |
