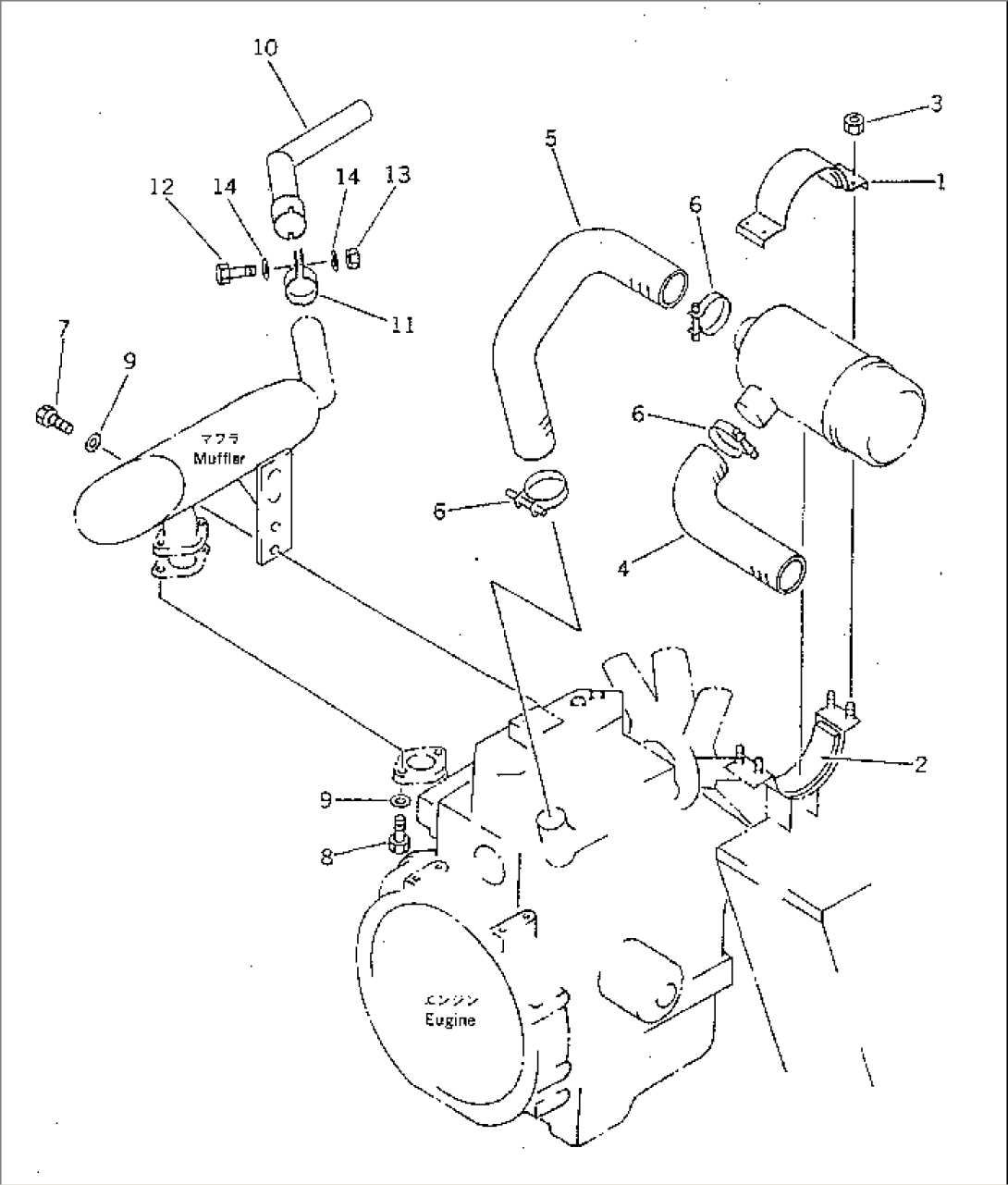

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | FF7830-02250 | BRACKET | 3001- | |
| FF7830-02270 | RUBBER | 3001- | ||
| 2 | FF7830-02270 | RUBBER | 3001- | |
| 3 | 01584-00605 | NUT | 3001- | |
| 4 | FF7822-02350 | HOSE | 3001- | |
| 5 | FF7822-02310 | HOSE | 3001- | |
| 6 | 07280-05429 | CLAMP | 3001- | |
| 7 | 01010-50816 | BOLT | 3001- | |
| 8 | 01010-50830 | BOLT | 3001- | |
| 9 | 01643-30823 | WASHER | 3001- | |
| 10 | FF7822-02510 | PIPE,EXHAUST | 3001- | |
| 11 | 20N-01-41120 | CLAMP | 3001- | |
| 12 | 01010-50860 | BOLT | 3001- | |
| 13 | 01580-10806 | NUT | 3001- | |
| 14 | 01643-30823 | WASHER | 3001- |
