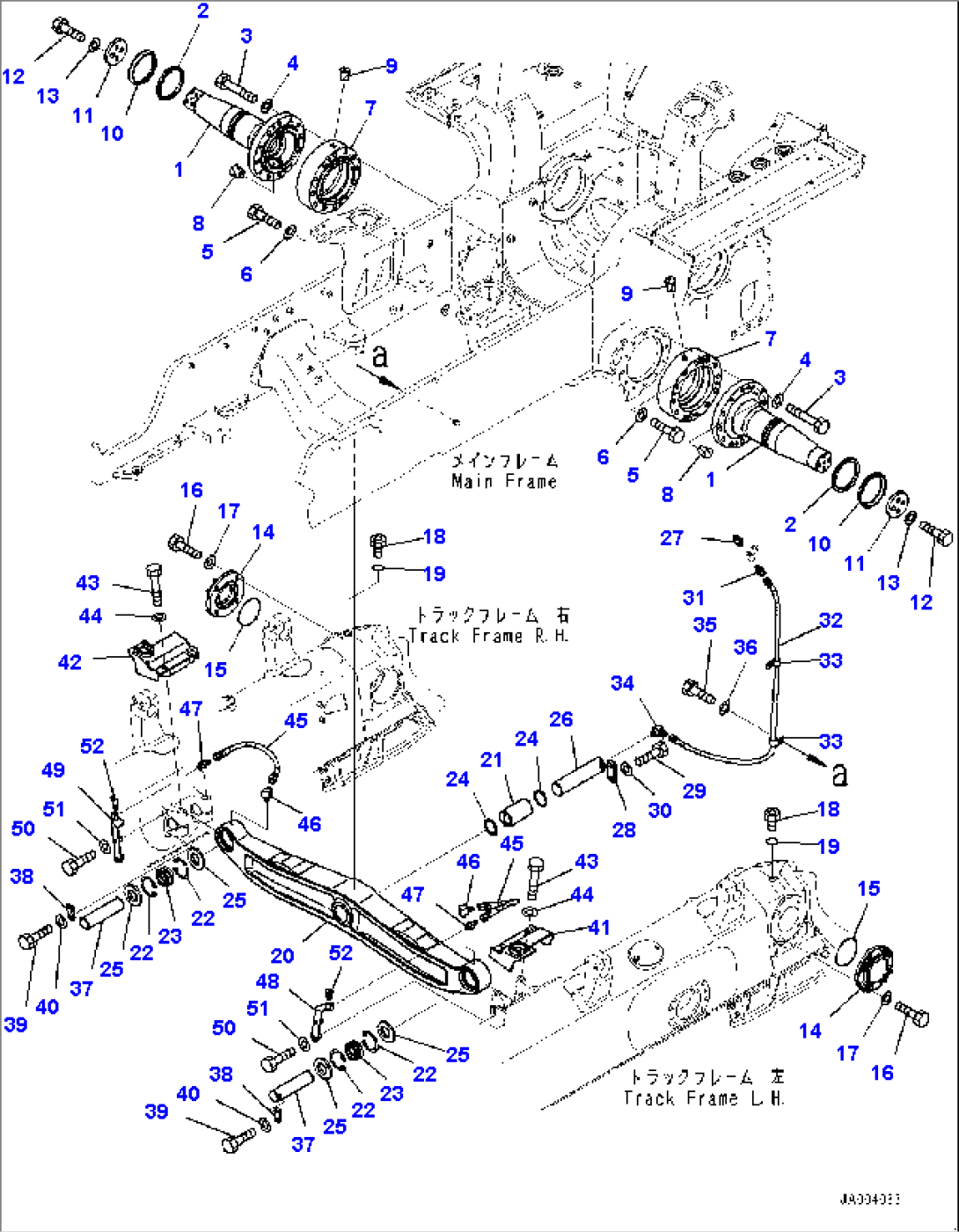

| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-30-00210 | Pivot Shaft Assembly | 1001- | ||
| 1 | Shaft | 1001- | ||
| 2 | 14Y-30-18160 | Ring | 1001- | |
| 3 | 14X-30-51660 | Bolt | 1001- | |
| 4 | 01643-32060 | Washer | 1001- | |
| 5 | 01010-81295 | Bolt | 1001- | |
| 6 | 01643-31232 | Washer | 1001- | |
| 7 | 14X-30-51191 | Spacer | 1001- | |
| 8 | 07049-02025 | Plug | 1001- | |
| 9 | 07049-01012 | Plug | 1001- | |
| 10 | 14Y-30-18150 | Seal | 1001- | |
| 11 | 14Y-30-18121 | Spacer | 1001- | |
| 12 | 01010-82055 | Bolt | 1001- | |
| 13 | 01643-32060 | Washer | 1001- | |
| 14 | 14Y-30-18111 | Cover | 1001- | |
| 15 | 07000-02145 | O-ring | 1001- | |
| 16 | 01010-82055 | Bolt | 1001- | |
| 17 | 01643-32060 | Washer | 1001- | |
| 18 | 07040-12414 | Plug | 1001- | |
| 19 | 07002-02434 | O-ring | 1001- | |
| 14X-50-00111 | Equalizer Bar Assembly | 1001- | ||
| 20 | Equalizer Bar | 1001- | ||
| 21 | 14Y-50-11250 | Bushing | 1001- | |
| 22 | 04065-09030 | Ring, Snap | 1001- | |
| 23 | 14Y-50-11460 | Bushing | 1001- | |
| 24 | 130-09-12911 | Seal, Dust | 1001- | |
| 25 | 14Y-50-11323 | Seal | 1001- | |
| 26 | 14Y-50-11240 | Pin | 1001- | |
| 27 | 07020-00000 | Fitting, Grease | 1001- | |
| 28 | 14Y-50-11390 | Lock | 1001- | |
| 29 | 01010-81640 | Bolt | 1001- | |
| 30 | 01643-31645 | Washer | 1001- | |
| 31 | 208-06-11220 | Nipple | 1001- | |
| 32 | 14X-50-61291 | Hose | 1001- | |
| 33 | 04434-51312 | Clip | 1001- | |
| 34 | 203-62-42920 | Elbow | 1001- | |
| 35 | 01010-81220 | Bolt | 1001- | |
| 36 | 01643-31232 | Washer | 1001- | |
| 37 | 14X-50-51530 | Pin | 1001- | |
| 38 | 04082-00312 | Lock | 1001- | |
| 39 | 01010-81230 | Bolt | 1001- | |
| 40 | 01643-31232 | Washer | 1001- | |
| 41 | 14X-50-51141 | Cover | 1001- | |
| 42 | 14X-50-51151 | Cover | 1001- | |
| 43 | 01011-82055 | Bolt | 1001- | |
| 44 | 01643-32060 | Washer | 1001- | |
| 45 | 14X-50-51181 | Hose | 1001- | |
| 46 | 202-62-21430 | Elbow | 1001- | |
| 47 | 203-62-21740 | Nipple | 1001- | |
| 48 | 14X-50-51121 | Bracket | 1001- | |
| 49 | 14X-50-51131 | Bracket | 1001- | |
| 50 | 01010-81255 | Bolt | 1001- | |
| 51 | 01643-31232 | Washer | 1001- | |
| 52 | 07020-00675 | Fitting, Grease | 1001- |
