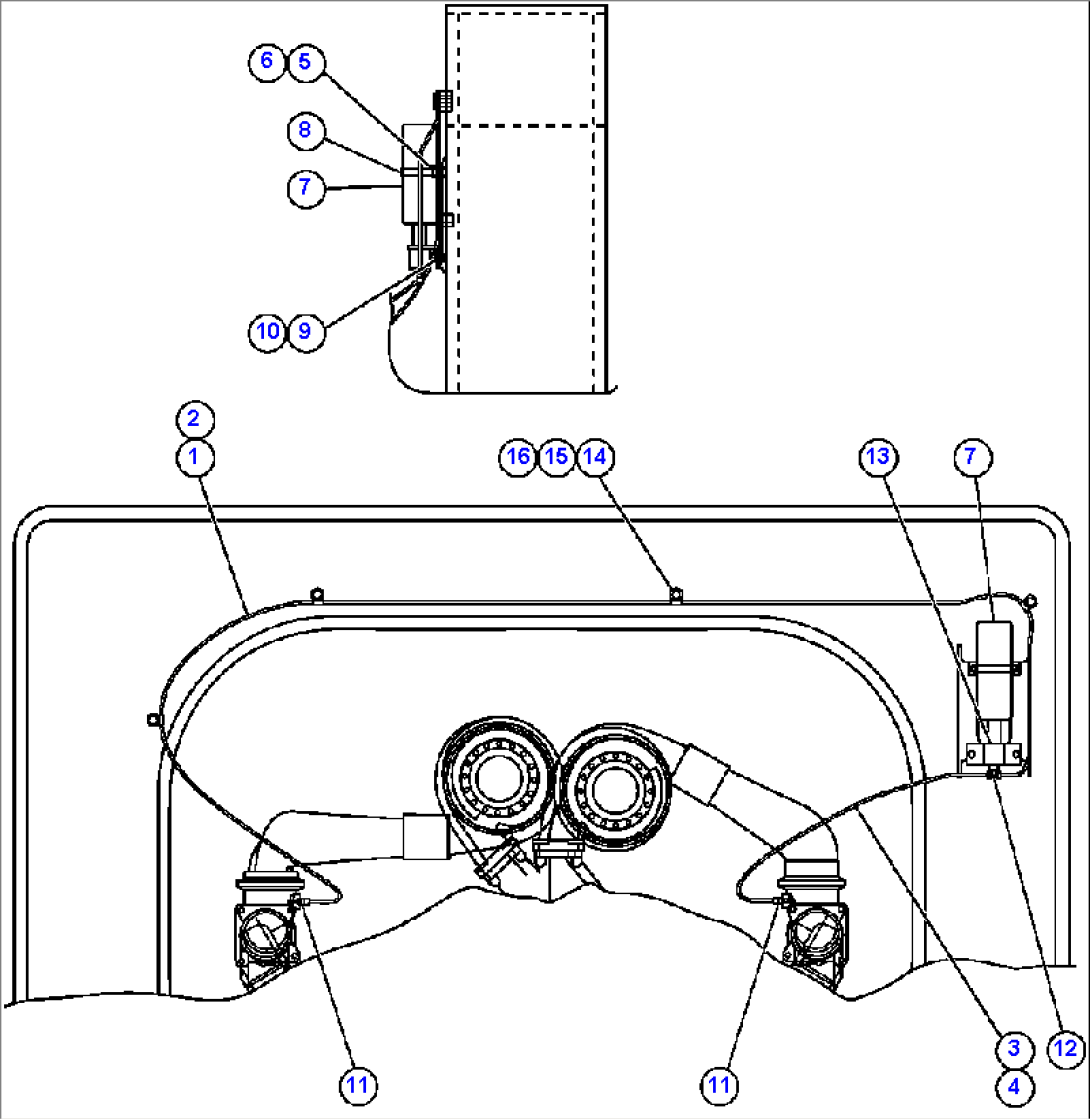

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF9111 | TUBE, NYLON - INNER | ||
| 2 | EF8516 | TUBE, NYLON - OUTER | ||
| 3 | EF9110 | TUBE, NYLON - INNER | ||
| 4 | TN9183 | TUBE, NYLON - OUTER | ||
| 5 | MM0022 | CAPSCREW - M8 X 1.25 X 20 | ||
| 6 | MM0703 | FLAT WASHER - M8 | ||
| 7 | VX1408 | CYLINDER, FUEL | ||
| 8 | VX1407 | CLAMP, CYLINDER | ||
| 9 | MM0019 | CAPSCREW - M6 X 1.00 X 16 | ||
| 10 | MM0702 | FLAT WASHER - M6 | ||
| 11 | TA9477 | ATOMIZER | ||
| 12 | KD0523 | FITTING, TEE | ||
| 13 | EG6161 | ETHER START VALVE ASSEMBLY | ||
| 13 | PB0541 | VALVE, ELECTRIC | ||
| 13 | PB7034 | SEAL | ||
| 13 | PB7731 | PIN, TERMINAL | ||
| 13 | PB7744 | CONNECTOR, MALE | ||
| 14 | VY3109 | CLAMP, VINYL | ||
| 15 | MM0050 | CAPSCREW - M10 X 1.50 X 35 | ||
| 16 | MM0704 | FLAT WASHER - M10 |
