| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-02-71110 | TUBE | 1001-1600 | |
| 2 | 515-02-11311 | GASKET | 1001-@ | |
| 3 | 01435-01020 | BOLT | 1001-@ | |
| 4 | 01580-11008 | NUT | 1001-@ | |
| 5 | 01435-01025 | BOLT | 1001-1600 | |
| 6 | 567-02-71210 | COVER | 1001-1600 | |
| 7 | 07042-20108 | PLUG | 1001-1600 |
- Главная
- Каталог запчастей
- Самосвалы
- Hd255 5 s/n 1001 up
- Main frame and related parts
- Exaust piping(#1001 1600)
Поиск по каталогу

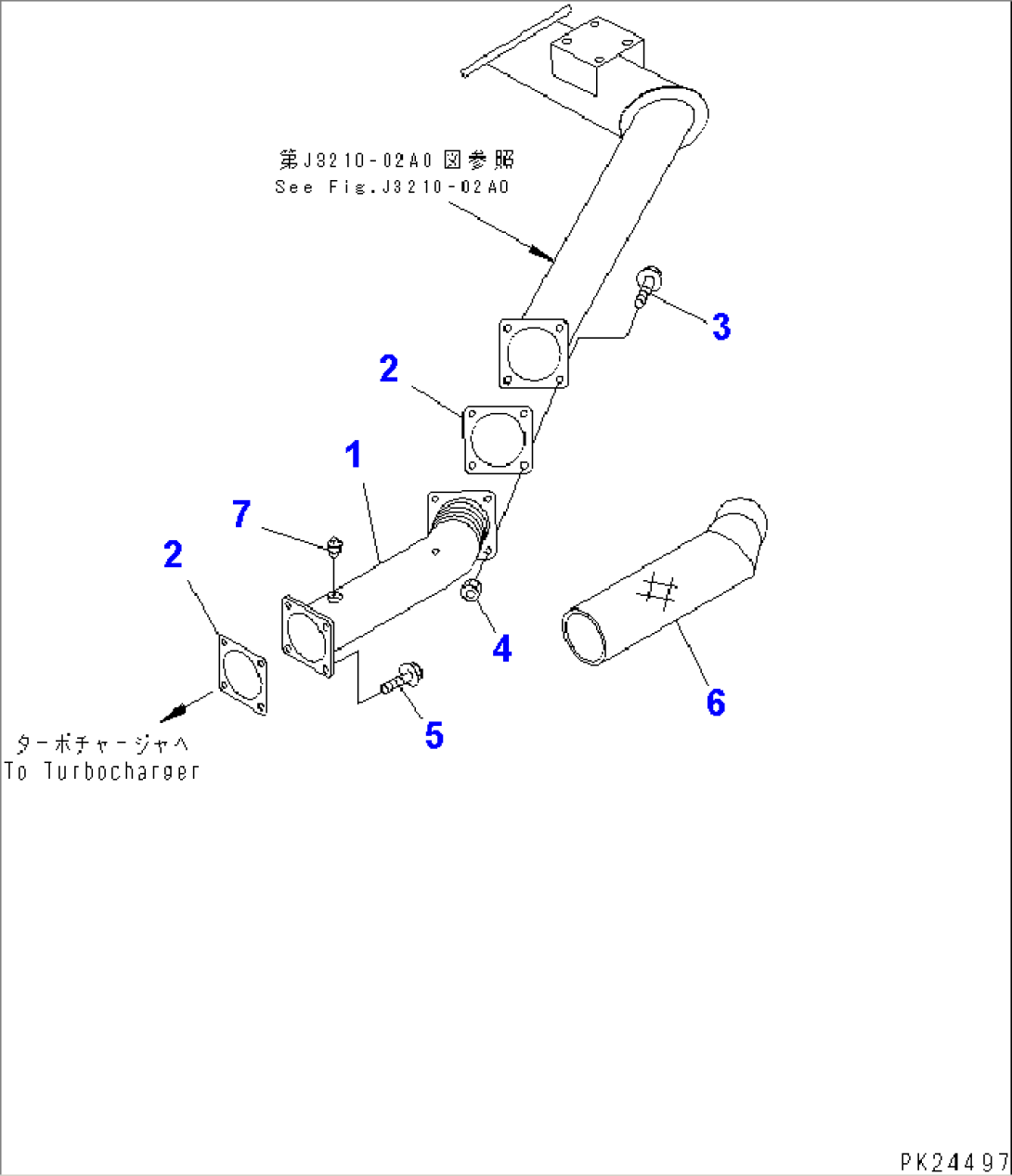

EXAUST PIPING(#1001-1600)
