| Item | Part No. | Part Name | Qty | Serial No. |

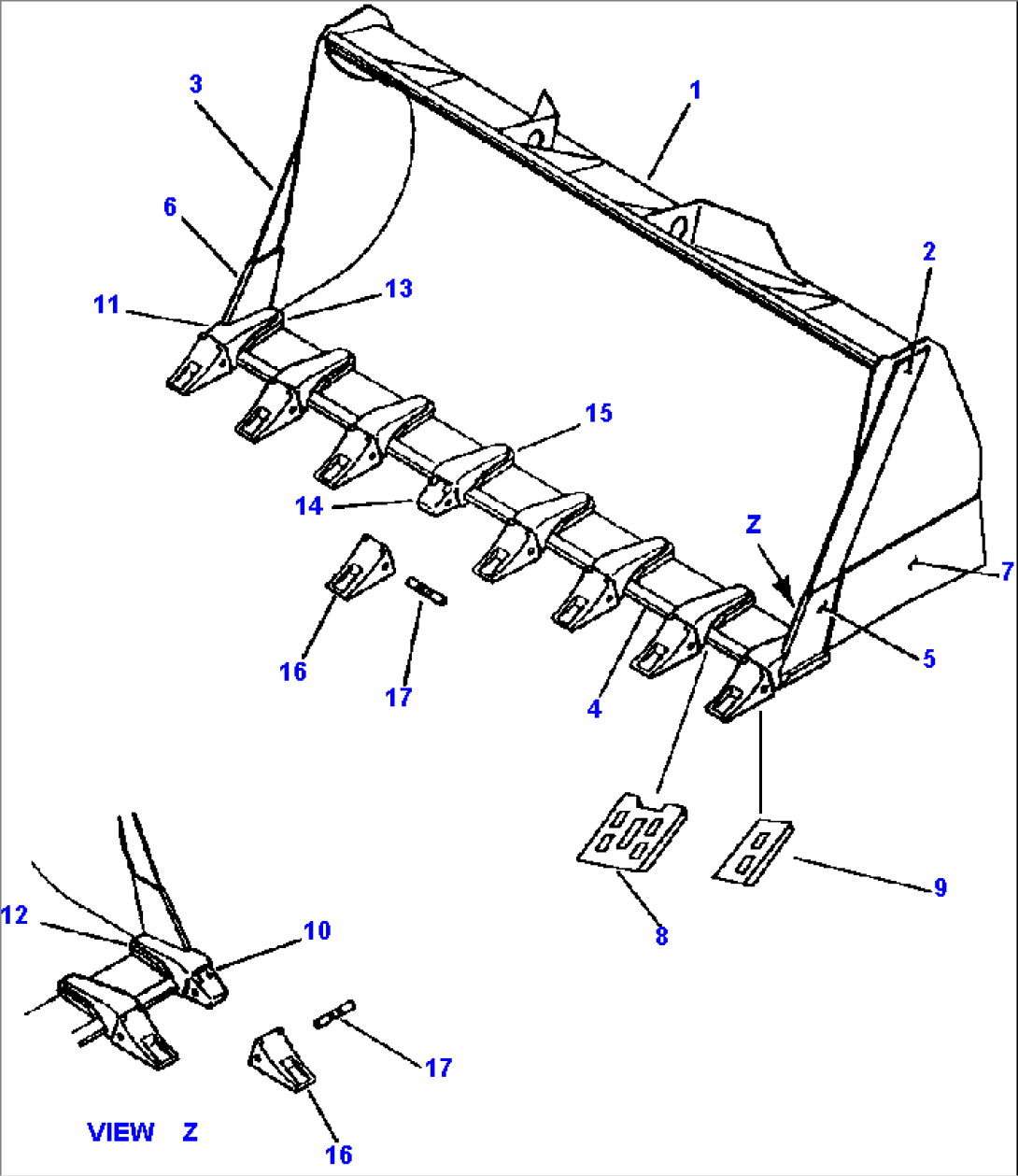

| 425-807-A110 | BUCKET 4.0 M³ (5.2 YD³) | |||
| 1 | 425-70-A2110 | BUCKET | ||
| 2 | 425-70-A2130 | PLATE, L.H | ||
| 3 | 425-70-A2120 | PLATE, R.H | ||
| 4 | 425-70-12122 | EDGE, CUTTING | ||
| 5 | 425-70-A2150 | PLATE, L.H | ||
| 6 | 425-70-A2160 | PLATE, R.H | ||
| 7 | 425-70-A2180 | PLATE | ||
| 8 | 425-70-A2140 | PLATE | ||
| 9 | 425-70-A2170 | PLATE | ||
| 10 | 426-848-1121 | ADAPTER, L.H. CORNER | ||
| 11 | 426-848-1131 | ADAPTER, R.H. CORNER | ||
| 12 | 425-847-1131 | PLATE, L.H | ||
| 13 | 425-847-1141 | PLATE, R.H | ||
| 14 | 426-847-1121 | ADAPTER, CENTER | ||
| 15 | 425-847-1121 | PLATE | ||
| 16 | 426-847-1110 | TOOTH | ||
| 17 | 426-847-1130 | PIN |
