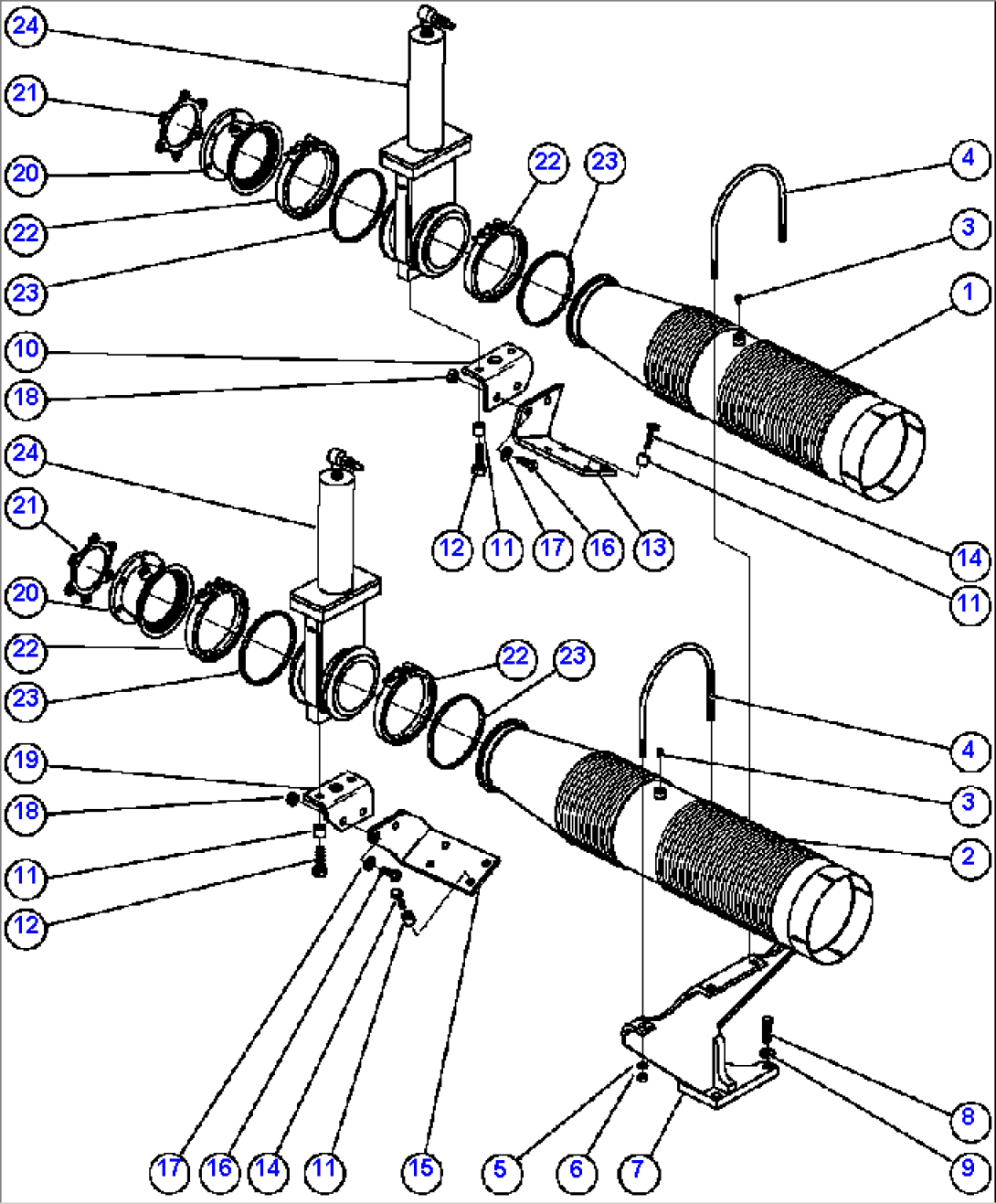

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EJ9190 | TUBE, EXHAUST - R.H. | ||
| 2 | EJ9191 | TUBE, EXHAUST - L.H. | ||
| 3 | 07042-20108 | PLUG | ||
| 4 | 561-02-A1670 | U-BOLT | ||
| 5 | C1547 | FLAT WASHER - 3/8" | ||
| 6 | C1521 | NUT - 3/8" - 16NC | ||
| 7 | 561-02-73140 | BRACKET | ||
| 8 | 01010-81240 | CAPSCREW | ||
| 9 | 01643-31232 | FLAT WASHER | ||
| 10 | 6215-91-1140 | BRACKET - R.H. | ||
| 11 | 6631-11-5630 | SPACER | ||
| 12 | 02010-70644 | CAPSCREW | ||
| 13 | 561-02-73170 | BRACKET - R.H. | ||
| 14 | 01010-E1040 | CAPSCREW | ||
| 15 | 561-02-73160 | BRACKET - L.H. | ||
| 16 | 01010-E1035 | CAPSCREW | ||
| 17 | 01643-31032 | FLAT WASHER | ||
| 18 | 01580-01008 | NUT | ||
| 19 | 561-02-73150 | BRACKET - L.H. | ||
| 20 | CU30946640 | CONNECTOR | ||
| 21 | CU3011876 | GASKET | ||
| 22 | 6215-91-1170 | BAND, V | ||
| 23 | 6215-91-1180 | GASKET | ||
| 24 | 6162-13-8301 | BRAKE, EXHAUST | ||
| 24 | (EK3890 EXHAUST BRAKE INSTALLATION IS NOT SOLD AS | |||
| 24 | AN ASSEMBLY. ORDER INDIVIDUAL COMPONENT PARTS.) |
