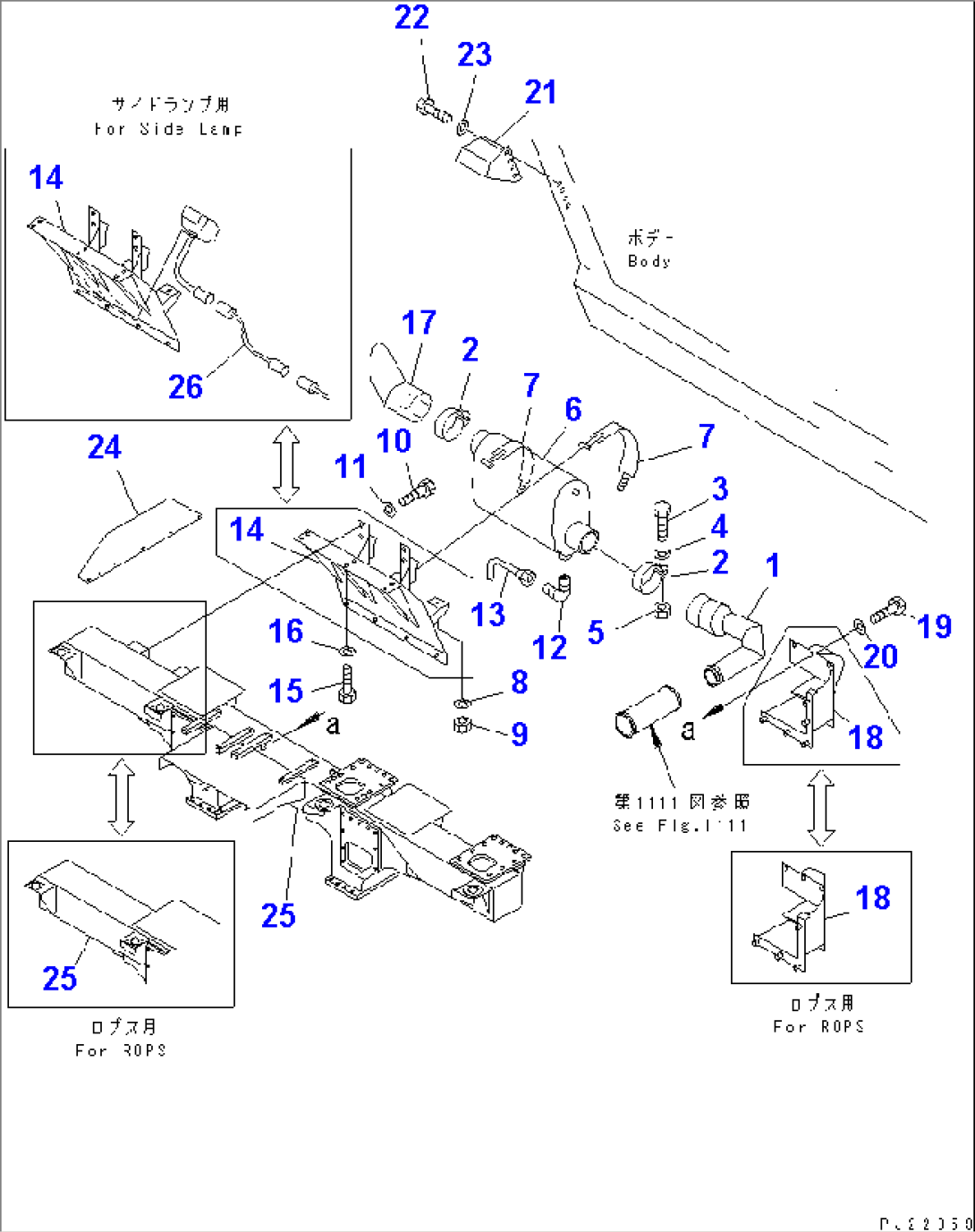

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-84-6A261 | TUBE | 5485- | |
| 1 | 566-84-6A260 | TUBE | 5001-5484 | |
| 2 | 562-96-19660 | BAND | 5001- | |
| 3 | 01010-81030 | BOLT | .- | |
| 3 | \0\01010-51030 | BOLT | 5001-. | |
| 4 | 01643-31032 | WASHER | 5001- | |
| 5 | 01580-11008 | NUT | 5001- | |
| 6 | 566-92-82111 | MUFFLER | 5001- | |
| 7 | 566-84-6A170 | BAND | 5001- | |
| 8 | 01643-31232 | WASHER | 5001- | |
| 9 | 01582-11210 | NUT | 5001- | |
| 10 | 01010-81225 | BOLT | .- | |
| 10 | \0\01010-51225 | BOLT | 5001-. | |
| 11 | 01643-31232 | WASHER | 5001- | |
| 12 | 07217-70813 | ELBOW | .- | |
| 12 | \0\07217-50813 | ELBOW | 5001-. | |
| 13 | 566-92-82161 | TUBE | 5001- | |
| 14 | 566-84-6A110 | FENDER,(WITH MUFFLER) | 5001- | |
| 14 | 566-84-6A211 | FENDER,(FOR ROPS) | 6001- | |
| 14 | 566-84-6A210 | FENDER,(FOR ROPS) | 5001-5999 | |
| 14 | 566-84-6A421 | FENDER,(FOR SIDE LAMP) | 6001- | |
| 14 | 566-84-6A420 | FENDER,(FOR SIDE LAMP) | 5001-5999 | |
| 14 | 566-89-6F220 | FENDER,(FOR EU NEW NOISE ARRANGEMENT) | 6001- | |
| 15 | 01010-81230 | BOLT | .- | |
| 15 | \0\01010-51230 | BOLT | 5001-. | |
| 16 | 01643-31232 | WASHER | 5001- | |
| 17 | 566-84-6A270 | TUBE | 5001- | |
| 18 | 566-84-6A120 | COVER | 5001- | |
| 18 | 566-84-6A220 | COVER,(FOR ROPS) | 5001- | |
| 19 | 01010-81020 | BOLT | .- | |
| 19 | \0\01010-51020 | BOLT | 5001-. | |
| 20 | 01643-31032 | WASHER | 5001- | |
| 21 | 566-84-6A160 | GUARD | 5001- | |
| 22 | 01010-81225 | BOLT | .- | |
| 22 | \0\01010-51225 | BOLT | 5001-. | |
| 23 | 01643-31232 | WASHER | 5001- | |
| 24 | 569-54-61592 | GUARD | 6288- | |
| 24 | \0\569-54-61593 | GUARD | 6280-6287 | |
| 24 | \0\566-84-6A281 | GUARD | 6001-6279 | |
| 24 | 566-84-6A280 | GUARD | 5001-5999 | |
| 25 | (566-84-6A141) | SUPPORT,REAR | 5485- | |
| 25 | 566-84-6A140 | SUPPORT,REAR | 5001-5484 | |
| 25 | (566-84-6A711) | SUPPORT,REAR (FOR ROPS) | 6001- | |
| 25 | (566-84-6A241) | SUPPORT,REAR (FOR ROPS) | 5485-5999 | |
| 25 | 566-84-6A240 | SUPPORT,REAR (FOR ROPS) | 5001-5484 | |
| 26 | 391-06-12580 | CABLE,(FOR SIDE LAMP) | 5001- |
