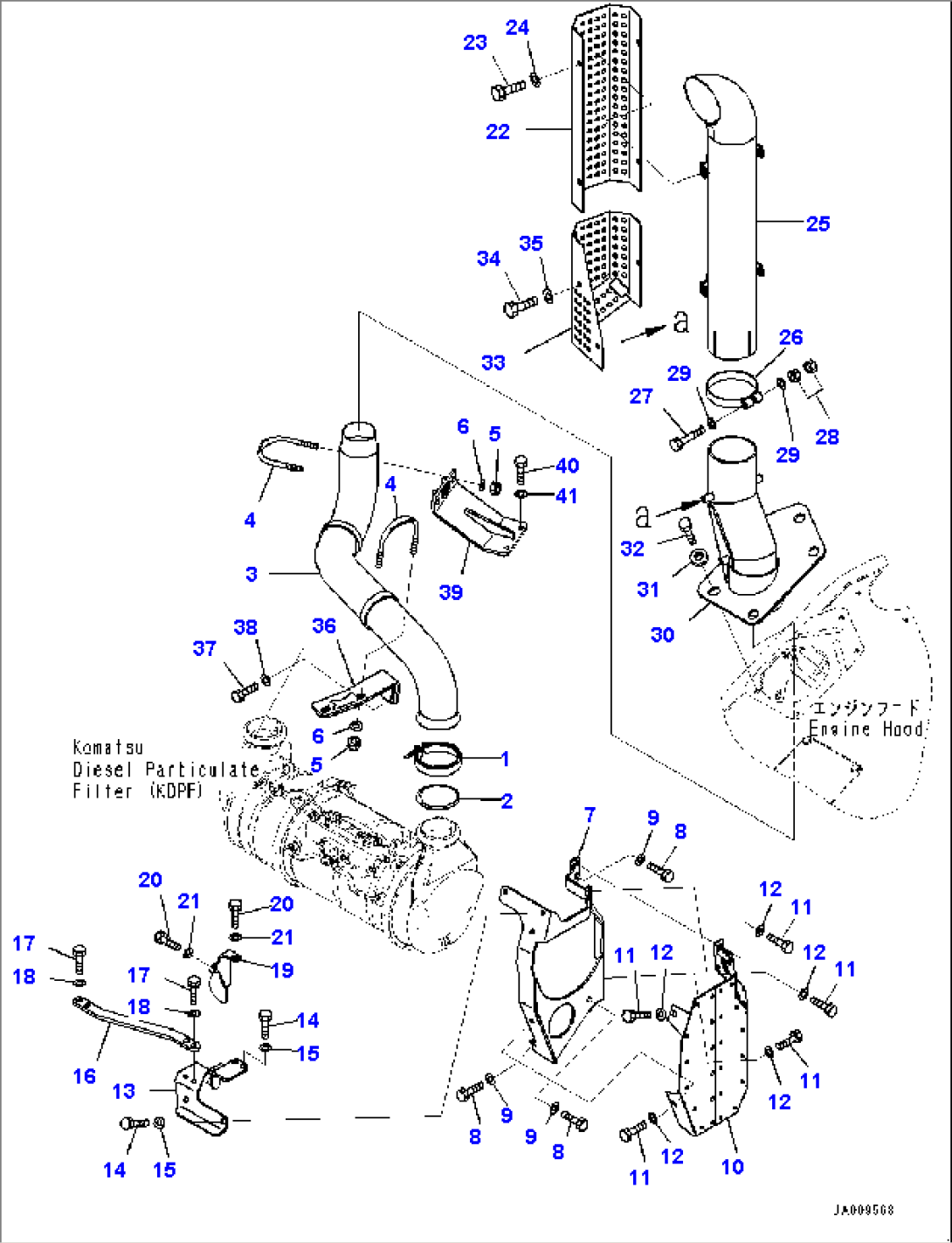

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6520-91-1020 | Clamp | 30001-@ | |
| 2 | 6520-91-1030 | Gasket | 30001-@ | |
| 3 | 13Y-02-11243 | Tube | 30001-@ | |
| 4 | 07283-31087 | Clip, Pipe | 30001-30615 | |
| 5 | 01597-01211 | Nut | 30001-30615 | |
| 6 | 01643-31232 | Washer | 30001-30615 | |
| 7 | 13Y-01-13113 | Bracket | 30001-@ | |
| 8 | 01010-81025 | Bolt | 30001-@ | |
| 9 | 01643-31032 | Washer | 30001-@ | |
| 10 | 13Y-01-13123 | Cover | 30001-@ | |
| 11 | 01010-81025 | Bolt | 30001-@ | |
| 12 | 01643-31032 | Washer | 30001-@ | |
| 13 | 13Y-01-13133 | Bracket | 30001-@ | |
| 14 | 01010-81025 | Bolt | 30001-@ | |
| 15 | 01643-31032 | Washer | 30001-@ | |
| 16 | 13Y-01-13141 | Plate | 30001-@ | |
| 17 | 01010-81035 | Bolt | 30001-@ | |
| 18 | 01643-31032 | Washer | 30001-@ | |
| 19 | 13Y-01-13180 | Plate | 30001-@ | |
| 20 | 01010-81030 | Bolt | 30001-@ | |
| 21 | 01643-31032 | Washer | 30001-@ | |
| 22 | 13Y-01-11791 | Cover | 30001-@ | |
| 23 | 01010-D1020 | Bolt | 30001-@ | |
| 24 | 01643-71032 | Washer | 30001-@ | |
| 25 | 13Y-01-12372 | Pipe | 30001-@ | |
| 26 | 421-02-31120 | Clamp | 30001-@ | |
| 27 | 01010-81285 | Bolt | 30001-@ | |
| 28 | 01580-11210 | Nut | 30001-@ | |
| 29 | 01640-21223 | Washer, Flat | 30001-@ | |
| 30 | 13Y-01-11772 | Pipe | 30001-@ | |
| 31 | 11Y-54-11370 | Washer | 30001-@ | |
| 32 | 01010-D1240 | Bolt | 30001-@ | |
| 33 | 13Y-01-11781 | Cover | 30001-@ | |
| 34 | 01010-D1020 | Bolt | 30001-@ | |
| 35 | 01643-71032 | Washer | 30001-@ | |
| 36 | 13Y-01-12761 | Bracket | 30001-@ | |
| 37 | 01010-81035 | Bolt | 30001-@ | |
| 38 | 01643-31032 | Washer | 30001-@ | |
| 39 | 13Y-01-12751 | Bracket | 30001-@ | |
| 40 | 01010-81035 | Bolt | 30001-@ | |
| 41 | 01643-31032 | Washer | 30001-@ |
