| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 124-01-61681 | PIPE | 69001- | |
| 2 | 421-02-31120 | CLAMP | 69001- | |
| 3 | 01010-71285 | BOLT | 69001- | |
| 4 | 01643-11232 | WASHER | 69001- | |
| 5 | 01640-31223 | WASHER | 69001- | |
| 6 | 01580-31210 | NUT | 69001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65px 15e0 s/n 69001 up (ecot3)
- Engine related parts
- Exhaust pipe (elbow type) (eu silent spec.)
Поиск по каталогу

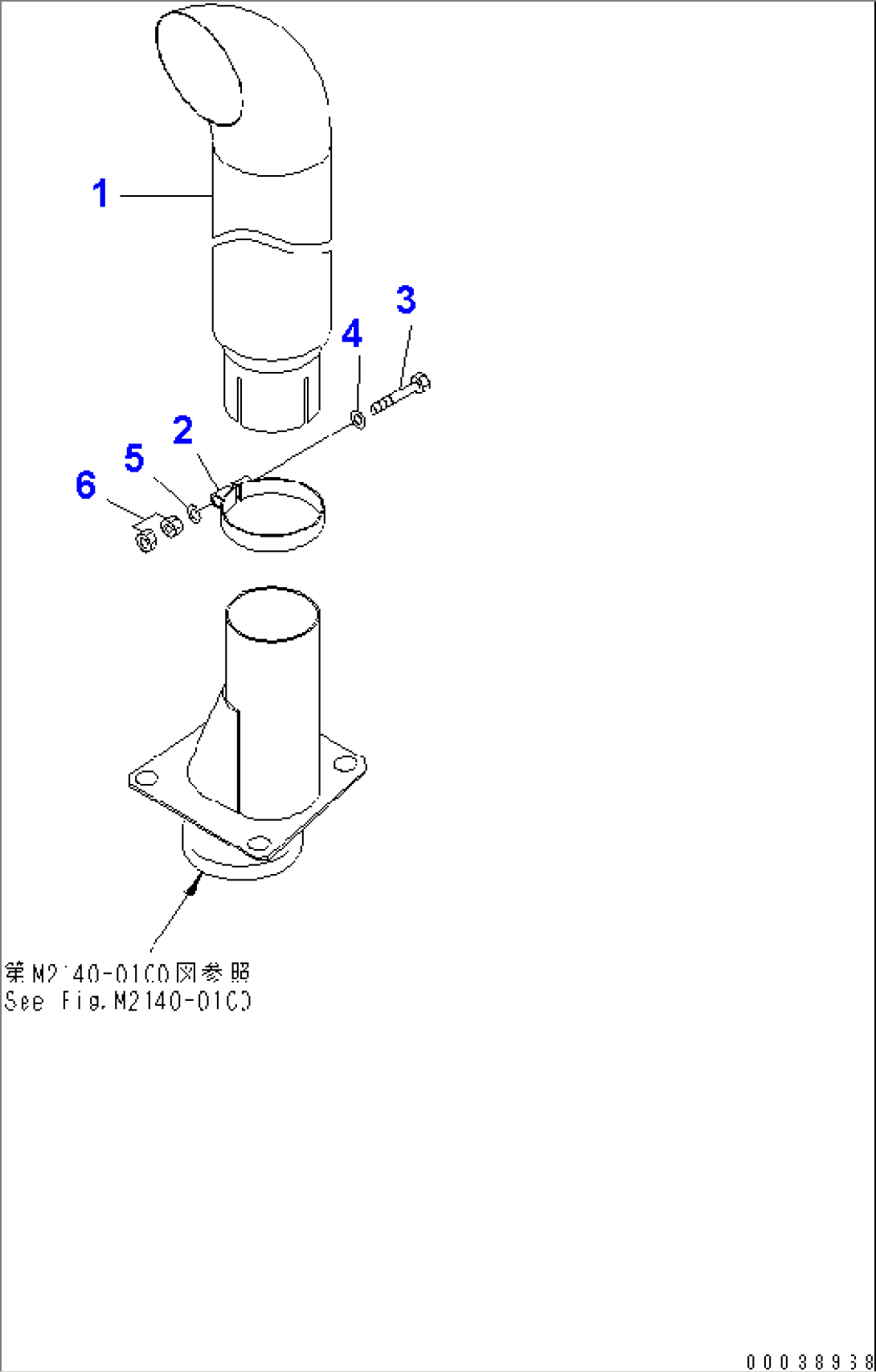

EXHAUST PIPE (ELBOW TYPE) (EU SILENT SPEC.)
