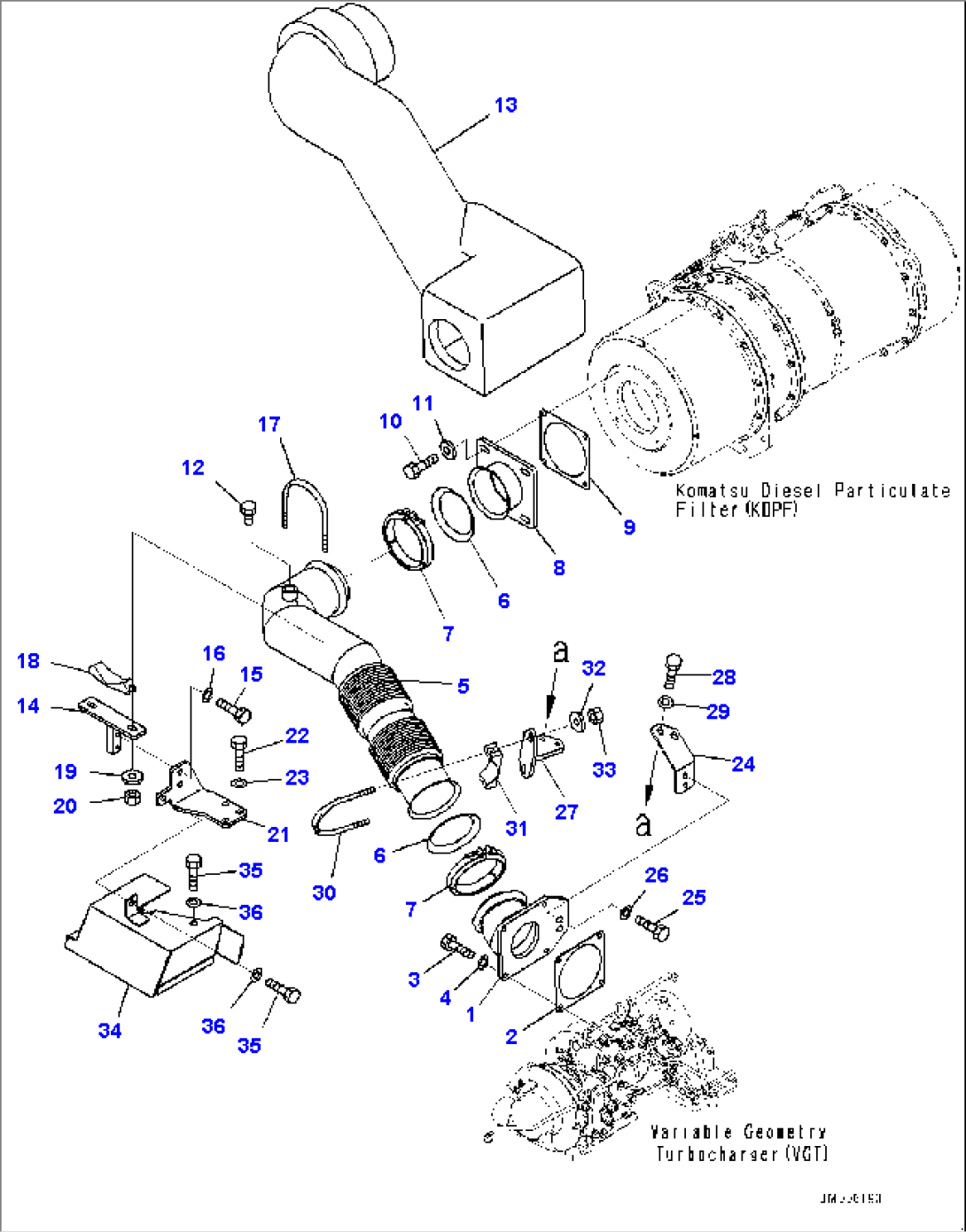

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-02-51830 | Tube | 10001- | |
| 2 | 6262-11-5490 | Gasket | 10001- | |
| 3 | 01010-E1235 | Bolt | 10001- | |
| 4 | 01643-31232 | Washer | 10001- | |
| 5 | 56B-02-51410 | Tube | 10001- | |
| 6 | 6535-91-1130 | Gasket | 10001- | |
| 7 | 6535-91-1120 | Clamp | 10001- | |
| 8 | 56B-02-51440 | Tube | 10001- | |
| 9 | 6262-11-5490 | Gasket | 10001- | |
| 10 | 01020-11235 | Bolt, Stainless | 10001- | |
| 11 | 22B-46-24380 | Washer | 10001- | |
| 12 | 6252-11-5910 | Plug | 10001- | |
| 13 | 56B-02-51420 | Cover | 10001- | |
| 14 | 56B-02-51320 | Bracket | 10001- | |
| 15 | 01010-81230 | Bolt | 10001- | |
| 16 | 01643-31232 | Washer | 10001- | |
| 17 | 425-02-41130 | Clip | 10001- | |
| 18 | 425-02-41141 | Seat | 10001- | |
| 19 | 130-43-64260 | Collar | 10001- | |
| 20 | 01597-01211 | Nut | 10001- | |
| 21 | 56B-02-51470 | Bracket | 10001- | |
| 22 | 01010-81230 | Bolt | 10001- | |
| 23 | 01643-31232 | Washer | 10001- | |
| 24 | 56B-02-51460 | Bracket | 10001- | |
| 25 | 01020-11240 | Bolt, Stainless | 10001- | |
| 26 | 01643-31232 | Washer | 10001- | |
| 27 | 56B-02-51480 | Bracket | 10001- | |
| 28 | 01010-81235 | Bolt | 10001- | |
| 29 | 01643-31232 | Washer | 10001- | |
| 30 | 56B-02-51690 | U-bolt | 10001- | |
| 31 | 56B-02-51550 | Seat | 10001- | |
| 32 | 130-43-64260 | Collar | 10001- | |
| 33 | 01597-01211 | Nut | 10001- | |
| 34 | 56B-02-57180 | Cover | 10001- | |
| 35 | 01010-81230 | Bolt | 10001- | |
| 36 | 01643-31232 | Washer | 10001- |
