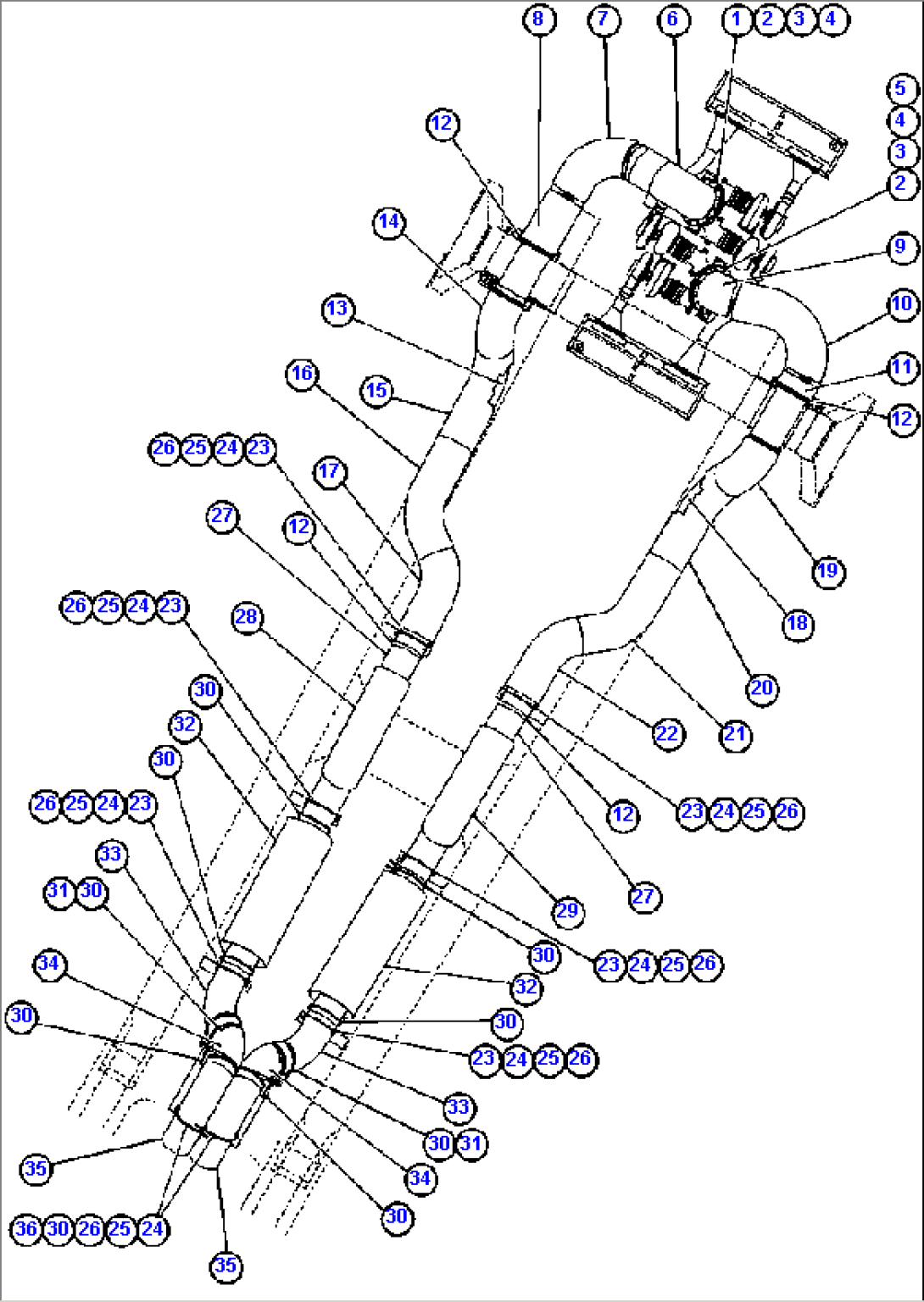

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH3887 | TUBE, EXHAUST - L.H. | ||
| 2 | VC4744 | CAPSCREW - 5/8" - 11NC X 2 1/2" | ||
| 3 | VC1390 | LOCKWASHER - 5/8" | ||
| 4 | TV1749 | NUT - 5/8" - 11NC | ||
| 5 | EH3885 | TUBE, EXHAUST - R.H. | ||
| 6 | EH5101 | BLANKET, EXHAUST - L.H. | ||
| 7 | EH5102 | BLANKET, EXHAUST - L.H. | ||
| 8 | EH5103 | BLANKET, EXHAUST - L.H. | ||
| 9 | EH7474 | BLANKET, EXHAUST - R.H. | ||
| 10 | EH7475 | BLANKET, EXHAUST - R.H. | ||
| 11 | EH5106 | BLANKET, EXHAUST - R.H. | ||
| 12 | PB7997 | CLAMP, V-BAND | ||
| 13 | ED2493 | TUBE, EXHAUST - L.H. | ||
| 14 | ED7992 | BLANKET, EXHAUST - L.H. | ||
| 15 | ED7994 | BLANKET, EXHAUST - L.H. | ||
| 16 | ED7996 | FLANKET, EXHAUST - L.H. | ||
| 17 | ED7998 | BLANKET, EXHAUST - L.H. | ||
| 18 | ED2492 | TUBE, EXHAUST - R.H. | ||
| 19 | ED7991 | BLANKET, EXHAUST - R.H. | ||
| 20 | ED7993 | BLANKET, EXHAUST - R.H. | ||
| 21 | ED7995 | BLANKET, EXHAUST - R.H. | ||
| 22 | ED7997 | BLANKET, EXHAUST - R.H. | ||
| 23 | TZ3931 | ROD, BENT | ||
| 24 | C1547 | FLAT, WASHER - 3/8" | ||
| 25 | C0312 | LOCKWASHER - 3/8" | ||
| 26 | C1521 | NUT - 3/8" - 16NC | ||
| 27 | EG8011 | TUBE, EXHAUST | ||
| 28 | EG8702 | BLANKET, EXHAUST - L.H. | ||
| 29 | EG8701 | BLANKET, EXHAUST - R.H. | ||
| 30 | TA6490 | CLAMP ASSEMBLY | ||
| 30 | TA6483 | CLAMP | ||
| 30 | TA6491 | U-BOLT - 3/8" - 16NC | ||
| 30 | C0312 | LOCKWASHER - 3/8" | ||
| 30 | C1521 | NUT - 3/8" - 16NC | ||
| 31 | EF1737 | ADAPTOR | ||
| 32 | PB8431 | MUFFLER, EXHAUST | ||
| 33 | EG6258 | TUBE, EXHAUST | ||
| 34 | EF7098 | TUBE, EXHAUST | ||
| 35 | TZ4042 | TUBE, EXHAUST | ||
| 36 | EG6259 | PLATE |
