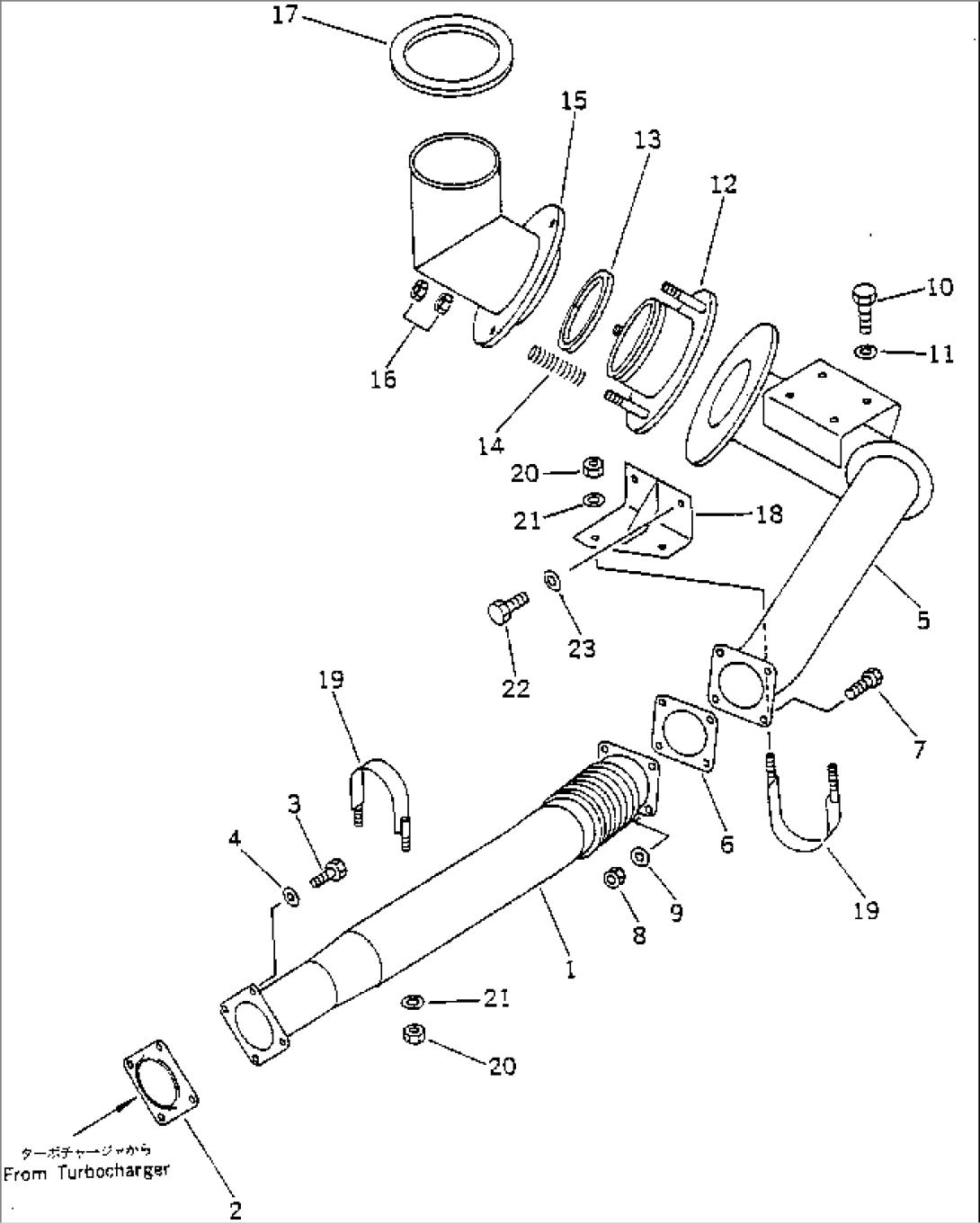

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-02-61110 | TUBE | 1001- | |
| 2 | 6131-15-5350 | GASKET | 1001- | |
| 3 | 01010-51025 | BOLT | 1001- | |
| 4 | 01643-31032 | WASHER | 1001- | |
| 5 | 567-02-61131 | TUBE | 1001- | |
| 6 | 515-02-11310 | GASKET | 1001- | |
| 7 | 01010-51030 | BOLT | 1001- | |
| 8 | 01580-11008 | NUT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 01010-51230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 566-02-41130 | TUBE | 1001- | |
| 13 | 566-02-11420 | RING | 1001- | |
| 14 | 562-13-16750 | SPRING | 1001- | |
| 15 | 566-02-41140 | TUBE | 1001- | |
| 16 | 01580-11411 | NUT | 1001- | |
| 17 | 566-02-41150 | PLATE (WELDED) | 1001- | |
| 18 | 567-02-61150 | BRACKET | 1001- | |
| 19 | 562-02-12471 | BAND | 1001- | |
| 20 | 01580-11008 | NUT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 01010-51025 | BOLT | 1001- | |
| 23 | 01643-31032 | WASHER | 1001- |
