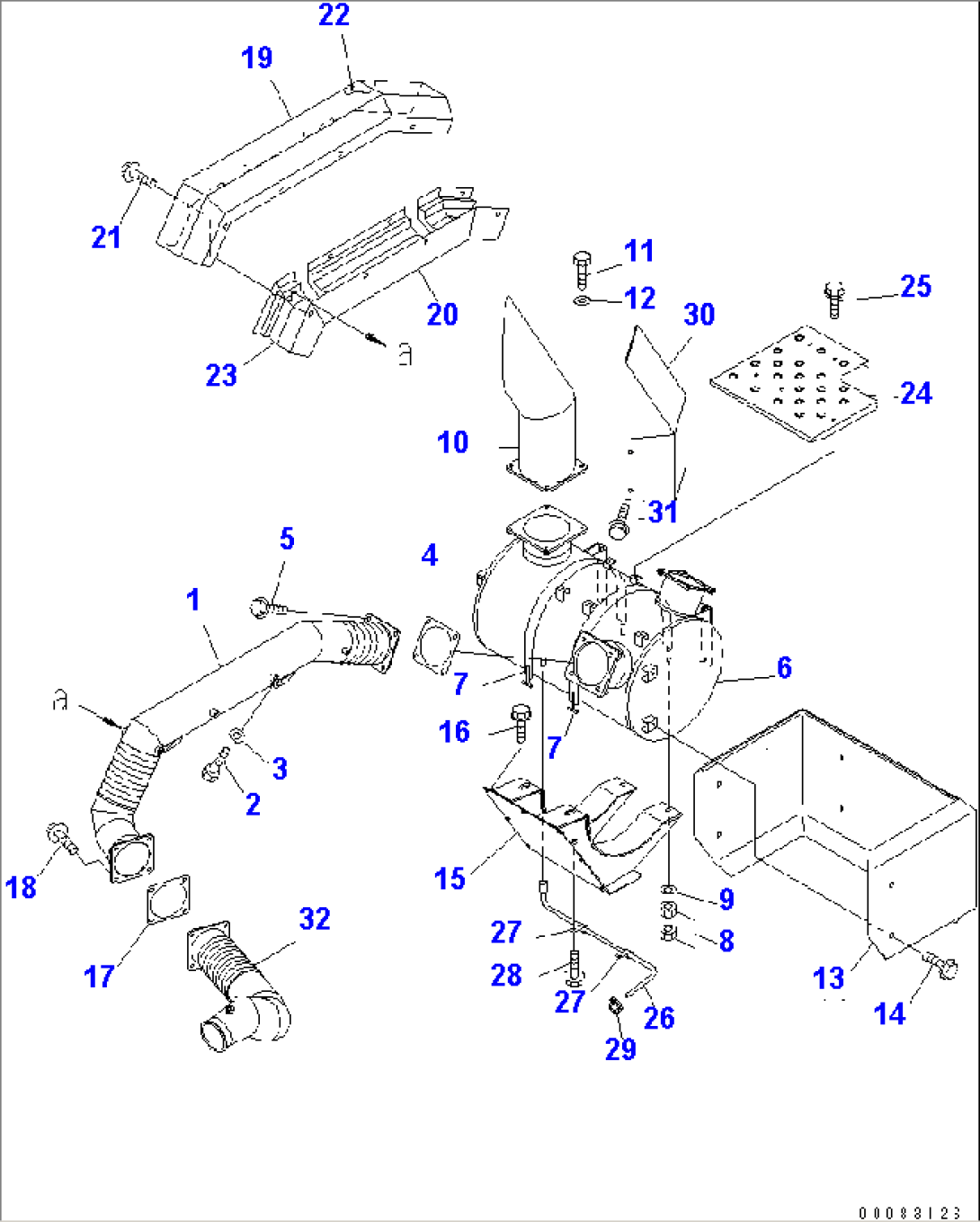

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-02-11624 | TUBE | A10001- | |
| 2 | 01010-81225 | BOLT | A10001- | |
| 3 | 124-54-26540 | WASHER | A10001- | |
| 4 | 56B-02-11591 | GASKET | A10001- | |
| 5 | 01435-01025 | BOLT | A10001- | |
| 6 | 56B-02-11651 | MUFFLER | A10001- | |
| 7 | 56B-02-11180 | BAND | A10001- | |
| 8 | 01582-11210 | NUT | A10001- | |
| 9 | 01643-31232 | WASHER | A10001- | |
| 10 | 56B-02-11630 | TUBE | A10001- | |
| 11 | 01010-81235 | BOLT | A10001- | |
| 12 | 01643-31232 | WASHER | A10001- | |
| 13 | 56B-02-11152 | COVER | A10001- | |
| 14 | 01435-01016 | BOLT | A10001- | |
| 15 | 56B-02-11210 | BRACKET | A10001- | |
| 16 | 01435-01220 | BOLT | A10001- | |
| 17 | 56B-02-11591 | GASKET | A10001- | |
| 18 | 01435-01025 | BOLT | A10001- | |
| 19 | 56B-02-11572 | COVER | A10001- | |
| 20 | 56B-02-11582 | COVER | A10001- | |
| 21 | 01435-01016 | BOLT | A10001- | |
| 22 | 56B-02-11522 | COVER | A10001- | |
| 23 | 56B-02-11532 | COVER | A10001- | |
| 24 | 56B-02-11642 | COVER | A10001- | |
| 25 | 01435-01016 | BOLT | A10001- | |
| 26 | 56B-02-11660 | TUBE | A10001- | |
| 27 | 04434-51310 | CLIP | A10001- | |
| 28 | 01435-01016 | BOLT | A10001- | |
| 29 | 08037-02512 | GROMMET | A10001- | |
| 30 | 56B-02-11680 | COVER | A10001- | |
| 31 | 01435-01016 | BOLT | A10001- | |
| 32 | TUBE,(SEE FIG. B0130-01A0) | A10001- | ||
| TUBE,(SEE FIG. B0130-01A1) | A10001- |
