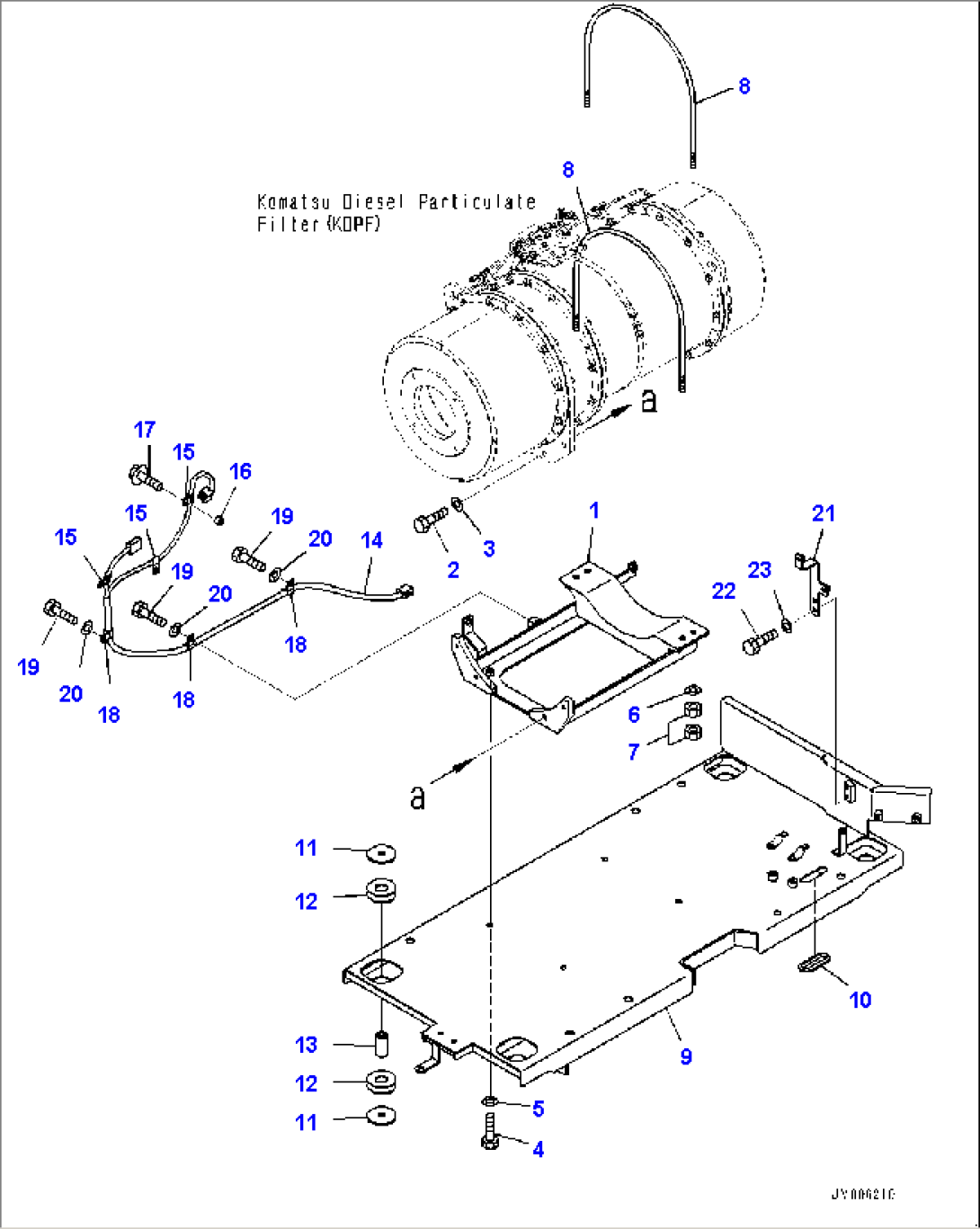

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-02-51210 | Bracket | 10001- | |
| 2 | 01010-81240 | Bolt | 10001- | |
| 3 | 01643-31232 | Washer | 10001- | |
| 4 | 01010-81230 | Bolt | 10001- | |
| 5 | 01643-31232 | Washer | 10001- | |
| 6 | 208-01-41560 | Washer | 10001- | |
| 7 | 01580-71210 | Nut | 10001- | |
| 8 | 6263-11-6570 | U-bolt | 10001- | |
| 9 | 56B-54-52130 | Bracket | 10001- | |
| 10 | 423-925-5930 | Grommet | 10001- | |
| 11 | 565-54-12841 | Washer | 10001- | |
| 12 | 566-54-12213 | Cushion | 10001- | |
| 13 | 56D-54-52930 | Spacer | 10001- | |
| 14 | 56B-06-53450 | Wiring Harness | 10001- | |
| 15 | 04434-51010 | Clip | 10001- | |
| 16 | 421-06-12780 | Spacer | 10001- | |
| 17 | 01435-01030 | Bolt | 10001- | |
| 18 | 04434-51410 | Clip | 10001- | |
| 19 | 01010-81020 | Bolt | 10001- | |
| 20 | 01643-31032 | Washer | 10001- | |
| 21 | 56B-06-52160 | Bracket | 10001- | |
| 22 | 01010-81020 | Bolt | 10001- | |
| 23 | 01643-31032 | Washer | 10001- |
