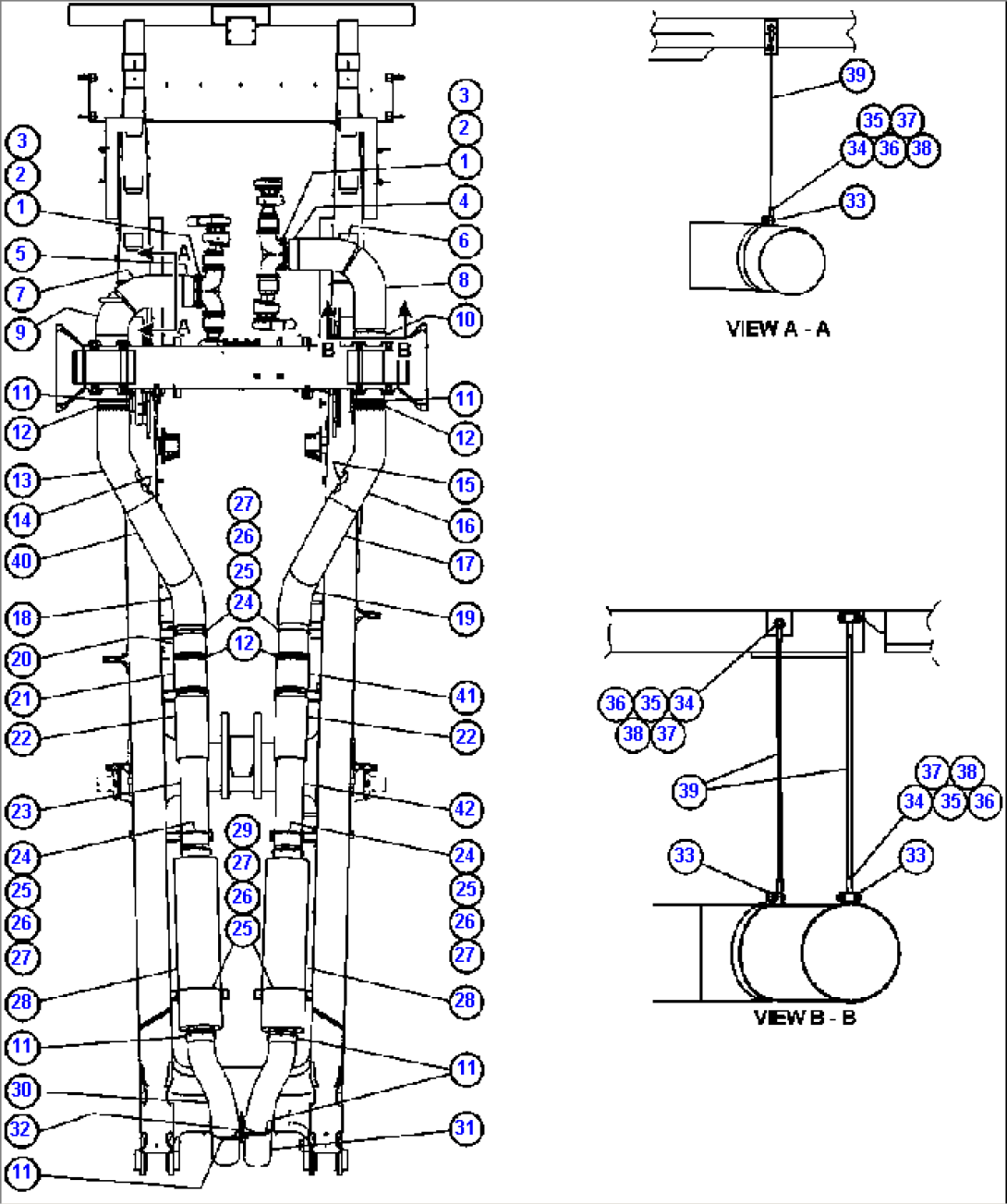

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0080 | CAPSCREW - M16 X 2.00 X 50 | | |
| 2 | MM0464 | FLAT WASHER - M16 | | |
| 3 | MM0181 | NUT - M16 X 2.00 | | |
| 4 | EJ1956 | TUBE, EXHAUST - R.H. | | |
| 5 | EJ1957 | TUBE, EXHAUST - L.H. | | |
| 6 | EJ2422 | BLANKET, EXHAUST | | |
| 7 | EJ2420 | BLANKET, EXHAUST | | |
| 8 | EJ2423 | BLANKET, EXHAUST | | |
| 9 | EJ2421 | BLANKET, EXHAUST | | |
| 10 | EJ2424 | BLANKET, EXHAUST | | |
| 11 | TA6490 | CLAMP ASSEMBLY | | |
| 11 | TA6483 | CLAMP | | |
| 11 | TA6491 | U-BOLT - 3/8" - 16NC | | |
| 11 | C0312 | LOCKWASHER - 3/8" | | |
| 11 | C1521 | NUT - 3/8" - 16NC | | |
| 12 | PB7997 | CLAMP, V-BAND | | |
| 13 | EM1616 | BLANKET, EXHAUST | | |
| 14 | EM1613 | TUBE, EXHAUST - L.H. | | |
| 15 | EM2028 | TUBE, EXHAUST - R.H. | | |
| 16 | EM2025 | BLANKET, EXHAUST | | |
| 17 | EM2024 | BLANKET, EXHAUST | | |
| 18 | EM1614 | BLANKET, EXHAUST | | |
| 19 | EM2023 | BLANKET, EXHAUST | | |
| 20 | PB8129 | BLANKET, EXHAUST | | |
| 21 | PB8128 | BLANKET, EXHAUST | | |
| 22 | PB8127 | BLANKET, EXHAUST | | |
| 23 | EJ2482 | TUBE, EXHAUST - L.H. | | |
| 24 | TA6491 | U-BOLT - 3/8" - 16NC | | |
| 25 | C1547 | FLAT WASHER - 3/8" | | |
| 26 | C0312 | LOCKWASHER - 3/8" | | |
| 27 | C1521 | NUT - 3/8" - 16NC | | |
| 28 | EH9967 | MUFFLER | | |
| 29 | EJ2175 | U-BOLT | | |
| 30 | EJ2167 | BENT TUBE, REAR EXHAUST | | |
| 31 | EJ2166 | BENT TUBE, REAR EXHAUST | | |
| 32 | EG6259 | PLATE | | |
| 33 | EJ9909 | CLAMP | | |
| 34 | PC1247 | ROD END, FEMALE (SPECIAL) | | |
| 35 | TL8151 | NUT, JAM - 1/2" - 20 NF | | |
| 36 | WA4728 | FLAT WASHER - 1/2" (HARDENED) | | |
| 37 | DF3500 | LOCKNUT - 1/2" - 13NC | | |
| 38 | WA0471 | CAPSCREW - 1/2" - 13NC X 2 1/4" | | |
| 39 | EK1741 | ROD, THREADED | | |
| 40 | EM1615 | BLANKET, EXHAUST | | |
| 41 | EM2519 | BLANKET, EXHAUST | | |
| 42 | EM2502 | TUBE, EXHAUST - R.H. | | |
