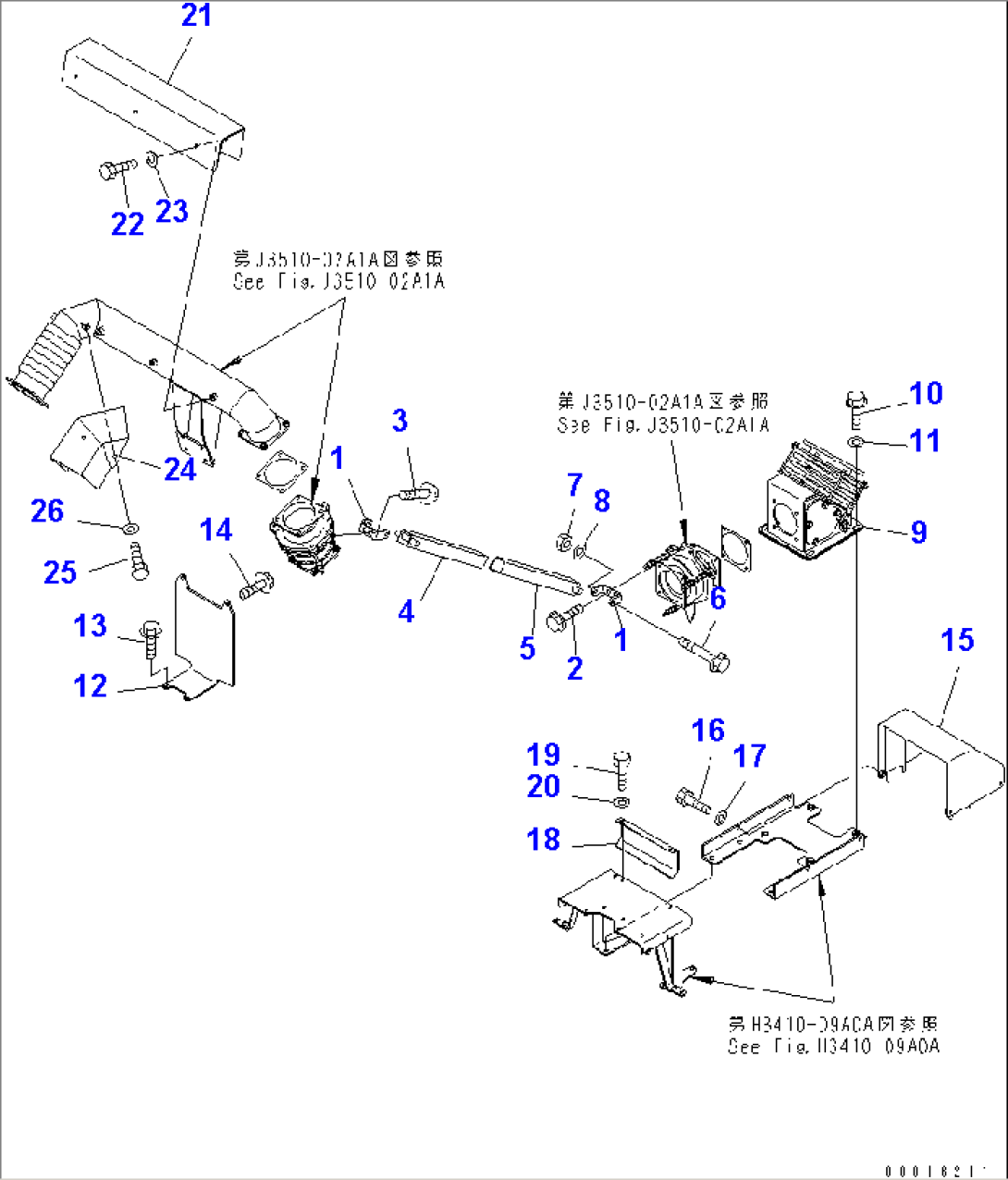

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-02-11351 | BRACKET | 1001- | |
| 2 | 01435-01235 | BOLT | 1001- | |
| 3 | 01435-01225 | BOLT | 1001- | |
| 4 | 56D-02-11334 | GUIDE | 1022- | |
| 5 | 56D-02-11344 | GUIDE | 1001- | |
| 6 | 01436-01230 | BOLT | 1001- | |
| 7 | 01580-11210 | NUT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | (56B-02-11402) | EXHAUST BOX ASS'Y | 1001- | |
| 10 | 01435-01235 | BOLT | 1001- | |
| 11 | 01643-31445 | WASHER | 1001- | |
| 12 | 56D-02-11562 | COVER | 1001- | |
| 13 | 01435-01025 | BOLT | 1001- | |
| 14 | 01435-01020 | BOLT | 1001- | |
| 15 | 56D-02-11310 | COVER | 1022- | |
| 16 | 01435-81025 | BOLT | 1022- | |
| 17 | 01643-31032 | WASHER | 1022- | |
| 18 | 56D-02-11360 | COVER | 1022- | |
| 19 | 01010-81020 | BOLT | 1022- | |
| 20 | 01643-31032 | WASHER | 1022- | |
| 21 | 56D-02-11760 | COVER | 1022- | |
| 22 | 01010-81016 | BOLT | 1022- | |
| 23 | 01643-31032 | WASHER | 1022- | |
| 24 | 56D-02-11770 | COVER | 1022- | |
| 25 | 01010-81016 | BOLT | 1022- | |
| 26 | 01643-31032 | WASHER | 1022- |
