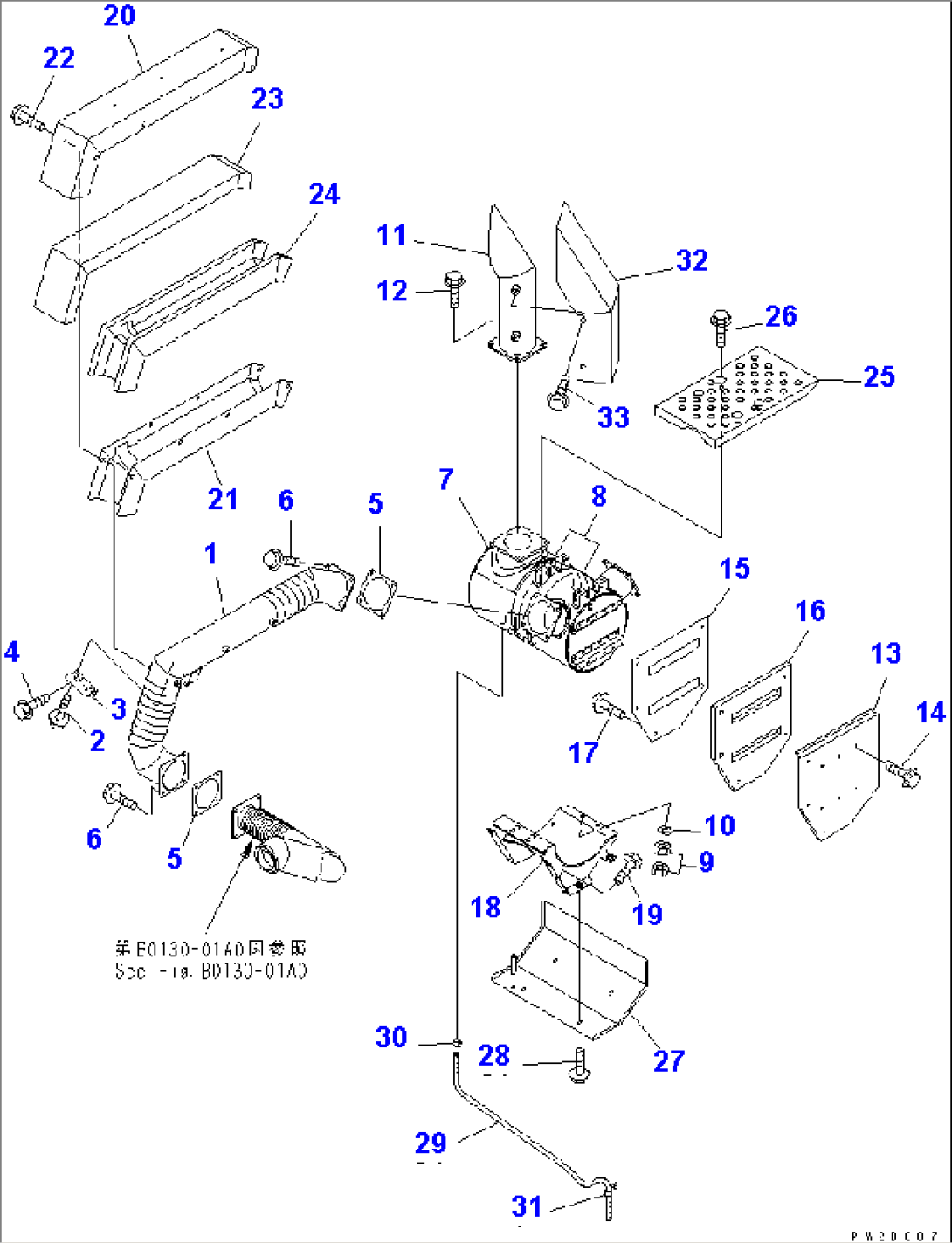

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-02-11142 | TUBE | 1001-1172 | |
| 2 | 01435-01020 | BOLT | 1001-1172 | |
| 3 | 56D-02-11720 | BRACKET | 1001-1172 | |
| 4 | 01435-01220 | BOLT | 1001-1172 | |
| 5 | 56B-02-11591 | GASKET | 1001-1172 | |
| 6 | 01435-01025 | BOLT | 1001-1172 | |
| 7 | 56D-02-11650 | MUFFLER | 1001-1172 | |
| 8 | 566-84-6A170 | BAND | 1001-1172 | |
| 9 | 01582-11210 | NUT | 1001-1172 | |
| 10 | 01643-31232 | WASHER | 1001-1172 | |
| 11 | 56D-02-11192 | TUBE | 1001-1172 | |
| 12 | 01435-01030 | BOLT | 1001-1172 | |
| 13 | 56D-02-11152 | COVER | 1001-1172 | |
| 14 | 01435-00812 | BOLT | 1001-1172 | |
| 15 | 56D-02-11161 | PLATE | 1001-1172 | |
| 16 | 56D-02-11171 | SHEET | 1001-1172 | |
| 17 | 01435-00812 | BOLT | 1001-1172 | |
| 18 | 56D-02-11211 | BRACKET | 1001-1172 | |
| 19 | 01435-01225 | BOLT | 1001-1172 | |
| 20 | 56D-02-11571 | COVER | 1001-1172 | |
| 21 | 56D-02-11581 | COVER | 1001-1172 | |
| 22 | 01435-01016 | BOLT | 1001-1172 | |
| 23 | 56D-02-11520 | COVER | 1001-1172 | |
| 24 | 56D-02-11530 | COVER | 1001-1172 | |
| 25 | 56D-02-11640 | COVER | 1001-1172 | |
| 26 | 01435-01016 | BOLT | 1001-1172 | |
| 27 | 56D-02-11711 | COVER | 1001-1172 | |
| 28 | 01435-01020 | BOLT | 1001-1172 | |
| 29 | 07287-01410 | HOSE | 1001-1172 | |
| 30 | 07285-00180 | CLIP | 1001-1172 | |
| 31 | 04434-51812 | CLIP | 1001-1172 | |
| 32 | 56D-02-11680 | COVER | 1001-1172 | |
| 33 | 01435-01016 | BOLT | 1001-1172 |
