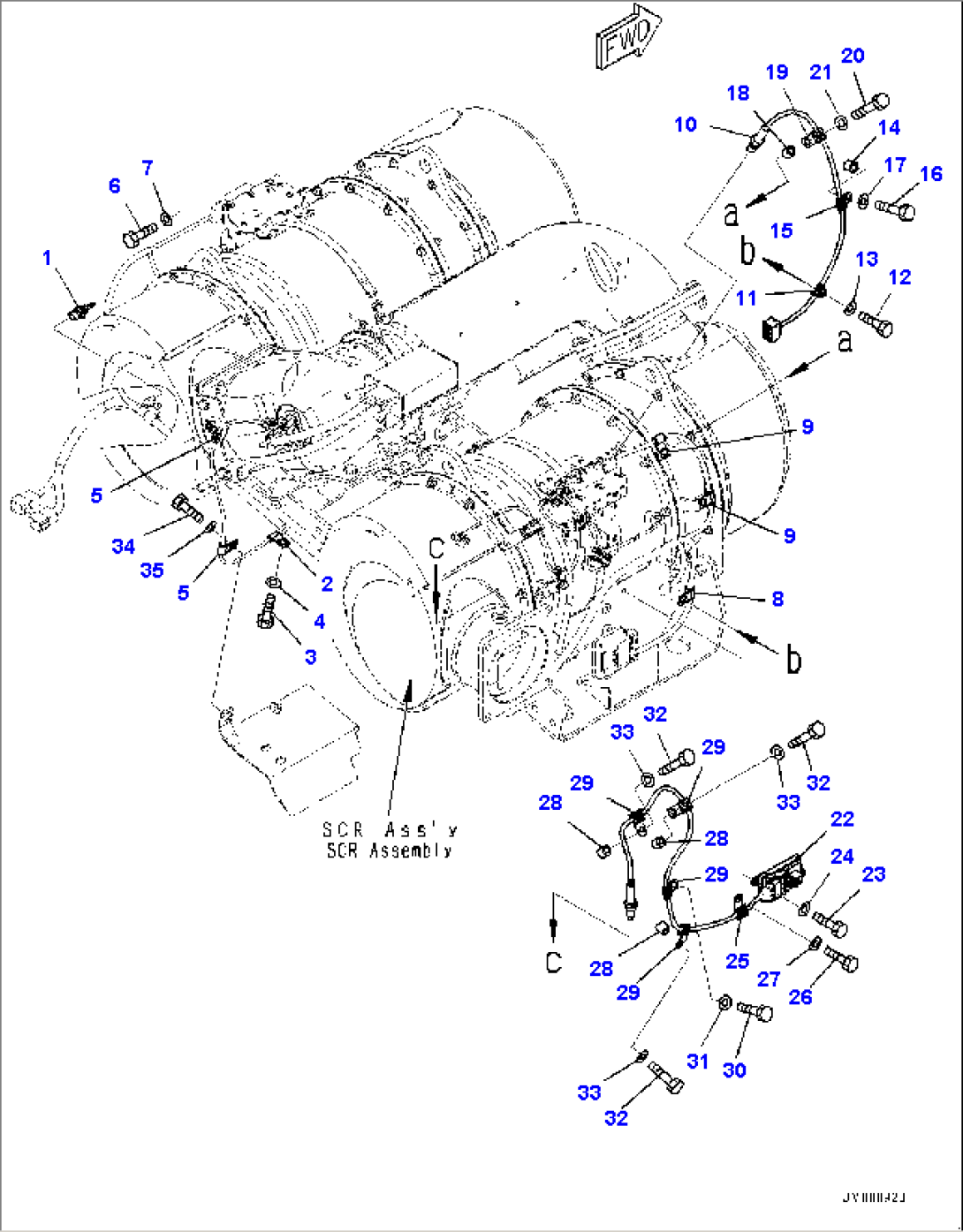

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6560-61-7300 | Sensor, Inside Air Temperature | 50001- | |
| 6735-21-1930 | O-ring | 50001- | ||
| 2 | 04434-50812 | Clip | 50001- | |
| 3 | 01010-81225 | Bolt | 50001- | |
| 4 | 01643-31232 | Washer | 50001- | |
| 5 | 04434-50812 | Clip | 50001- | |
| 6 | 01010-81220 | Bolt | 50001- | |
| 7 | 01643-31232 | Washer | 50001- | |
| 8 | 04434-51212 | Clip | 50001- | |
| 9 | 04434-51012 | Clip | 50001- | |
| 10 | 600-816-2830 | Sensor, Ammonia | 50001- | |
| 11 | 6253-81-4410 | Clip | 50001- | |
| 12 | 01010-81025 | Bolt | 50001- | |
| 13 | 01643-31032 | Washer | 50001- | |
| 14 | 6631-11-5630 | Spacer | 50001- | |
| 15 | 6253-81-4410 | Clip | 50001- | |
| 16 | 01010-81045 | Bolt | 50001- | |
| 17 | 01643-31032 | Washer | 50001- | |
| 18 | 6631-11-5630 | Spacer | 50001- | |
| 19 | 6253-81-4410 | Clip | 50001- | |
| 20 | 01010-81045 | Bolt | 50001- | |
| 21 | 01643-31032 | Washer | 50001- | |
| 22 | 600-816-2720 | Sensor, SCR Outlet NOx | 50001- | |
| 23 | 01010-80620 | Bolt | 50001- | |
| 24 | 01643-30623 | Washer | 50001- | |
| 25 | 6253-81-4410 | Clip | 50001- | |
| 26 | 01010-81025 | Bolt | 50001- | |
| 27 | 01643-31032 | Washer | 50001- | |
| 28 | 6631-11-5630 | Spacer | 50001- | |
| 29 | 6253-81-4410 | Clip | 50001- | |
| 30 | 01010-81025 | Bolt | 50001- | |
| 31 | 01643-31032 | Washer | 50001- | |
| 32 | 01010-81040 | Bolt | 50001- | |
| 33 | 01643-31032 | Washer | 50001- | |
| 34 | 01010-81225 | Bolt | 50001- | |
| 35 | 01643-31232 | Washer | 50001- |
