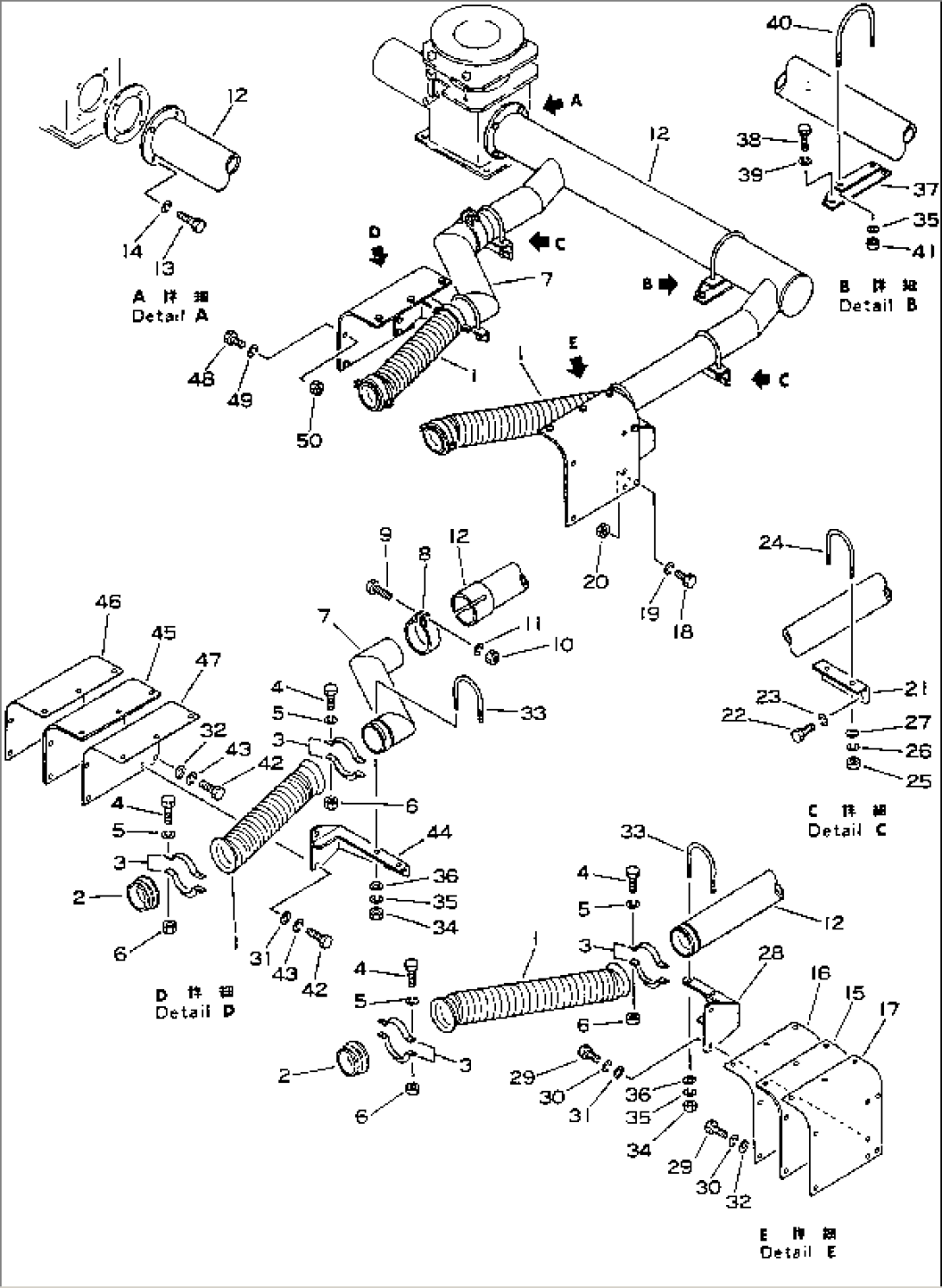

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-02-21210 | TUBE | 1002- | |
| 2 | 568-02-21220 | ADAPTER | 1002- | |
| 3 | 6685-11-5591 | BAND | 1002- | |
| 4 | 01010-50845 | BOLT | 1002- | |
| 5 | 01602-20825 | WASHER | 1002- | |
| 6 | 01580-10806 | NUT | 1002- | |
| 7 | 561-02-11120 | TUBE | 1002- | |
| 8 | 561-02-11130 | BAND | 1002- | |
| 9 | 01010-51030 | BOLT | 1002- | |
| 10 | 01580-11008 | NUT | 1002- | |
| 11 | 01602-21030 | WASHER | 1002- | |
| 12 | 561-02-11110 | TUBE | 1002- | |
| 13 | 01010-51230 | BOLT | 1002- | |
| 14 | 01602-21236 | WASHER | 1002- | |
| 15 | 561-02-31240 | PLATE | 1002- | |
| 16 | 561-02-31250 | PLATE | 1002- | |
| 17 | 561-02-31260 | PLATE | 1002- | |
| 18 | 01010-51225 | BOLT | 1002- | |
| 19 | 01602-21236 | WASHER | 1002- | |
| 20 | 01580-11210 | NUT | 1002- | |
| 21 | 561-02-11140 | BRACKET | 1002- | |
| 22 | 01010-51225 | BOLT | 1002- | |
| 23 | 01602-21236 | WASHER | 1002- | |
| 24 | 566-95-15160 | U-BOLT | 1002- | |
| 25 | 01580-11008 | NUT | 1002- | |
| 26 | 01602-21030 | WASHER | 1002- | |
| 27 | 01643-31032 | WASHER | 1002- | |
| 28 | 561-02-11150 | BRACKET | 1002- | |
| 29 | 01010-51225 | BOLT | 1002- | |
| 30 | 01602-21236 | WASHER | 1002- | |
| 31 | 01643-31232 | WASHER | 1002- | |
| 32 | 01643-31232 | WASHER | 1002- | |
| 33 | 566-95-15160 | U-BOLT | 1002- | |
| 34 | 01580-11008 | NUT | 1002- | |
| 35 | 01602-21030 | WASHER | 1002- | |
| 36 | 01643-31032 | WASHER | 1002- | |
| 37 | 561-02-11170 | BRACKET | 1002- | |
| 38 | 01010-51435 | BOLT | 1002- | |
| 39 | 01602-21442 | WASHER | 1002- | |
| 40 | 568-02-11230 | U-BOLT | 1002- | |
| 41 | 01580-11008 | NUT | 1002- | |
| 42 | 01010-51225 | BOLT | 1002- | |
| 43 | 01602-21236 | WASHER | 1002- | |
| 44 | 561-02-11160 | BRACKET | 1002- | |
| 45 | 561-02-31270 | PLATE | 1002- | |
| 46 | 561-02-31280 | PLATE | 1002- | |
| 47 | 561-02-31290 | PLATE | 1002- | |
| 48 | 01010-51225 | BOLT | 1002- | |
| 49 | 01602-21236 | WASHER | 1002- | |
| 50 | 01580-11210 | NUT | 1002- |
