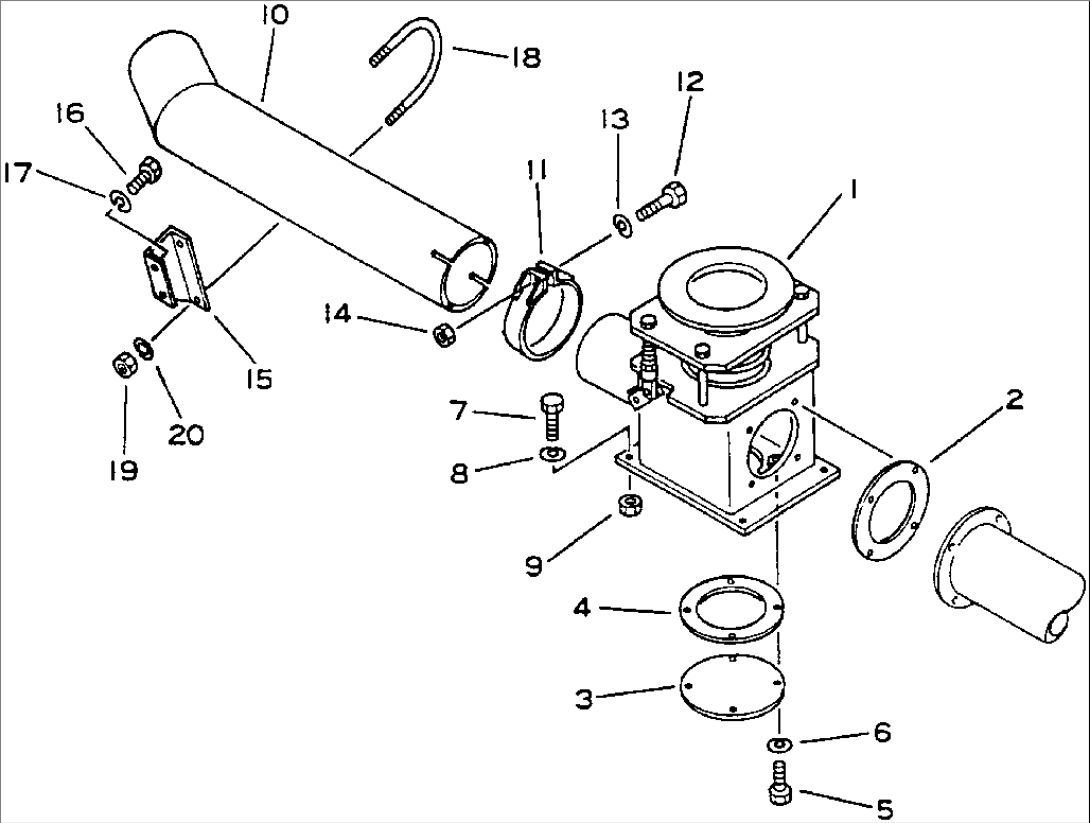

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (566-02-11101) | BOX ASS'Y | 1002- | |
| 2 | 566-02-11980 | PACKING | 1002- | |
| 3 | 566-02-11972 | COVER | 1002- | |
| 4 | 566-02-11980 | PACKING | 1002- | |
| 5 | 01010-51225 | BOLT | 1002- | |
| 6 | 01602-21236 | WASHER | 1002- | |
| 7 | 01010-51435 | BOLT | 1002- | |
| 8 | 01602-21442 | WASHER | 1002- | |
| 9 | 01580-11411 | NUT | 1002- | |
| 10 | 561-02-31160 | TUBE | 1002- | |
| 11 | 566-02-11890 | BAND | 1002- | |
| 12 | 01010-51030 | BOLT | 1002- | |
| 13 | 01602-21030 | WASHER | 1002- | |
| 14 | 01580-11008 | NUT | 1002- | |
| 15 | 561-02-11180 | BRACKET | 1002- | |
| 16 | 01010-51225 | BOLT | 1002- | |
| 17 | 01602-21236 | WASHER | 1002- | |
| 18 | 568-02-11230 | U-BOLT | 1002- | |
| 19 | 01580-11008 | NUT | 1002- | |
| 20 | 01602-21030 | WASHER | 1002- |
