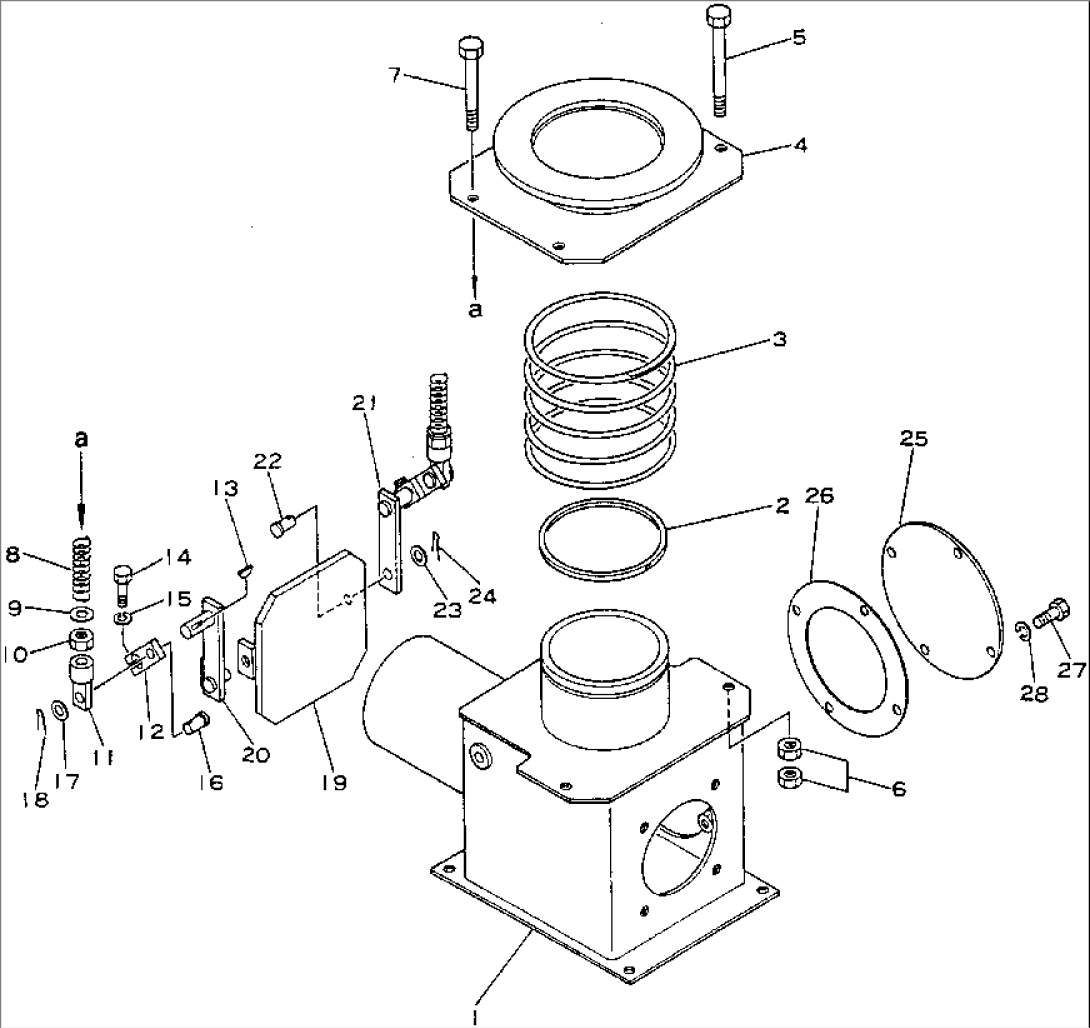

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-02-11101 | BOX ASS'Y | 1002- | ||
| 1 | 566-02-11664 | BOX | 1002- | |
| 2 | 569-02-11170 | RING | 1002- | |
| 3 | 566-02-11740 | SPRING | 1002- | |
| 4 | 566-02-11753 | FLANGE | 1002- | |
| 5 | 01011-51470 | BOLT | 1002- | |
| 6 | 01580-11411 | NUT | 1002- | |
| 7 | 01011-51420 | BOLT | 1002- | |
| 8 | 566-02-11450 | SPRING | 1002- | |
| 9 | 01643-31445 | WASHER | 1002- | |
| 10 | 01580-11411 | NUT | 1002- | |
| 11 | 566-02-11460 | LEVER | 1002- | |
| 12 | 566-02-11721 | LEVER | 1002- | |
| 13 | 04010-00519 | KEY | 1002- | |
| 14 | 01010-50830 | BOLT | 1002- | |
| 15 | 01602-20825 | WASHER | 1002- | |
| 16 | 04205-11438 | PIN | 1002- | |
| 17 | 01641-21423 | WASHER | 1002- | |
| 18 | 04050-11438 | PIN | 1002- | |
| 19 | 566-02-11672 | SHUTTER | 1002- | |
| 20 | 566-02-11470 | LEVER | 1002- | |
| 21 | 566-02-11480 | LEVER | 1002- | |
| 22 | 04205-11428 | PIN | 1002- | |
| 23 | 01641-21423 | WASHER | 1002- | |
| 24 | 04050-04022 | PIN | 1002- | |
| 25 | 566-02-11972 | COVER | 1002- | |
| 26 | 566-02-11980 | PACKING | 1002- | |
| 27 | 01010-51225 | BOLT | 1002- | |
| 28 | 01602-21236 | WASHER | 1002- |
