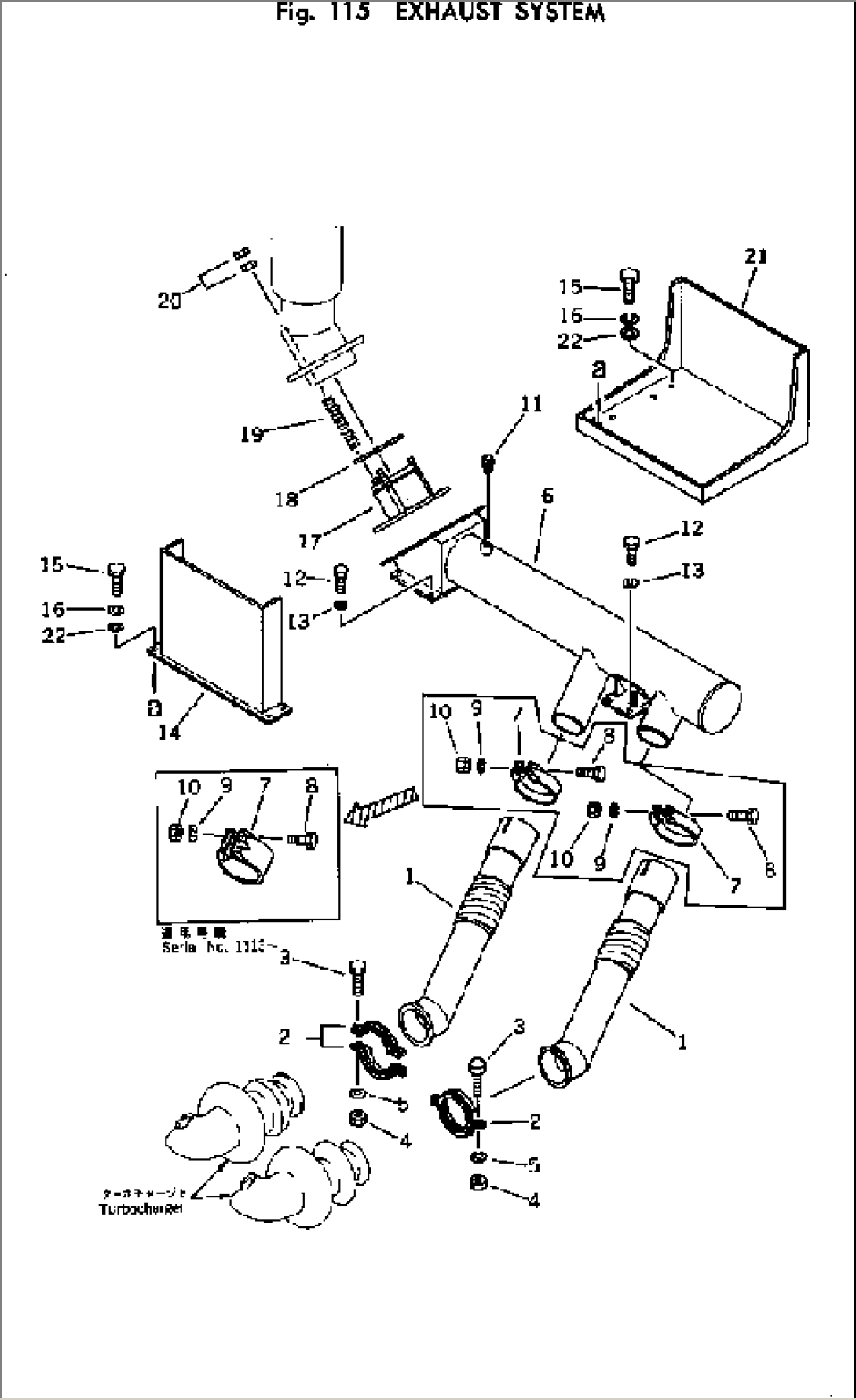

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-02-41111 | TUBE | 1102- | |
| 2 | 6685-11-5591 | BAND | 1102- | |
| 3 | 01010-50845 | BOLT | 1102- | |
| 4 | 01580-10806 | NUT | 1102- | |
| 5 | 01602-20825 | WASHER | 1102- | |
| 6 | 569-02-41132 | TUBE | 1102- | |
| 7 | 569-02-41310 | BAND | 1113- | |
| 7 | \0\561-02-11130 | BAND | 1102-1112 | |
| 8 | 01010-51030 | BOLT | 1113- | |
| 8 | 01010-51030 | BOLT | 1102-1112 | |
| 9 | 01602-21030 | WASHER | 1113- | |
| 9 | 01602-21030 | WASHER | 1102-1112 | |
| 10 | 01580-11008 | NUT | 1113- | |
| 10 | 01580-11008 | NUT | 1102-1112 | |
| 11 | 07042-00108 | PLUG | 1102- | |
| 12 | 01010-51225 | BOLT | 1102- | |
| 13 | 01602-21236 | WASHER | 1102- | |
| 14 | 569-02-41270 | COVER | 1102- | |
| 15 | 01010-51225 | BOLT | 1102- | |
| 16 | 01602-21236 | WASHER | 1102- | |
| 17 | 569-02-41140 | TUBE | 1102- | |
| 18 | 569-02-11170 | RING | 1102- | |
| 19 | 562-13-16750 | SPRING | 1102- | |
| 20 | 01580-11411 | NUT | 1102- | |
| 21 | 569-02-41290 | PAN | 1102- | |
| 22 | 01643-31232 | WASHER | 1102- |
