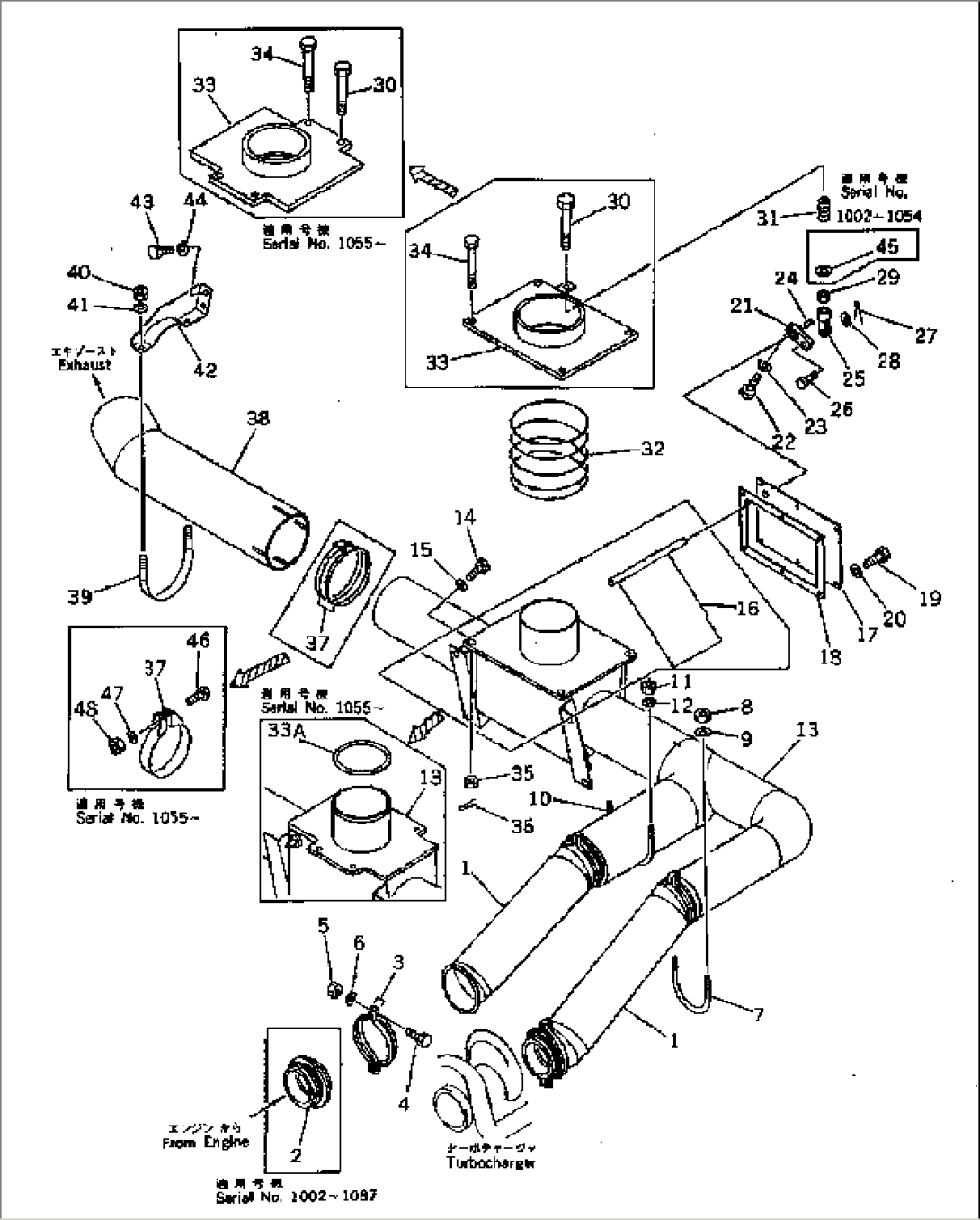

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-02-21240 | TUBE | 1088- | |
| 568-02-21210 | TUBE | 1002-1087 | ||
| 2 | 568-02-21220 | ADAPTER | 1002-1087 | |
| 3 | 6685-11-5591 | BAND | 1002- | |
| 4 | 566-02-11640 | BOLT | 1002- | |
| 5 | 566-02-11650 | NUT | 1002- | |
| 6 | 01602-20825 | WASHER | 1002- | |
| 7 | 391-02-17350 | U-BOLT | 1002- | |
| 8 | 01598-01011 | NUT | 1002- | |
| 9 | 01643-31032 | WASHER | 1002- | |
| 10 | 568-02-11230 | U-BOLT | 1002- | |
| 11 | 01598-01011 | NUT | 1002- | |
| 12 | 01643-31032 | WASHER | 1002- | |
| 568-02-21100 | BOX ASS'Y | 1055- | ||
| 568-02-00010 | BOX ASS'Y | 1002-1054 | ||
| 13 | 568-02-21111 | BOX | 1055- | |
| 568-02-21110 | BOX | 1002-1054 | ||
| 14 | 01010-51635 | BOLT | 1002- | |
| 15 | 01602-21648 | WASHER | 1002- | |
| 16 | 566-02-11670 | SHUTTER | 1002-1054 | |
| 17 | 566-02-11970 | PLATE | 1055- | |
| 566-02-11680 | COVER | 1002-1054 | ||
| 18 | 566-02-11780 | PACKING | 1055- | |
| 566-02-11690 | PACKING | 1002-1054 | ||
| 19 | 01010-51016 | BOLT | 1055- | |
| 566-02-11710 | BOLT | 1002-1054 | ||
| 20 | 01602-21030 | WASHER | 1055- | |
| 01602-21236 | WASHER | 1002-1054 | ||
| 21 | 566-02-11720 | LEVER | 1055- | |
| 566-02-11720 | LEVER | 1002-1054 | ||
| 22 | 01010-50830 | BOLT | 1055- | |
| 01010-50830 | BOLT | 1002-1054 | ||
| 23 | 01602-20825 | WASHER | 1055- | |
| 01602-20825 | WASHER | 1002-1054 | ||
| 24 | 04010-00519 | KEY | 1055- | |
| 04010-00519 | KEY | 1002-1054 | ||
| 25 | 566-02-11840 | LEVER | 1055- | |
| 566-02-11840 | LEVER | 1002-1054 | ||
| 26 | 04205-01438 | PIN | 1055- | |
| 04205-01438 | PIN | 1002-1054 | ||
| 27 | 04050-04022 | PIN | 1055- | |
| 04050-04022 | PIN | 1002-1054 | ||
| 28 | 01641-01423 | WASHER | 1055- | |
| 01641-01423 | WASHER | 1002-1054 | ||
| 29 | 01580-11411 | NUT | 1055- | |
| 01580-11411 | NUT | 1002-1054 | ||
| 30 | 01011-51405 | BOLT | 1055- | |
| 01011-51405 | BOLT | 1002-1054 | ||
| 31 | 566-02-11850 | SPRING | 1055- | |
| 566-02-11850 | SPRING | 1002-1054 | ||
| 32 | 566-02-11740 | SPRING | 1002- | |
| 33 | 568-02-21130 | FLANGE | 1055- | |
| 566-02-11751 | FLANGE | 1002-1054 | ||
| 33A | 569-02-11170 | RING | 1055- | |
| 34 | 01011-51460 | BOLT | 1055- | |
| 566-02-11760 | BOLT | 1002-1054 | ||
| 35 | 01580-11411 | NUT | 1055- | |
| 566-02-11830 | NUT | 1002-1054 | ||
| 36 | 04050-03028 | PIN | 1002-1054 | |
| 37 | 566-02-11890 | BAND | 1055- | |
| 07281-01789 | CLAMP | 1002-1054 | ||
| 38 | 566-02-11792 | TUBE | 1002- | |
| 39 | 566-02-11930 | BAND | 1002- | |
| 40 | 01580-11008 | NUT | 1002- | |
| 41 | 01602-21030 | WASHER | 1002- | |
| 42 | 568-02-21120 | BRACKET | 1002- | |
| 43 | 01010-51225 | BOLT | 1002- | |
| 44 | 01602-21236 | WASHER | 1002- | |
| 45 | 01641-01423 | WASHER | 1002-1054 | |
| 46 | 01010-51025 | BOLT | 1055- | |
| 47 | 01602-21030 | WASHER | 1055- | |
| 48 | 01580-11008 | NUT | 1055- |
