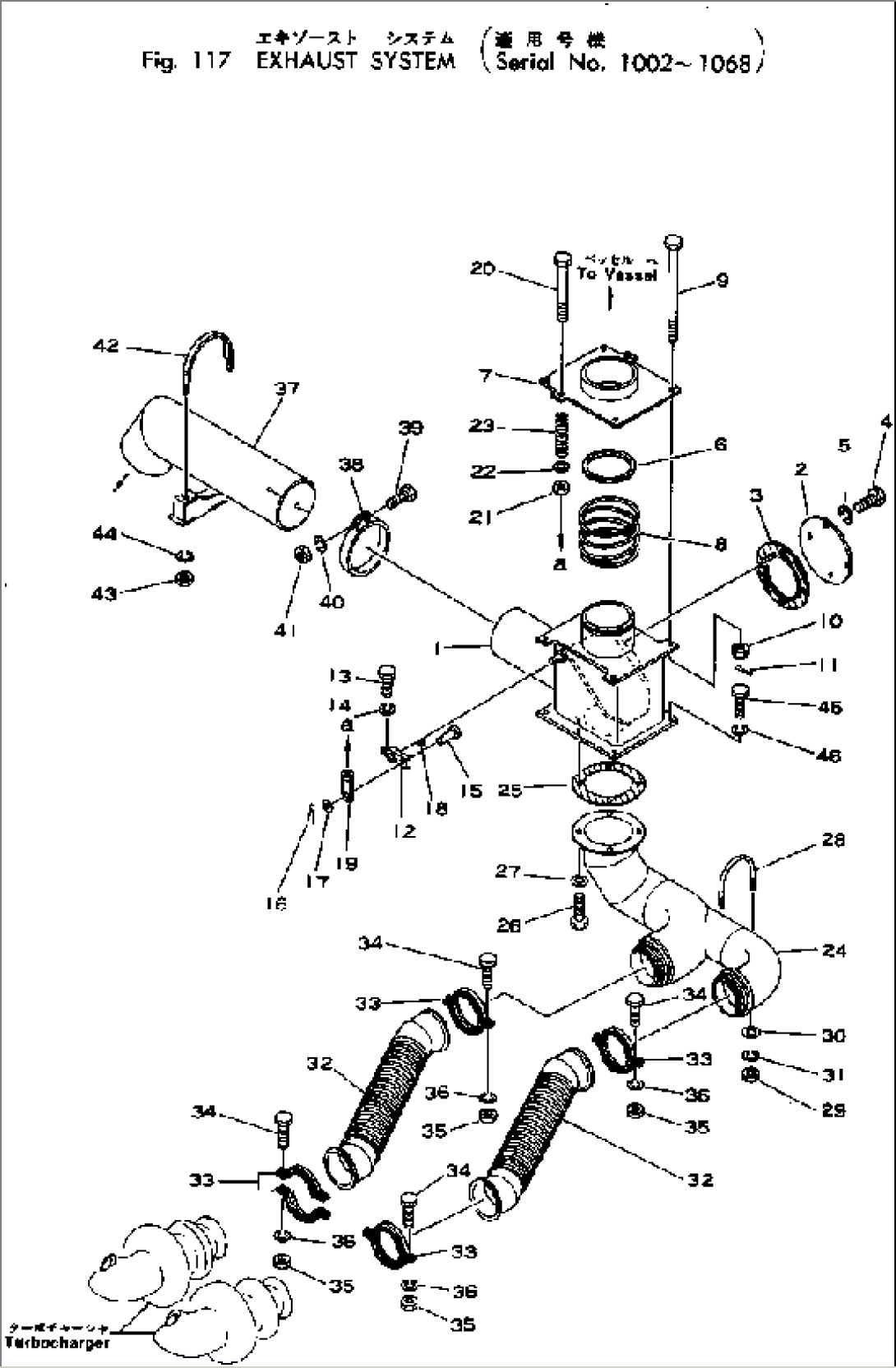

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-02-11100 | EXHAUST BOX ASS'Y | 1002-1068 | ||
| 1 | 569-02-11111 | EXHAUST BOX ASS'Y | 1002-1068 | |
| 2 | 569-02-11131 | COVER | 1002-1068 | |
| 3 | 569-02-11160 | PACKING | 1002-1068 | |
| 4 | 566-02-11950 | BOLT | 1002-1068 | |
| 5 | 01602-21236 | WASHER | 1002-1068 | |
| 6 | 569-02-11170 | RING | 1002-@ | |
| 7 | 569-02-11120 | FLANGE | 1002-1068 | |
| 8 | 566-02-11740 | SPRING | 1002-@ | |
| 9 | 01013-51455 | BOLT | 1002-1068 | |
| 10 | 01590-11416 | NUT | 1002-1068 | |
| 11 | 04050-03022 | PIN | 1002-1068 | |
| 12 | 566-02-11720 | LEVER | 1002-1068 | |
| 13 | 01010-50830 | BOLT | 1002-@ | |
| 14 | 01602-20825 | WASHER | 1002-@ | |
| 15 | 04205-11438 | PIN | 1002-1068 | |
| 16 | 04050-14022 | PIN | 1002-1068 | |
| 17 | 01641-21423 | WASHER | 1002-@ | |
| 18 | 04010-00519 | KEY | 1002-@ | |
| 19 | 566-02-11840 | LEVER | 1002-1068 | |
| 20 | 01010-51495 | BOLT | 1002-1068 | |
| 21 | 01580-11411 | NUT | 1002-@ | |
| 22 | 01641-21423 | WASHER | 1002-1068 | |
| 23 | 566-02-11850 | SPRING | 1002-1068 | |
| 24 | 569-02-11210 | TUBE | 1002-1068 | |
| 25 | 566-02-11980 | PACKING | 1069-@ | |
| 25 | \0\569-02-11160 | PACKING | 1002-1068 | |
| 26 | 01010-51235 | BOLT | 1069-@ | |
| 26 | \0\566-02-11950 | BOLT | 1002-1068 | |
| 27 | 01602-21236 | WASHER | 1002-1068 | |
| 28 | 391-02-17350 | U-BOLT | 1002-@ | |
| 29 | 01580-11008 | NUT | 1002-@ | |
| 30 | 01643-31032 | WASHER | 1002-@ | |
| 31 | 01602-21030 | WASHER | 1002-@ | |
| 32 | 569-02-11220 | TUBE | 1002-@ | |
| 33 | 6685-11-5591 | BAND | 1002-@ | |
| 34 | 01010-50845 | BOLT | 1069-@ | |
| 34 | \0\566-02-11640 | BOLT | 1002-1068 | |
| 35 | 01580-10806 | NUT | 1069-@ | |
| 35 | \0\566-02-11650 | NUT | 1002-1068 | |
| 36 | 01602-20825 | WASHER | 1002-@ | |
| 37 | 566-02-11792 | TUBE | 1002-1068 | |
| 38 | 566-02-11890 | BAND | 1002-@ | |
| 39 | 01010-51030 | BOLT | 1002-@ | |
| 40 | 01602-21030 | WASHER | 1002-@ | |
| 41 | 01580-11008 | NUT | 1002-@ | |
| 42 | 566-02-11930 | BAND | 1002-@ | |
| 43 | 01580-11008 | NUT | 1002-@ | |
| 44 | 01602-21030 | WASHER | 1002-@ | |
| 45 | 01010-51430 | BOLT | 1002-@ | |
| 46 | 01602-21442 | WASHER | 1002-@ |
