| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09495-00000 | FIRE EXTINGUISHER | 20001- | |
| 2 | 424-968-1210 | BRACKET | 20001- | |
| 3 | 01010-80620 | BOLT | 20001- | |
| 4 | 01643-30623 | WASHER | 20001- | |
| 5 | 07283-33442 | CLIP | 20001- | |
| 6 | 01597-01009 | NUT | 20001- | |
| 7 | 01643-31032 | WASHER | 20001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 1 s/n 10001 up
- Frame and guard
- Extinguisher(#20001 )
Поиск по каталогу

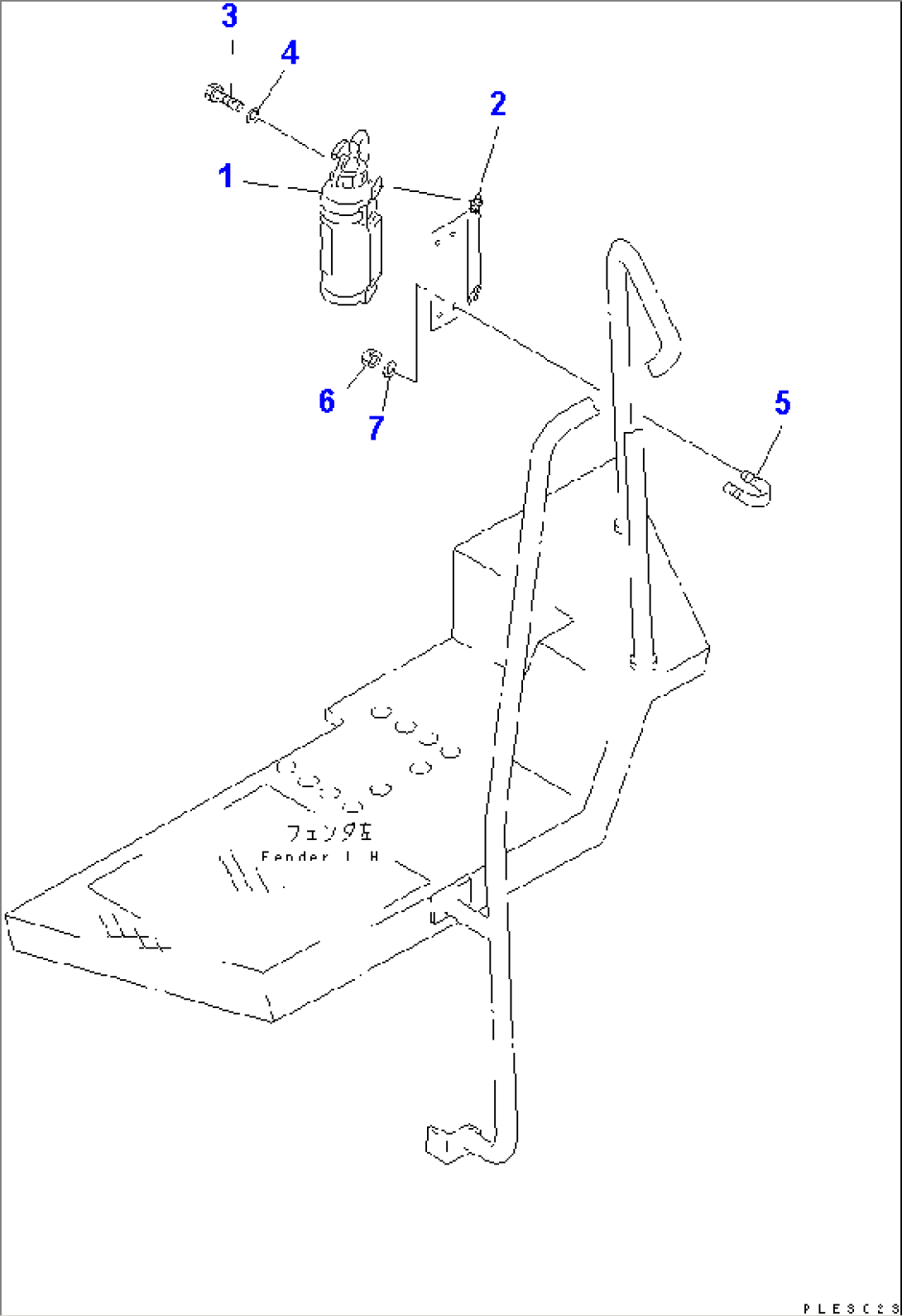

EXTINGUISHER(#20001-)
