| Item | Part No. | Part Name | Qty | Serial No. |

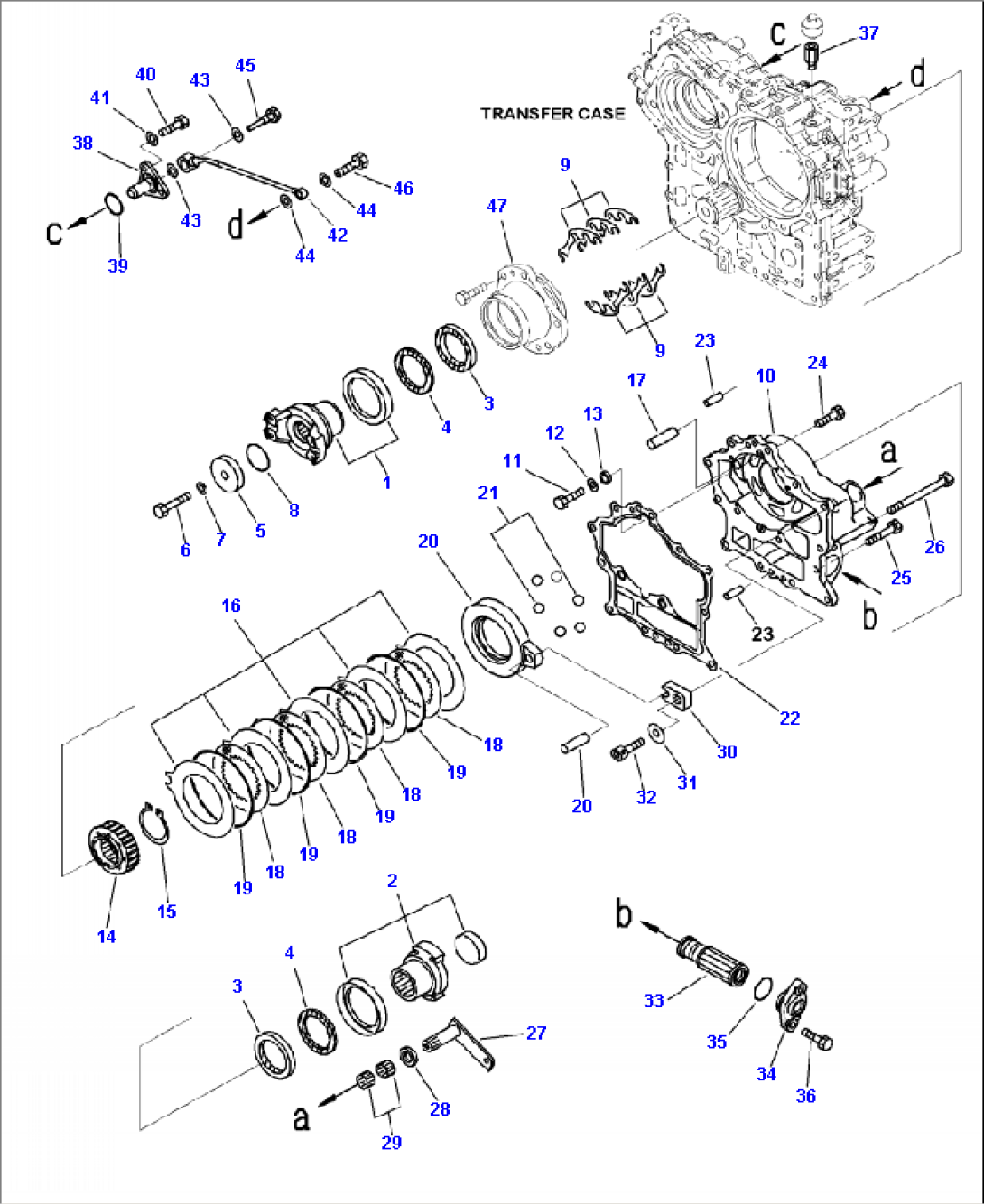

| TRANSFER ASSEMBLY (SEE FIG. F2420-51A0) | A76001-- | |||
| TRANSFER ASSEMBLY (SEE FIG. F2420-51A0) | A76001-- | |||
| 1 | 418-17-33312 | COUPLING, COMPLETE | A76001-- | |
| (NSS) | COUPLING | A76001-- | ||
| (NSS) | COVER | A76001-- | ||
| 2 | 418-17-33320 | COUPLING, COMPLETE | A76001-- | |
| (NSS) | COUPLING | A76001-- | ||
| (NSS) | COUPLING | A76001-- | ||
| (NSS) | COVER | A76001-- | ||
| (NSS) | COVER | A76001-- | ||
| 3 | 07012-50075 | SEAL | A76001-- | |
| 4 | 419-15-13660 | SEAL | A76001-- | |
| 5 | 423-22-11240 | HOLDER | A76001-- | |
| 6 | 01010-61680 | BOLT | A76001-- | |
| 7 | 01643-31645 | WASHER | A76001-- | |
| 8 | 07000-72055 | O-RING | A76001-- | |
| 9 | 418-17-33420 | SHIM, 0.05 MM | A76001-- | |
| 418-17-33430 | SHIM, 0.20 MM | A76001-- | ||
| 418-17-33440 | SHIM, 0.50 MM | A76001-- | ||
| 10 | 418-17-38116 | HOUSING | A76001-- | |
| 11 | 01010-80816 | BOLT | A76001-- | |
| 12 | 01643-30823 | WASHER | A76001-- | |
| 13 | 418-17-38160 | SPACER | A76001-- | |
| 14 | 418-17-38210 | HUB | A76001-- | |
| 15 | 04064-06020 | RING | A76001-- | |
| 16 | 418-17-38221 | PLATE | A76001-- | |
| 17 | 418-17-38170 | PIN | A76001-- | |
| 18 | 418-17-39710 | DISC | A76001-- | |
| 19 | 56D-15-12710 | SPRING | A76001-- | |
| 20 | 418-17-38522 | PISTON | A76001-- | |
| 21 | 714-11-18340 | BALL | A76001-- | |
| 22 | 418-17-38134 | GASKET | A76001-- | |
| 23 | 04020-01228 | PIN | A76001-- | |
| 24 | 01010-81235 | BOLT | A76001-- | |
| 25 | 01010-81285 | BOLT | A76001-- | |
| 26 | 01011-81255 | BOLT | A76001-- | |
| 27 | 418-17-38142 | LEVER | A76001-- | |
| 28 | 714-11-19810 | SEAL | A76001-- | |
| 29 | 06120-02520 | BEARING | A76001-- | |
| 30 | 418-17-38150 | LEVER | A76001-- | |
| 31 | 714-09-16282 | WASHER | A76001-- | |
| 32 | 01252-30816 | BOLT | A76001-- | |
| 33 | 124-15-51740 | MAGNET ASSEMBLY | A76001-- | |
| 34 | 418-17-38120 | COVER | A76001-- | |
| 35 | 07000-73042 | O-RING | A76001-- | |
| 36 | 01010-81235 | BOLT | A76001-- | |
| 37 | 170-21-11190 | NIPPLE | A76001-- | |
| 38 | 418-17-34410 | FLANGE | A76001-- | |
| 39 | 07000-72040 | O-RING | A76001-- | |
| 40 | 01010-81030 | BOLT | A76001-- | |
| 41 | 01643-31032 | WASHER | A76001-- | |
| 42 | 418-17-34420 | TUBE | A76001-- | |
| 43 | 07005-02012 | SEAL | A76001-- | |
| 44 | 07005-01212 | SEAL | A76001-- | |
| 45 | 418-17-34440 | JOINT | A76001-- | |
| 46 | 07206-30812 | BOLT | A76001-- | |
| 47 | CAGE (SEE FIG. F2420-52A0 ) | A76001-- |
