| Item | Part No. | Part Name | Qty | Serial No. |

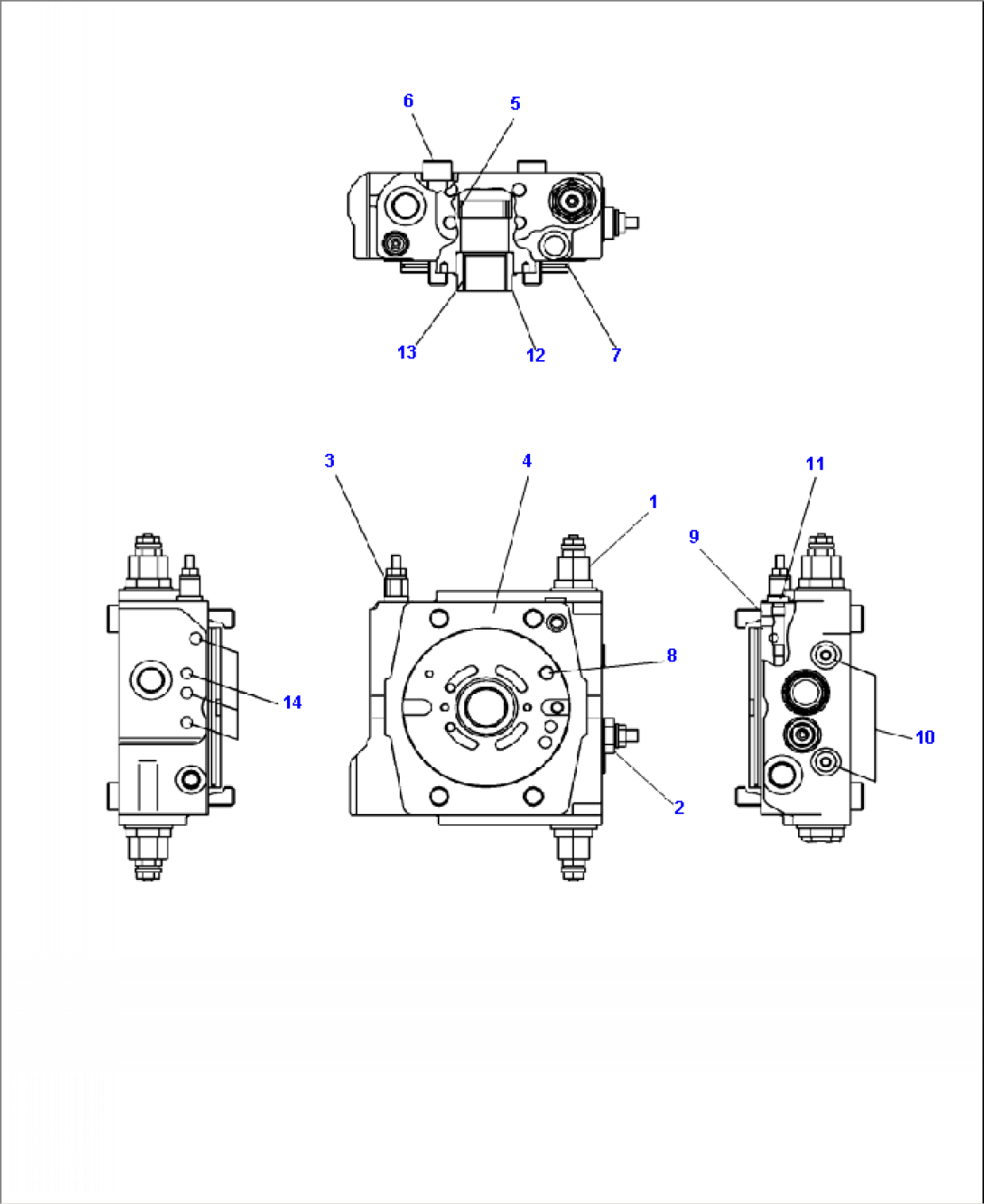

| PUMP, VARIABLE (SEE FIG. F2430-02A0 ) | A76001-- | |||
| UC4100656147 | COVER | A76001-- | ||
| 1 | RELIEF VALVE (SEE FIG. F2430-07A0 ) | A76001-- | ||
| 2 | VALVE (SEE FIG. F2430-08A0 ) | A76001-- | ||
| 3 | CUT-OFF VALVE (SEE FIG. F2430-09A0 ) | A76001-- | ||
| 4 | UC1100656159 | COVER | A76001-- | |
| 5 | UC1704491361 | METAL | A76001-- | |
| 6 | UC1301638009 | BOLT | A76001-- | |
| 7 | UC1303046816 | O-RING | A76001-- | |
| 8 | UC1701539213 | PLUG | A76001-- | |
| 9 | UC1300038005 | O-RING | A76001-- | |
| 10 | UC4100104426 | PLUG | A76001-- | |
| 11 | UC1701516926 | PLUG | A76001-- | |
| 12 | UC1704405379 | BUSHING | A76001-- | |
| 13 | UC1704357904 | METAL | A76001-- | |
| 14 | UC1701538807 | PLUG | A76001-- | |
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBU TORS ONLY. |
