| Item | Part No. | Part Name | Qty | Serial No. |
| PUMP, VARIABLE (SEE FIG. F2430-02A0 ) | A76001-- | |||

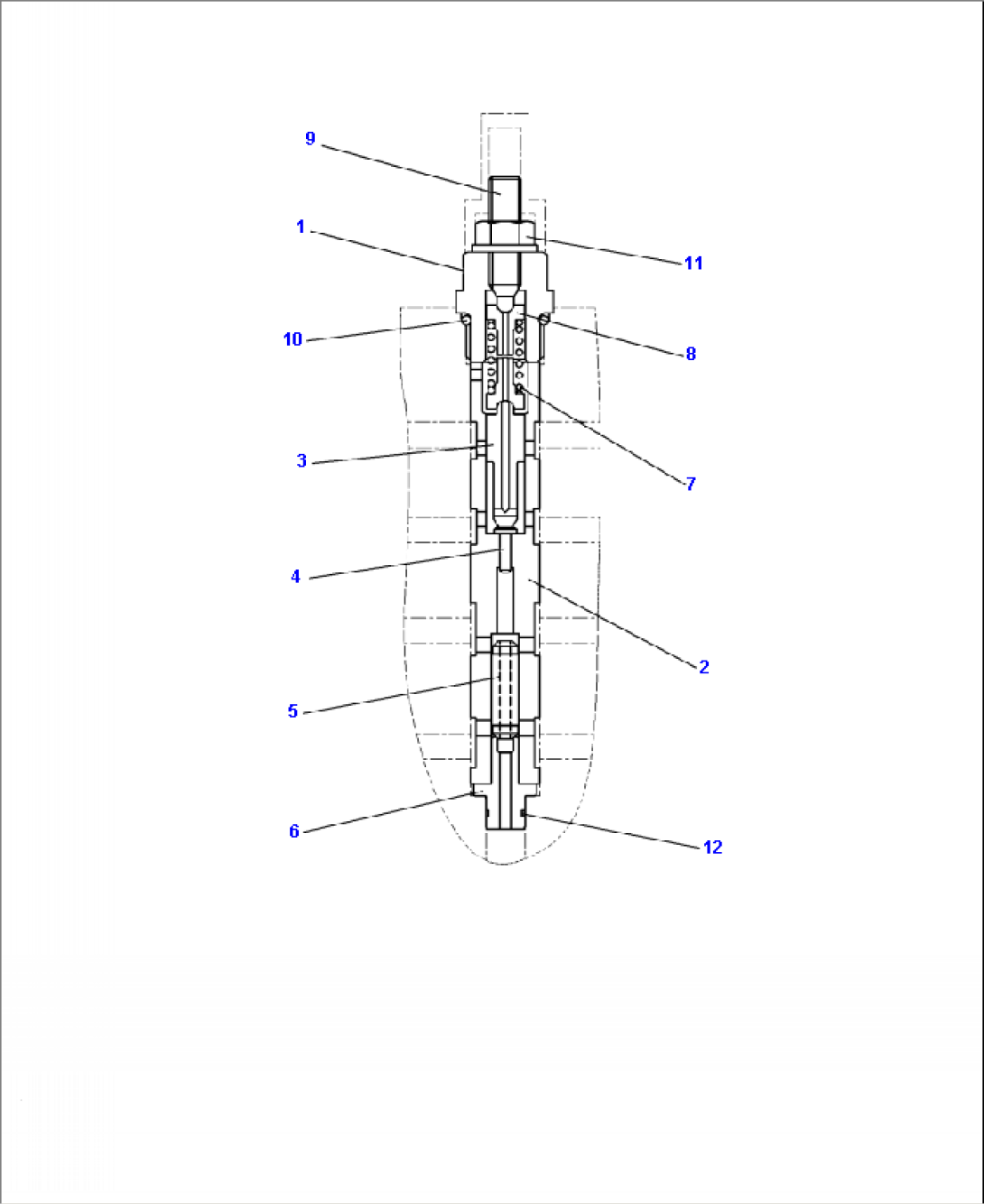

| UC4704373637 | VALVE, CUT-OFF | A76001-- | ||
| 1 | UC1704365693 | PLUG | A76001-- | |
| 2 | UC1704365538 | BARREL | A76001-- | |
| 3 | UC1704321629 | POPPET | A76001-- | |
| 4 | UC1704321639 | PISTON | A76001-- | |
| 5 | UC1704321648 | SPOOL | A76001-- | |
| 6 | UC1704362841 | VALVE SEAT | A76001-- | |
| 7 | UC1720094027 | SPRING | A76001-- | |
| 8 | UC1720430928 | SPRING SEAT | A76001-- | |
| 9 | UC1704321675 | SCREW | A76001-- | |
| 10 | UC1300142003 | O-RING | A76001-- | |
| 11 | UC1701527072 | NUT | A76001-- | |
| 12 | UC1300022009 | O-RING | A76001-- | |
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBU TORS ONLY. |
